Quick Details

• Surface Treatment:

  Shinning Chrome

• Material:

  Aluminium

• Diameter:

  125mm

• No. of Cylinders:

  6

• Size:

  125mm

• Certification:

  ISO9000

• G.W:

  3.0kg

• Engine Type:

  Diesel

• Place of Origin:

  GUANGDONG

• Samples:

  Free

• Delivery Time:

  5

• Packing:

  TPK

• Delivery Port:

  GUANGZHOU

• Max. Production Capacity:

  6000

• Export Ratio:

  41% - 50%

• OE Experience:

  No

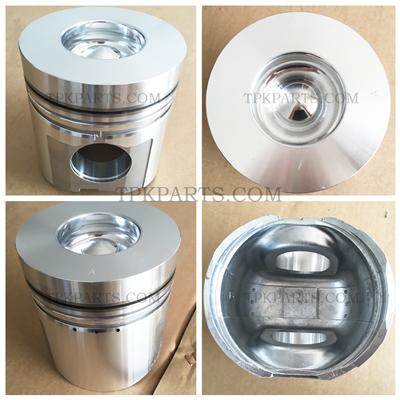

Product Name:S6D125 Piston 6150-32-2110

S6D125 Piston 6150-32-2110

Application

S6D125

Product Description:

OEM No/Model: 6150-32-2110
Piston description:
Diameter
Cyl No.:
Chamber:
Compression height:
Pin :
Ring Grooves:
Cylinder Block 6150-21-1103 1 Bushing, Camshaft 6150-21-1490 7
Cylinder Kit KMP2410 6 Piston Body 6150-32-2110 6 Piston Pin 6150-31-2410 6 Retainer, Piston Pin 04065-04818 12 Piston Ring Set 6150-32-2030 6 Cylinder Liner 6151-22-2220 6 Seal, Liner 6150-21-2250 6 O-Ring, Liner 6150-21-2240 6 O-Ring, Liner 6150-21-2230 6 Seal Kit, Liner KMP-SK-125 6
Cylinder Head 6150-11-1102 6 Valve, Inlet 6150-42-4110 12 Valve, Exhaust 6150-42-4210 12 Collet, In. & Exh. Valve 6136-42-4520 48 Guide, In. & Exh. Valve 6150-12-1370 24 Seal, Valve Guide 6150-41-4570 12 Valve Seat, Inlet 6151-11-1330 12 Valve Seat, Exhaust 6150-11-1320 12 Spring, Valve 6150-41-4450 24 Spring Seat, Upper 6150-41-4510 24 Spring Seat, Lower 6150-41-4430 24 Sleeve, Injector Hole 6136-11-1130 6
Crankshaft 6151-35-1010 1 Seal, Crankshaft Front 6150-21-3230 1 Seal, Crankshaft Rear 6151-21-4161 1 Main & Thrust Assy 6150-21-8000 1 Main Metal Assy Std. 6150-21-8010 7 Main Metal Assy 0.25 6150-29-8010 7 Main Metal Assy 0.50 6150-28-8010 7 Main Metal Assy 0.75 6150-27-8010 7 Main Metal Assy 1.00 6150-26-8010 7 Thrust Metal Std. 6150-21-8050 1 Thrust Metal 0.25 6150-29-8050 1 Thrust Metal 0.50 6150-28-8050 1 Thrust Metal 0.75 6150-27-8050 1 Thrust Metal 1.00 6150-26-8050 1
Connecting Rod 6150-31-3100 6 Conrod Bolt 6150-31-3310 12 Conrod Bushing 6150-31-3130 6 Conrod Metal Std. 6151-31-3040 6 Conrod Metal 0.25 6151-39-3040 6 Conrod Metal 0.50 6151-38-3040 6 Conrod Metal 0.75 6151-37-3040 6 Conrod Metal 1.00 6151-36-3040 6
Camshaft Assy 6150-41-1012 1 Camshaft Gear 6150-41-1120 1 Push Rod 6150-41-3111 12
Injector Assy 6150-12-3200 6 Nozzle 6150-12-3220 6 Fuel line No.1 6150-71-5111 1 Fuel line No.2 6150-71-5121 1 Fuel line No.3 6150-71-5131 1 Fuel line No.4 6150-71-5141 1 Fuel line No.5 6150-71-5151 1 Fuel line No.6 6150-71-5161 1 Fuel line No.1 (Turbo app.) 6150-71-6510 1 Fuel line No.2 (Turbo app.) 6150-71-6520 1 Fuel line No.3 (Turbo app.) 6150-71-6530 1 Fuel line No.4 (Turbo app.) 6150-71-6540 1 Fuel line No.5 (Turbo app.) 6150-71-6550 1 Fuel line No.6 (Turbo app.) 6150-71-6560 1 Feed Pump, Fuel ND092100-1602 1 Feed Pump, Fuel ND092100-2030 1
Water Pump Assy 6151-62-1103 1 Thermostat 600-421-6630 1
Oil Pump 6150-51-1004 1 Element, Oil Cooler 6150-61-2111 1 Element, Oil Cooler (Turbo app.) 6151-61-2111 1
Gasket Kit, Cyl. Head 6153-K1-9900 1 Gasket Kit, Cyl. Block 6153-K2-9900 1 Gasket Kit, Water Pump 6155-K6-9900 1 Gasket, Cylinder Head 6150-12-1810 6 Gasket, Valve Cover 6150-11-8810 6 Gasket, Exh. Manifold 6150-11-5810 6 Gasket, Oil Pan 6150-21-5812 1 Gasket, T/Stat Hsg. 6210-61-6441 1 Gasket, Intake Manifold 6150-13-4810 6
Turbocharger 6150-81-8300 1
Filter, Oil (Cartridge) 600-211-1291 1 Filter, Fuel (Cartridge) 600-311-8321 1
