OEM No/Model: 4900955
China A2300 Cylinder Head Gasket Kit 4900955
A2300 Cylinder Head Gasket Kit 4900955
Product Description
Specification For A2300 GASKET KIT
Item name: | A2300 Cylinder Head Gasket Kit 4900955 |
Engine: | A2300 |
Oem No: | 4900955 |
Material: | Graphite/Metal/Interface/N-8092/N-8094 |
Moq: | 20 Sets For Ex-stocks, 100 Sets for Production |
Delivery: | 1-3 Days for Ex-stocks,30 days for production |
Packing: | TPK or according to your requirements |
Other Parts: | Piston Ring, Piston Ring Set,Ring Piston |
Cylinder Liner, Cylinder Sleeve | |
Liner Kit, Piston Kit. Piston Sets | |
Our Other cms engine models
(1): 4BT,4BT3.9,4BTA,6BT,6BT5.9,6BTA,6BTA5.9,
(2): 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3
(3): 6L,L375,NH220,N14,NTA14,L10,LT10,
(4): NT855,NTA855,NTC,K19,KTA19,KTAA19,K38,KTA38,KTAA38
(5): ISBE, ISB3.9,ISB5.9, ISB6.7,ISCE,ISDE,ISDE107,
(6): M11,ISM,ISM11,QSM, ISF2.8,ISF3.8
(7): ISL,ISLE,ISL340,ISL375,L375,T375,ISLE375,
(8): QSB,QSB6.7,QSC,QSL,ISX,QSX,ISX15,QSX15
our other cms engine parts:
1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger
CMS V903, 14.8L 8
DieselCylinder
903 CID Stroke
Bore 5.500
4.750
CYLINDER KIT
Stroke
Bore 5.500
4.750
CYLINDER KIT
8 AR11909-F Cylinder kit 15.5:1 CR, heavy pin [3037413 piston, 215390 pin, 155267 ret, AR11930 rings, 203170 liner]
8 3023475-F Cylinder kit 16.5:1 CR, heavy pin [3037414 piston, 215390 pin, 155267 ret, AR11930 rings, 203170 liner]
8 AR11928-F Cylinder kit 15.5:1 CR, light pin [3037413 piston, 140120 pin, 155267 ret, AR11930 rings, 203170 liner]
8 3019287-F Piston kit 15.5:1 CR, heavy pin [3037413 piston, 215390 pin, 155267 ret]
8 3020083-F Piston kit 16.5:1 CR, heavy pin [3037414 piston, 215390 pin, 155267 ret]
8 AR11929-F Piston kit 15.5:1 CR, light pin [3037413 piston, 140120 pin, 155267 ret]
8 3037413-F Piston body 15.5:1
8 3037414-F Piston body 16.5:1
8 215390-F Piston pin Heavy, 0.70 ID
8 140120-F Piston pin Light, 1.00 ID
16 155267-F Retainer piston pin
8 AR11930-F Ring set [1 cyl]
8 AR8069-F Cylinder liner kit [203170 liner, 3044795 crevice seal, (2) 3032874 seal]
8 203170-F Cylinder liner
8 3044795-F Cylinder liner oring Crevice seal
16 3032874-F Liner oring oring
BEARINGS
1 AR3640-F Bearing main set Std, includes thrust washers
1 AR3641-F Bearing main set .010, includes thrust washers
1 AR3642-F Bearing main set .020, includes thrust washers
1 AR3643-F Bearing main set .030, includes thrust washers
4 159960-B Thrust washer Std
16 189770-F Bearing rod half Std
16 189771-F Bearing rod half .010
16 189772-F Bearing rod half .020
16 189773-F Bearing rod half .030
8 189763-F Bushing con rod
2 200780-F Bearing cam
3 200790-F Bearing cam
GASKET & SEALS
1 3013497-F Set upper Gaskets for both heads
1 3014458-F Set lower
2 3013498-F Set cylinder head for 1 head
2 212224-F Gasket cylinder head
2 3028673-F Gasket valve cover
2 3026315-F Gasket rocker hsg
6 3028665-F Gasket manifold exhaust
1 196949-F Gasket oil pan
1 3020184-F Seal crankshaft front
1 3021094-F Seal crankshaft front LH
1 3006740-F Sleeve crankshaft front
1 218539-F Seal crankshaft rear
1 3016660-F Seal crankshaft rear LH
1 3006741-F Sleeve crankshaft rear
CAMSHAFT
1.2:1 Rocker Ratio; CPL: 112, 130, 136, 148, 151, 169, 192, 262, 301
199180-F Camshaft
TPK DIESEL PARTS CUM903-1 3/4/2010 (86)-20 37380256
CMS
Diesel
903 CID
V903, 14.8L
(Continued)
8 Cylinder
Stroke
Bore 5.500
4.750
2292308-CL Camshaft 1 1:1 Ratio injector rocker levers [215580]
1:1 Rocker Ratio; CPL: 186, 203, 247, 257, 273, 286, 287, 301, 321, 340, 350, 352, 383, 389, 430, 496
169351-F Push rod 16 Valve
3003602-F Push rod 8 Injector
F1 CAM FOLLOWER
152082-F Roller cam 16 Valve
169327-F Pin roller cam 16 Valve
108186-F Lock pin 16 Valve
213061-F Roller cam 8 Injector
213058-F Pin roller cam 8 Injector
108187-B Lock pin 8 Injector
218853-F Socket16
Intake and exhaust valve
213559-F Socket cam follower 8
R1 ROCKER BOX
168306-F Screw rocker lever 8
S212-F Nut rocker lever 8
194037-F Socket lever8 Injector lever
VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
16 3803513-F Valve intake kit [216707 valve, 127554 locks]
16 216707-F Valve intake
16 138887-F Valve exhaust
64 121-1006 Valve lock 2 groove; 0.4330 ID, 0.3720 length, 2 round [127554]
16 146731-F Valve spring outer
16 146732-F Valve spring inner
32 146733-F Valve spring retainer
32 138937-F Valve guide
32 156541-F Valve stem seal
16 212217-F Valve insert Intake
16 212940-F Valve insert Intake and Exhaust
26 209700-F Bolt cylinder head 6.25 length, most SC, 4-valve head
10 214751-F Bolt cylinder head long
1 186348-F Oil cooler Tube bundle 14-5/8 x 5
1 3021581-F Oil cooler Tube bundle 12-1/2 x 5
1 209865-F Gasket oil cooler
1 187608-F Gasket oil cooler
2 3007713-F Seal oil cooler
1 3006745-F Retainers
INJECTOR Injector New or remanufactured available, call for pricing
8 3070486-F Injector sleeve
8 3007759-F Injector sleeve oring
24 193736-F Oring injector (repl 101754)
1 3034218-B Gear fuel pump 3/4 inch, LH standard (new# 3034244)
1 3034220-B Gear fuel pump 1 inch, LH standard (new# 3034246)
1 3034236-B Gear fuel pump 1 inch, LH standard, non-ressurized
1 110855-F Gasket fuel pump Body
OIL / LUBE SYSTEM
FUEL / INJECTOR
COOLING SYSTEM
1 WP670-PR Water pump Remanufactured; 3-belt pulley, cast 196960 [AR5664]
1 135675-F Thermostat 170 degree, vented
TPK DIESEL PARTS CUM903-1 3/4/2010 (86)-20 37380256
CMS V903, 14.8L 8
DieselCylinder
903 CID Stroke
Bore 5.500
4.750
(Continued)
Stroke
Bore 5.500
4.750
(Continued)
1 186780-F Seal thermostat
1 3390118-F Water pump kit
1 3054160-F Shaft water pump
1 70183-F Retainers
1 3002483-F Impeller
1 3029099-F Seal water pump Impeller side, seal and seat (repl AR12732)
1 3017034-F Bearing water pump
1 3017035-F Bearing water pump

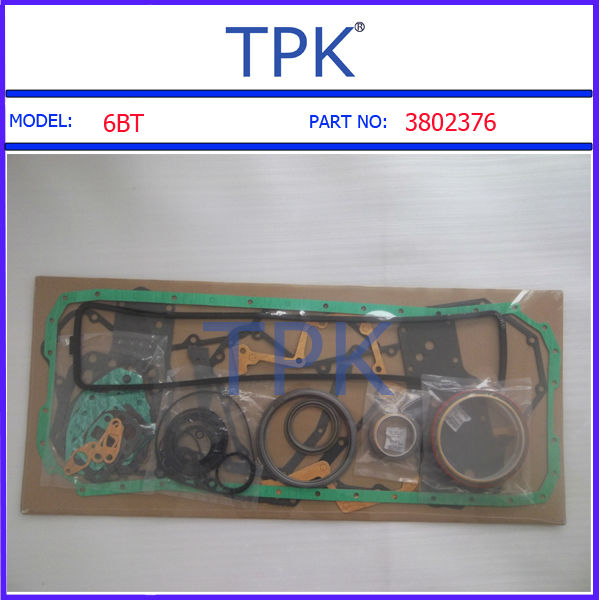

PARTS SHOW FOR CMS GASKET KIT

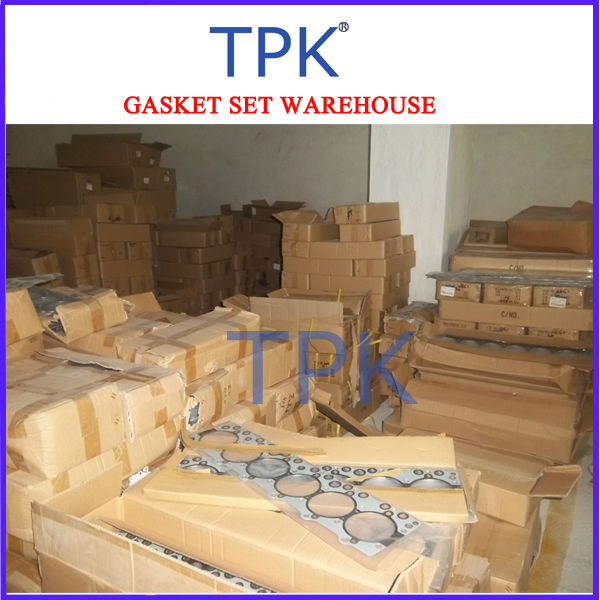

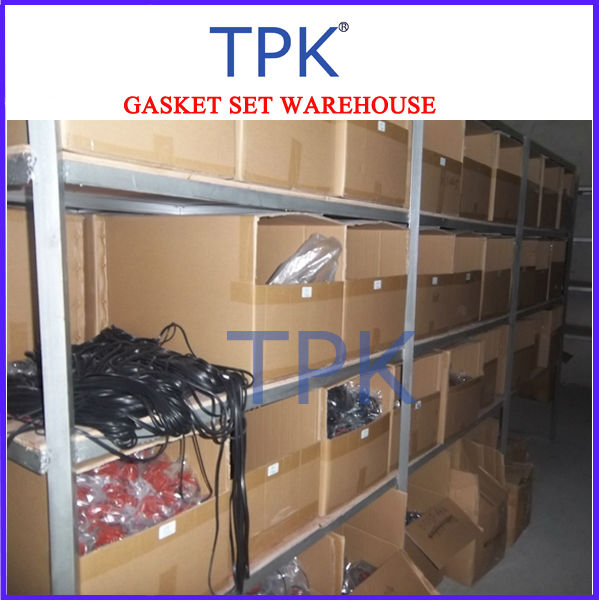

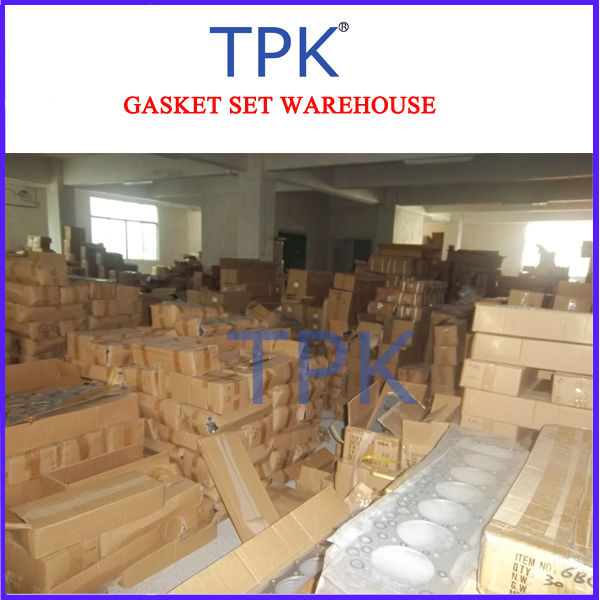

FACTORY WORKSHOP AND INTRODUCTION
Packaging & Shipping
Packing:
(1): TPK packing
(2): according to your requirments
Shipping
(1): By sea
(2): By air
(3): By express (DHL, FEDEX, TNT, EMS... )
Our Services1: 24 hours online service by Skype, Msn, Yahoo, QQ...
2: email replaying in 8 hours after got your email.
Company Information
Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines . All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.
Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.
With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
Please contact Guangzhou Tpk Diesel Parts Co. , Ltd. to inquing China A2300 Cylinder Head Gasket Kit 4900955
