NT855 Engine Gasket Kit ,4024919 3801754 3801235 Product Description
Specification For CMS GASKET KIT
Item name: | NT855 Engine Gasket Kit 4024919 3801754 3801235 |
Engine: | NT855 NTA855 NT855-STC |
Oem No: | 4024919 3801754 3801235 |
Material: | Graphite/Metal/Interface/N-8092/N-8094 |
Moq: | 20 Sets For Ex-stocks, 100 Sets for Production |
Delivery: | 1-3 Days for Ex-stocks,30 days for production |
Packing: | TPK or according to your requirements |
Other Parts: | Piston Ring, Piston Ring Set,Ring Piston |
Cylinder Liner, Cylinder Sleeve | |
Liner Kit, Piston Kit. Piston Sets | |
Contact with Us
NT855 NTA855 FULL GASKET KIT

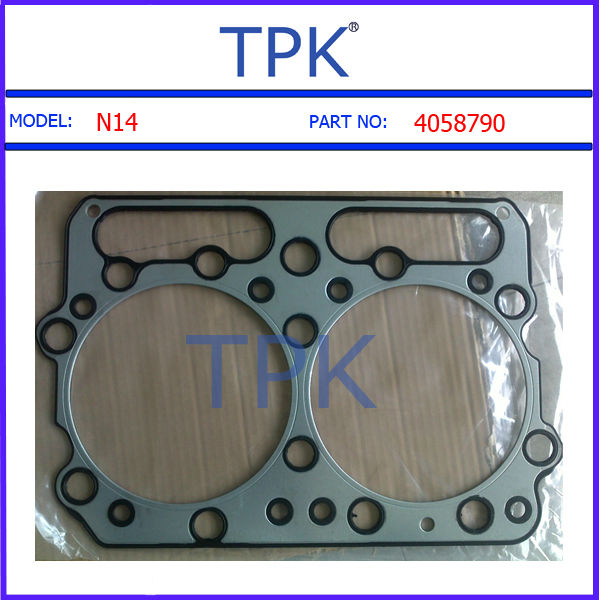

NT855 | GASKET, CYLINDER HEAD | 3040180/3047402/4058790 | |
NT855 | GASKET, UPPER SET | 3801330 | |
NT855 | GASKET, LOWER SET | 3801468 | |
NT855 | GASKET, ROCKER COVER | 3054841 | |
NT855 | GASKET, ROCKER COVER | 3017750 | |
NT855 | FRONT CRANKSHAFT SEAL | 3006736 | |
NT855 | GASKET, OIL PAN PAD | 3032861 | |
NT855 | REAR CRANKSHAFT SEAL | 3006737 | |
NT855 | MAIN BEARING | 3801260 | |
NT855 | CON ROD BEARING | 214950 |
Other gasket kit
L10/LT10 | 4025155 3803404 | 4022500 | Graphite | |
L10/LT10 | 4089478 4089998 | 4022500 | Graphite |
KT19 | 3800728 4089391 | 3628407 | Metal | |
KTA19 | 3803598 3801007 | 3634664 | Metal | |
K38 | 3800730(3803600) 3804301(3801719) | 3634664 | Metal | |
K50 | 3800731(3803601) 3804300(3801717) | 3634664 | Metal |
PARTS SHOW FOR CMS GASKET KIT
CMS 855
Diesel
855 CID
(Continued)
6 Cylinder
Stroke
Bore 5.500
6.000
7074X-BP Idler water pump 1 Reman; Idler pulley with adjusting bracket
88NT
180912 Idler water pump 1 Idler backside, smooth stamped steel [3065000]
88NT
146076-F Thermostat
135675-F Thermostat
160 degree (can use 135675)
170 degree, vented
SC FFC, NH855
204586-F Thermostat 175 degree, non-vented
SC, BCI / II / III
201737-EP Thermostat Thermostat and seal, non-vented, 180F degree [3076489 kit, 201737 thermostat]
SC, BCI / II / III, Early BCIV
3017360-F Thermostat 185 degree, non-vented
181839 Thermostat Actuator style, 173F degree [3064453, 3039394]
BCIV
181841 Thermostat Actuator style, 187F degree [3064455, 3061500, 3039395]
BCIV
186780-F Seal thermostat [186780]
All but late BCIV
70441-F Gasket thermostat Housing to manifold
Non FFC
208128-F Gasket thermostat For single thermostat
SC & BC FFC
3040056-F Gasket thermostat 1
BCIV
3024709-F Seal water manifold 6
3063618-F Seal water manifold 6
Manifold to block
Manifold to block, restrictor
BCIV
70624-F Oring water manifold 4 Manifold coupling
212161-F Oring water tube 2 Water transfer tube
3050667-F Oring water tube 6 Water transfer tube
BCIV
43463A-F Oring water tube 2
214836-F Aftercooler 1
Water bypass tube
Single pass, with flange
SC
3411460-F Aftercooler 1 3 pass, crossbolt [repl 3068724]
BC
3801611 Aftercooler 1 Crossbolt
BCIV
PGC205-F Set aftercooler 1 Use with 214836 cooler
PGC206-F Set aftercooler 1 Use with 3068724 cooler
216486-F Gasket aftercooler 2
195952-F Seal aftercooler 4
TURBO / AIR
TURBO TURBOCHARGER
3069177-F Gasket turbo mtg 1
114753-F Gasket turbo mtg 1
3010915-F Stud turbo mount 4
TPK DIESEL PARTS
New or remanufactured available, call for pricing
4 bolt
6 bolt
3/8-16 x 1-7/8 x 3/8-24 [3010915 replaces 3006289, 107709, 100992]
(800) 467-5545CUM855-1 6/2/2014
CMS 855 6
DieselCylinder
855 CID Stroke
Bore 5.500
6.000
(Continued)
3010914-EP Nut turbo mounting 4 3/8-24 [3010914; replaced by 3056158]
202994-F Hose turbo 1
208326-F Clamp turbo hose 2
CLEM Manifold exhaust kit 1 Old style log: 200566 center, 151478 front, 151489 rear (no mounting kit)
3801322-B Manifold exhaust kit 1 Old style, large exhaust ports, 3-pc ring style: 3029614 center, 3031187 front, 3031186
rear, with mounting kit
3801915-B Manifold exhaust kit 1 New style, small exhaust ports, pulse slip-fit: 3052859 center, 3053137 front, 3053138
rear, with mounting kit
3801916-B Manifold exhaust kit 1 Ford truck with low forward side mount turbo: 3070424 (3609806) center, 3050688
front, 3053138 rear, with mounting kit
200566-F Manifold exhaust 1 Center, log type
3020943-F Gasket manifold exhaus 6 4 valve head
S155-B Bolt manifold exhaust 7/16-14 x 1-1/2 [S155, S-155]
110266-B Bolt manifold exhaust 7/16-14 x 4 [110266]
3067930-EP Bolt manifold exhaust 12
3043647-F Bolt manifold exhaust 7/16-14 x 3-7/16 inch [3043647; replaces 3031124, 3017745]
used with Pulse manifold
116982-F Lock plate manifold Exhaust, two-bolt
114638-F Lock plate Single bolt
3008591-F Gasket manifold intake 3
216487-F Gasket air crossover 1 Aftercooler to turbo
BLOCK
Stroke
Bore 5.500
6.000
(Continued)
3010914-EP Nut turbo mounting 4 3/8-24 [3010914; replaced by 3056158]
202994-F Hose turbo 1
208326-F Clamp turbo hose 2
CLEM Manifold exhaust kit 1 Old style log: 200566 center, 151478 front, 151489 rear (no mounting kit)
3801322-B Manifold exhaust kit 1 Old style, large exhaust ports, 3-pc ring style: 3029614 center, 3031187 front, 3031186
rear, with mounting kit
3801915-B Manifold exhaust kit 1 New style, small exhaust ports, pulse slip-fit: 3052859 center, 3053137 front, 3053138
rear, with mounting kit
3801916-B Manifold exhaust kit 1 Ford truck with low forward side mount turbo: 3070424 (3609806) center, 3050688
front, 3053138 rear, with mounting kit
200566-F Manifold exhaust 1 Center, log type
3020943-F Gasket manifold exhaus 6 4 valve head
S155-B Bolt manifold exhaust 7/16-14 x 1-1/2 [S155, S-155]
110266-B Bolt manifold exhaust 7/16-14 x 4 [110266]
3067930-EP Bolt manifold exhaust 12
3043647-F Bolt manifold exhaust 7/16-14 x 3-7/16 inch [3043647; replaces 3031124, 3017745]
used with Pulse manifold
116982-F Lock plate manifold Exhaust, two-bolt
114638-F Lock plate Single bolt
3008591-F Gasket manifold intake 3
216487-F Gasket air crossover 1 Aftercooler to turbo
BLOCK
6 3013591-EP Piston cooling nozzle Includes oring [3013591]
MISC
180905 1 Accessory drive Assembly, iron cast housing [3005133]
3008947-F 1 Seal shaft keyway L-shaped
2190397 1
3004316-F 1
3020185-F
Sleeve pulley wear
Seal accessory drive
Seal accessory drive
Small shaft 1.5-inch [190397]
For small shaft 1.5, in front gear cover
Seal with dust seal; in front gear cover
Option
132770-F 1 Bushing accessory driv For small shaft 1.5, in front gear cover
3069101-F 1 Gasket accessory drive Accessory drive mounting, paper
3076225-EP Gasket accessory drive Accessory drive mounting, edge molded [3076225]
Option
116391-F 1 Bushing accessory driv Drive housing
TPK DIESEL PARTS CUM855-1 6/2/2014 (86)-20 37380256
FACTORY WORKSHOP AND INTRODUCTION
Packaging & Shipping
Packing:
(1): TPK packing
(2): according to your requirments
Shipping
(1): By sea
(2): By air
(3): By express (DHL, FEDEX, TNT, EMS... )
Our Services1: 24 hours online service by Skype, Msn, Yahoo, QQ...
2: email replaying in 8 hours after got your email.
Payment
(1): TT (30 % in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash
Company Information
Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines . All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

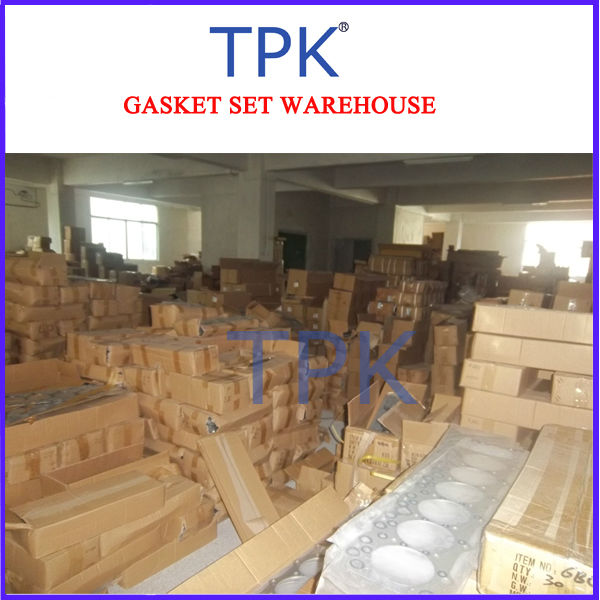

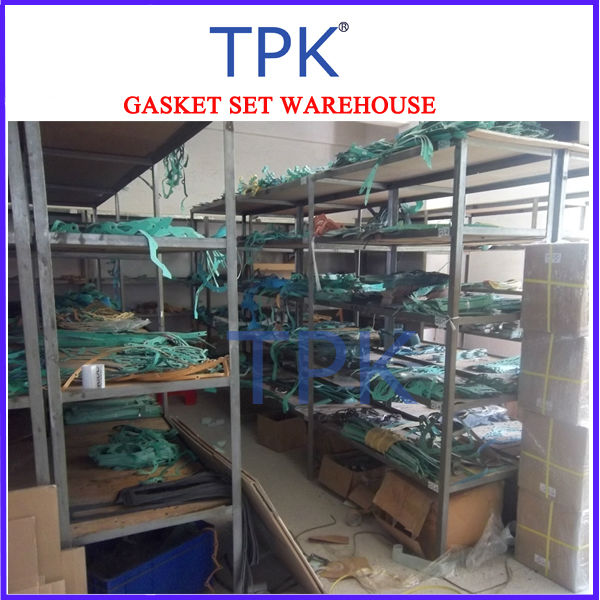

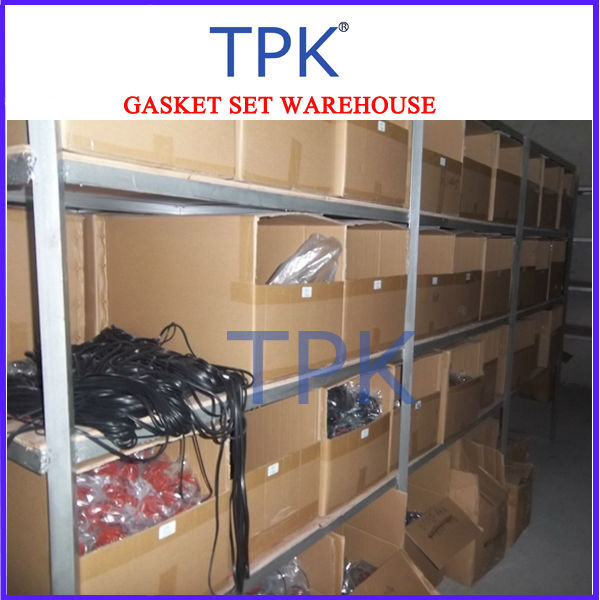

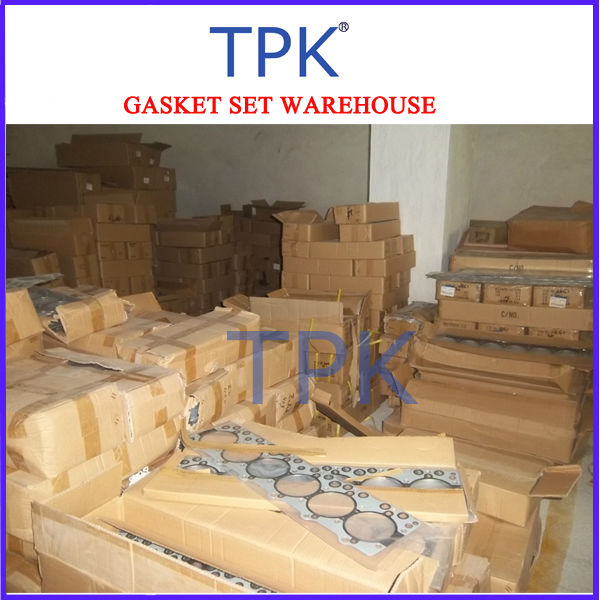

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.
With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
Our company's main engine parts for Ex-stocks as followings:
1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger
