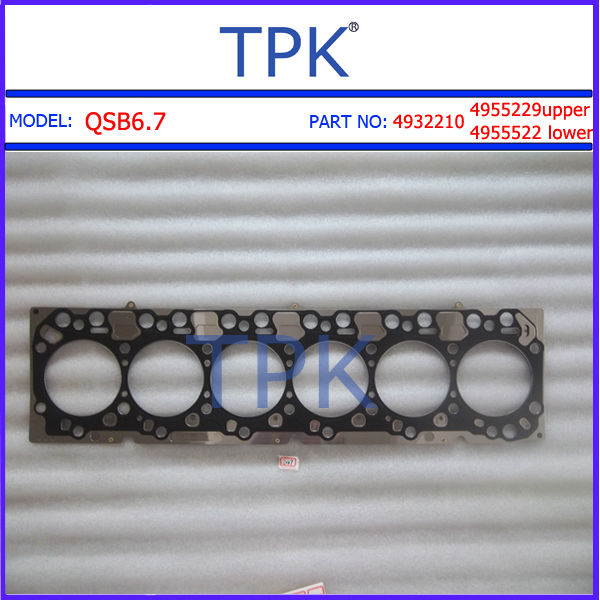

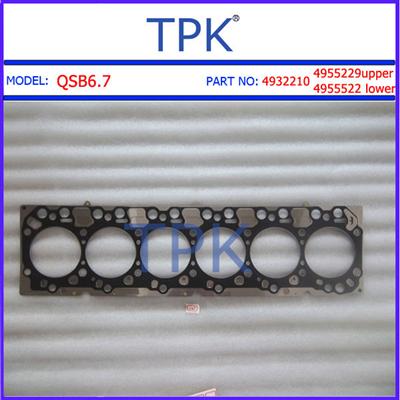

Product Name:QSB, QSB6.7 Engine Gasket Kit, 4955229 4955522

QSB, QSB6.7 Engine Gasket Kit, 4955229 4955522

Application

all

Product Description:

  QSB, QSB 6.7 Engine Gasket Kit, 4955229 4955522 Product Description

  Specification For   QSB, QSB 6.7 GASKET KIT

Contact with Us

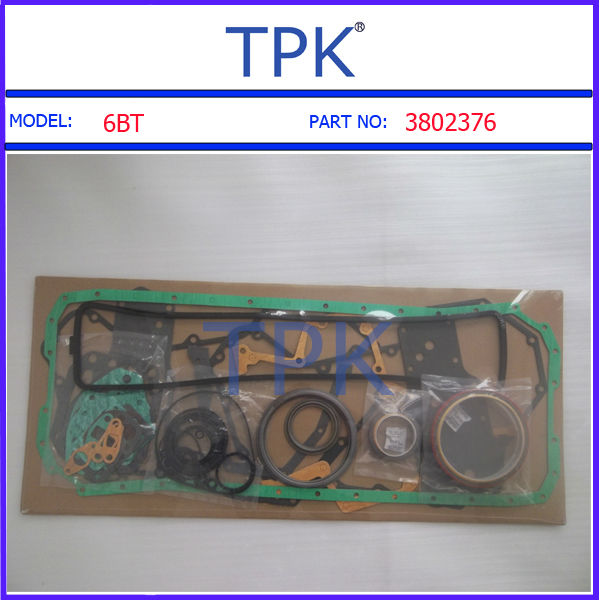

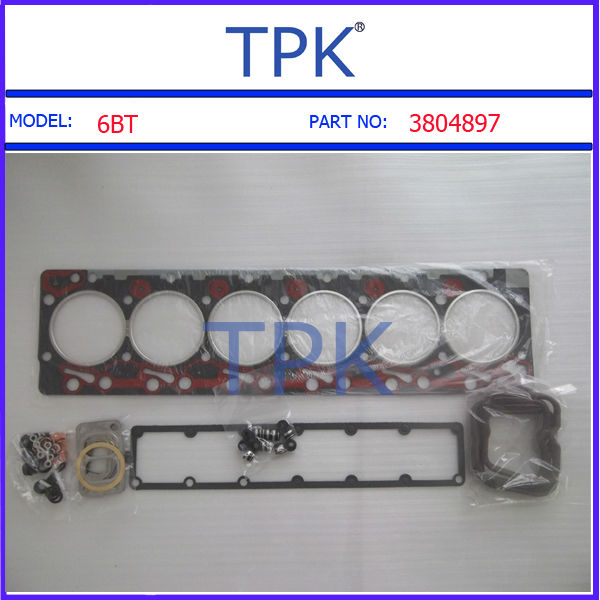

PARTS SHOW FOR CMS GASKET KIT

CMS 6BT ISB 5.9
Diesel
359 CID; 24 valve head; 1998.5-2002: VP44; 2003-2007:
(Continued)
6 Cylinder
Stroke
Bore 102mm
120mm
4890833-EP Seal crankshaft rear 1 Unitized assembly, dry housing [4890833]
HPCR injection system: rear gear train
3906081-EP Sleeve crank seal 1 Rear, speedi sleeve (use with 3934486, 4089342, 3909410 seals) [3906081]
3912473-F Ring rear seal 1 Seal rectangular ring; flywheel hsg
3928493-F Gasket rear cover 1 [Replaced by 4947667, 3938158; replaces 3914386]
with VP44 injection system
3957492-B Gasket rear cover 1 [replaces 3946532]
with HPCR injection system: front gear train
CAMSHAFT
3942567R Camshaft 1 Remanufactured [3942567]
3942565-F Lifter 12 Mechanical
with VP44 injection system
3947759-F Lifter 12 Mechanical
with HPCR injection system
192133 Pushrod 12 [3941253]

VALVE TRAIN
CYLHEAD NOTE For complete and bare cylinder heads - Refer to Cylinder Head Catalog or Call with casting
02014 Valve intake 12 1.299 head dia, 4.907 length, 0.2756 stem dia, 30 degree, 1G, chrome plated stem
[3940735 valve, 3802924 kit, 5011879AA]
02015 Valve exhaust 12 1.299 head dia, 4.893 length, 0.2756 stem dia, 45 degree, 1G, chrome plated stem
[3940734 valve, 3802967 kit, 5011877AA]
13006 Valve exhaust 12 1.299 head dia, 4.893 length, 0.2756 stem dia, 45 degree, 1G, chrome plated stem,
letter 'N' [3979602 valve, 4955212 kit, 68002737AA]
Encore
3940123-F Valve lock 48 CMS ISB/QSB
4936080-F Valve spring 24 1.880 free length [repl 3943161]
3942095 Valve spring 24 1.730 free length
3943198-F Retainer valve spring 24
122-1335 Seal valve stem 12 Intake, Yellow, Positive type, viton material, clad style [3942989, 3942571, 5011881AA]
CDC: ISB, QSB-VP44 to esn 46239409
122-1370 Seal valve stem 12 Intake, Yellow, Top hat style [3955393, 5086861AA]
CDC: ISB, QSB-VP44 esn 46239409 and up; Intake and Exhaust ISB4 (North Am) esn 21564458 Up, ISBe4 / ISB6 (exc North Am) esn
21561274 Up
122-1334 Seal valve stem 12 Exhaust, Green, Positive type, viton material, clad style [3945438, 3942572,
5011880AA]
CDC: ISB, QSB-VP44 to esn 46239409
122-1371 Seal valve stem 12 Exhaust, Green, Top hat style [3955394, 5086862AA]
CDC: ISB, QSB-VP44 esn 46239409 and up
140-3021 Valve guide 12 Intake, 0.2776 ID, 0.5015 OD, 1.937 length; replacement for OEM integral guide with
single flange, seal boss length 0.360
140-3033 Valve guide 12 Intake, 0.2780 ID, 0.5015 OD, 1.937 length; dual flange on guide, seal boss length
0.334
140-3080 Valve guide 12 Intake, 0.2775 ID, 0.4395 OD, 1.937 length; dual flange on guide, seal boss length
0.334, optional OD
140-3022 Valve guide 12 Exhaust, 0.2776 ID, 0.5015 OD, 2.020 length; replacement for OEM integral guide with
single flange, seal boss length 0.360

TPK DIESEL PARTS CUM359-2 6/2/2014 (86)-20 37380256


6 Cylinder

CMS 6BT ISB 5.9

Bore 102mm

Diesel
(Continued)

Stroke 120mm

359 CID; 24 valve head; 1998.5-2002: VP44; 2003-2007:

12 140-3034 Valve guide Exhaust, 0.2780 ID, 0.5015 OD, 2.020 length; dual flange on guide, seal boss length

0.334
12 140-3081 Valve guide Exhaust, 0.2775 ID, 0.4395 OD, 2.020 length; dual flange on guide, seal boss length
0.334, optional OD
12 SB1375E-1 Valve insert Intake, 1.100 ID, 1.3750 OD, 0.2270 Depth, OEM replacement (availalbe in .010 O/S)
12 SB1375E-2N Valve insert Exhaust, 1.100 ID, 1.375 OD, 0.2270 Depth, OEM replacement (availalbe in .010 O/S)

[3942299]
26 3927063-EP Bolt cylinder head M12 x 1.75-130 [3927063]
1 3164057-F Gauge head bolt used to check the cylinder head bolt length for stretching beyond the point of reuse
[replaces 3825140]

CRANKSHAFT
3944243-Q Crankshaft 1 Assembly, includes front gear, speed indicator ring [3944243 assy, 3944204 assy,
3941199 crank, 3942441 ring, 3929027 gear]
with VP44 injection system
4980462-B Crankshaft 1 Assembly [4980462, 3972764; Crank: 3978482, 3964040, 3946437; Gear: 3949357,
3965389]
with HPCR injection system: Front gear train
3929027-F Gear crankshaft 1
with VP44 injection system
AP63453 Crank sensor 1 [4921601]
with VP44 injection system: 1998-2003
CONNECTING ROD

3942581-EP 6
3971212RX 6
171633 6
Connecting rod
Connecting rod
Connecting rod
New assembly, machine straight cut [3942581, 3925232, 3901569, 3901568]
Remanufactured, fracture split (Can only be mixed with rod 3954658) [3971212
replaces 3954658; 3971211, 3954657]
New assembly, fracture split, single dimple cap, smooth side [4898808, 4891176,
4891177]
4943979-B 6 Connecting rod New assembly, fracture split, three dimple cap, bump or bulge side [4943979, 4943978]
3900919 12 Bolt connecting rod Used with machine straight cut rods
4891179-F 12 Bolt connecting rod Used with fracture split rods
OIL / LUBE SYSTEM

1 3937404-EP Oil pump With helical gear [4939587, 3937404, 3941742, 3926203, 3924720, 3918212,
3914008, 3914006, 3906414, 3903337, 3901175]

with VP44 pump (to MY2002)

1 4988801 Oil pump [OEM] [replaces 3973398, 3957266, 3947308]
with HPCR injection system: front gear train (MY2003-07)

1 4939588-G Oil pump With straight cut spur gear [4939588, 3971544]

with HPCR injection system: rear gear train

3957544-EP Oil cooler 1 Includes gaskets 3942914/3926760 and 3942915 [3957544; replaces 3921558,
3942010, 3918293, 3911940, 3903375, 3902372]
with VP44 injection system

1 3959031-B Oil cooler [replaces 4896407]
with HPCR injection system
1 3926760-F Gasket oil cooler Core to block [New# 3942914; replaces 3929791, 3918256, 3914387, 3904427,

3903318]
with VP44 injection system

TPK DIESEL PARTS CUM359-2 6/2/2014 (86)-20 37380256


CMS 6BT ISB 5.9
Diesel
359 CID; 24 valve head; 1998.5-2002: VP44; 2003-2007:
(Continued)
6 Cylinder
Stroke
Bore 102mm
120mm
3942915-F Gasket oil cooler 1 Core to filter housing, with window
with VP44 injection system
GS33485-CL Set oil cooler 1 Liquid elastomeric molded (LEM) [3977913 set; 2830559 gsk core to block, 3974127
gsk filter head; 5179064AA set]
with HPCR injection systerm [replaces 4895742 and 3864458 in set only]
4895742-B Gasket oil cooler 1 Core to block (foamet edge molded rubber) [replaces 3966601, 3955046, 4896408]
with HPCR injection system; NOTE: must use only with 3864458 / 3947413 gasket [09T7-30]
3864458-B Gasket oil cooler 1 Core to filter housing (foamet edge molded rubber) [replaces 3947413]
with HPCR injection system; NOTE: must use only with 4895742 / 3955046 gasket [09T7-30]
FUEL / INJECTOR
INJECTOR Injector New or remanufactured available, call for pricing
0432-193-646-H Injector 6 ISB 175HP [3944205, 3944206]ISB 175HP [3944205, 3944206]
0432-193-645-H Injector 6 ISB 190HP [3944200, 3944201]
0432-193-647-H Injector 6 ISB 210/215HP [3944197, 3944198]
0432-193-630-H Injector 6 ISB 215HP [3944829, 3944831, 3943929]
0432-193-648-H Injector 6 ISB 230HP [3944194, 3944195]
0432-193-629-H Injector 6 ISB 235HP [3944828, 3944830, 3943928, 3943988]
0432-193-581-H Injector 6 ISB 245HP [3946306, 3946307]
0432-193-649-H Injector 6 ISB 250HP [3944191, 3944192]
0432-193-635-H Injector 6 ISB 275HP [3944183, 3944184]
0986-435-503-090Injector6
Remanufactured, Bosch common rail [4940589, 0445-120-113]
Dodge Ram: 2003 to 2004.5; Mid-Range Truck, Bus: 2003-2007
0986-435-505-H Injector 6 Remanufactured, Bosch common rail [4940051, 4940052]
Dodge Ram: 2004.5 to 2007
3906659-F Injector washer 6 Copper seal for 7mm injector tip, 1.50mm thickness [3920174, 3906659]
3930324-F Injector washer 6 Copper seal for injector tip, 0.55mm thickness [3930324]
3937142-B Injector washer 6 Copper seal, 1.5mm thickness [3937142]
3029820-F Seal injector 6 Injector oring seal, with VP injection pump [3029820]
121319 Seal injector 6 For common rail [4890926]
F00ZR20002 Injector tube 6 Injector connector tube [3944833, 3936953]
For VP44 pump
3867043-F Seal injector tube 6 Injector connector tube seal ring [3867043; repl 3882589]
F00RJ01572 Injector tube 6 Injector connector tube [3979419, 3976656, 3947538]
For common rail to MY 2006
4062328-F Seal injector tube 6 Injector connector tube seal ring
IPVR11XR-P Injection pump 1 Remanufactured, VP44 [3766670, R5011041AB, R5013925AA, 0 470 506 022]
1998-2000: Ram 235HP
IPVR15XR-P Injection pump 1 Remanufactured, VP44 [3937671, R5019658AD, 0 470 506 027]
2001-2002: Ram 235HP
IPVR17XR-P Injection pump 1 Remanufactured, VP44 [3937670, R5019657AD, 0 470 506 028]
2002: Ram 245HP
IPVR16XR-P Injection pump 1 Remanufactured, VP44 [3937672, 3964555, 0 470 506 029]
1998-2002: Mid-Range

TPK DIESEL PARTS CUM359-2 6/2/2014 (86)-20 37380256


CMS 6BT ISB 5.9
Diesel
359 CID; 24 valve head; 1998.5-2002: VP44; 2003-2007:
(Continued)
6 Cylinder
Stroke
Bore 102mm
120mm
0986-437-304-090Injection
pump 1 Remanufactured, High pressure injection pump CP3 [0 445 020 039, 3964009,
3972815, 5143425AA]
2003-06 Ram Pickup
0986-437-307-090Injection
pump 1 Remanufactured, High pressure injection pump CP3 [0 445 020 015, 3965090]
2003-06 Mid-Range
3910503-F Oring inj pump mtg 1 [New# 3935032] [repl 3930993]
For VP44 pump
121350 Oring inj pump mtg 1 [3949688]
For CP3 pump (Common rail)
AP4943048 Fuel transfer pump 1 ISB engine equipped with VP44 Injection Pump [3990082, 3990105]
AP4089602 Fuel transfer pump 1 ISB equipped with Common Rail [4089602 and 3969705 (hose)]
180106 Fuel transfer pump 1 [4935005, 3949085, 3939894, 3990071]
AP63458 Sensor APPS 1 Sensor only (Does NOT include bracket and lever) for AP63428, AP63427
AP63428 Sensor APPS 1 APPS: Accelerator pedal position sensor, automatic transmission, VP44 inj pump
[53031575AH, 3970084]
1998-2003
AP63427 Sensor APPS 1 APPS: Accelerator pedal position sensor, manual transmission, VP44 inj pump
[53031576AD, 3970085]
1998-2003
COOLING SYSTEM
3286278-G Water pump 1 Water pump 3285414 with sealing ring 3906698 [repl 3802923, 3285410, 3285415]
with VP44 injection pump
3800984-G Water pump 1 Hardened pulley, Brown phenolic impeller; 4891252 pump with seal ring [3800984,
4891252, 4892174, 4892175, 4089142, 2881805, 3959229, 3949889, 5263174,
87803065, 2852114]
With HPCR injection pump
3906698-EP Seal water pump 1 [3906698, 3903297]
3029099-F Seal water pump 1 Impeller side, seal and seat (repl AR12732)
3967195-EP Thermostat kit 1 3967192 thermostat with 3954829 seal; Jiggle pin, vented, 83C (180F), caged ball
design [3967195; repl 3954194, 3935811, 3943200, 3946116]
1998.5 to 2002
3954830-EP Thermostat 1 3955031 thermostat with 3954829 seal; Jiggle pin, vented, 87C (190F), caged ball
design [3954830 kit]
2003 up
4929644-B Thermostat kit 1 190F degree, vented; 4929643 thermostat, 3954829 seal [repl 3974371 kit (3973835
thermostat, 3954829 seal)]
TURBO / AIR
TURBO TURBOCHARGER New or remanufactured available, call for pricing
3901356-F Gasket turbo mtg 1 [3901356]
with VP44 injection system
3949530-F Gasket turbo mtg 1
with HPCR injection system
3818823-EP Stud 4 Turbo mounting, M10 x 1.50 x 42 [3818823]
3818824-EP Nut4 Turbo mounting; M10 x 1.55 SS [3818824]
3924990 Gasket air intake 1 [repl 3918982]

TPK DIESEL PARTS CUM359-2 6/2/2014 (86)-20 37380256

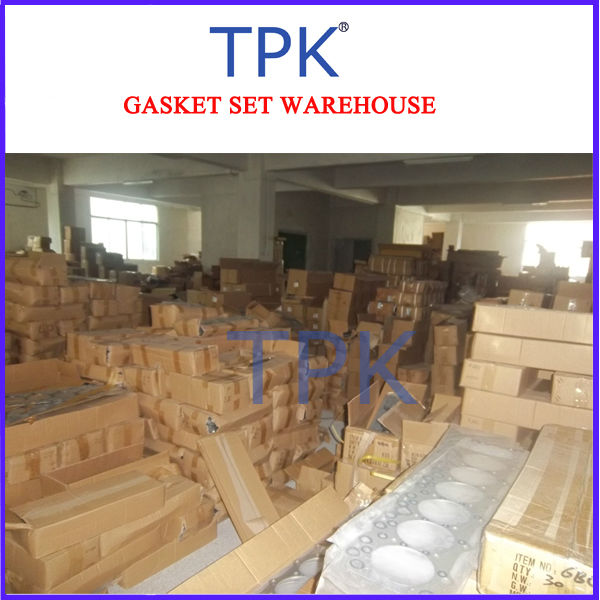

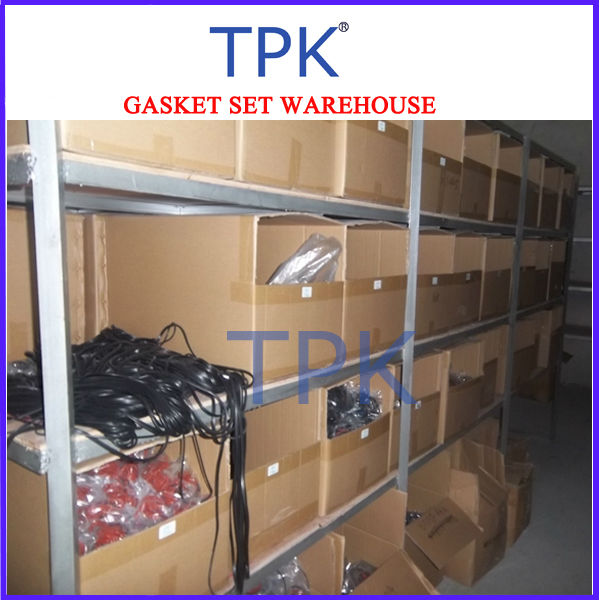

FACTORY WORKSHOP AND INTRODUCTION
