Quick Details

• Supply Ability:

  6000 Set/Sets per Month

• Delivery Details:

  1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION

• Packing:

  TPK OR ACCORDING WITH YOUR REQUIRMENTS

• Delivery Port:

  guangzhou

• OE Experience:

  No

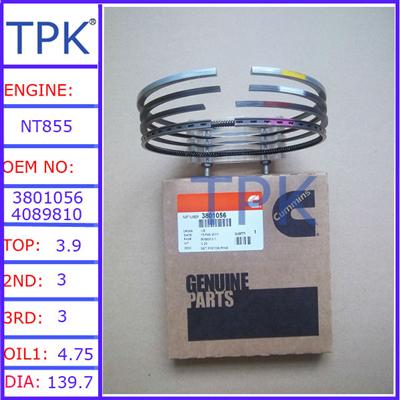

Product Name:NT855 piston ring set, 3801056 4089810

NT855 piston ring set, 3801056 4089810

Application

all

Product Description:

 Product Description

NT855 piston ring set   Oem: 3801056 4089810

PARTS SHOW FOR CMS ENGINE PISTON RING

CMS 855

Bore 5.500
855 CID

Diesel
(Continued)

Stroke 6.000

1 3801454-F Set conversion BCIV STC; BCIV Standard, New BCIV with fixed timing
1 3803041-F Set conversion BCIV STC; NT88 BCIV
G3 CRANK SEALS

1 23006736 Seal crankshaft front [3006736]
1 3020183-F Seal crankshaft front With dust seal; snubnose crankshaft
1 3010457-F Seal crankshaft front For tapered nose crankshaft (early style)
1 3006742-F Sleeve crank seal Front seal
1 23006737 Seal crankshaft rear For dry housing [3006737]
1 3006738-F Seal crankshaft rear For wet housing
1 3006743-F Sleeve crank seal Rear
1 3067616-F Gasket rear seal hsg

G5 PAN GASKETS
1 PGC300-F Set oil pan Pan gasket and pickup tube gasket and orings
1 3349820-F Gasket oil pan Standard, 0.031 / 0.79mm thick, for stamped pan 1-piece (replaces 3032861,

3048066, 3068463)
1 5083-F Gasket oil pan 0.047 thick, for cast pan 1-piece
1 3049408-F Gasket oil pan Multi-piece
1 157551-F Gasket oil sump

1 3034986-F Seal oil sump
1 3029847-F Oring oil sump
1 67946-F Washer pan plug

G2 FRONT GASKETS
1 PGC175-F Set front cover NH855: with 3020183 front seal
1 PGC176-F Set front cover NTC855 SC & BC: with 3006736 front seal
1 214633-R1-F Gasket timing cover Non FFC IOL only
1 3021704-F Gasket timing cover Single piece
1 3021705-F Gasket timing cover Segmented
1 3069102-F Gasket air compressor Air compressor mounting, paper
1 3076226-EP Gasket air compressor Air compressor mounting, steel edge molded [3076226]
1 154916-F Gasket power steering p

CAMSHAFT
3023177-B Camshaft 1 SC: replaces 143450, 3023229, 3608842
CPL:
002,005,021,022,069,077,081,093,100,101,107,123,132,133,135,144,147,155,161,166,173,201,202,204,215,217,221,226,22
7,230,246,256,259,260,272.276,280,285,288,299,300,316,317,318,319,325,326,331,346
3801030-F Camshaft 1 SC, 3/4 key; replaces: 111888, 129680, 3023228, 3608840
CPL: 018, 026, 121, 172, 200, 258, 271, 312, 356, 357, 544
3026972-F Camshaft 1 BC: MVT; replaces 3025517
CPL: 330, 454, 455, 456, 457, 458, 459, 518, 523, 702, 658, 1183, 1197
3049024-F Camshaft 1 BC: Flangeless; repl 3042568, 3801036, 3025518, 3026975
CPL:
462,463,470,512,517,538,539,540,541,542,543,545,553,554,566,567,573,574,579,582,583,585,588,609,611,612,650,657,67
5,700,701,706,719,732,733,743,744,745,811,832,849,909,1171,1180,1204,1205,1252
3608786-F Camshaft 1 BCIV: Fixed timing; replaces: 3053525, 3801951
CPL: 838, 840, 1187, 1352
3801426-F Camshaft 1 BC: MVT, Flangeless; replaces 3025524
CPL: 586, 614, 615, 616, 617, 677, 794, 795

TPK DIESEL PARTS CUM855-1 6/2/2014 (86)-20 37380256


CMS 855
Diesel
855 CID
(Continued)
6 Cylinder
Stroke
Bore 5.500
6.000
191928 Camshaft 1 BCIV: High lift, flangeless; replaces: 3036697 [3801448]
CPL: 642, 647, 651, 659, 676, 814
3803903-F Camshaft 1 BCIV: High lift, flangeless; replaces: 3608787, 3058957, 3053130
CPL: 1188, 1211
3801668-F Camshaft 1 BC: STC; replaces 3044767
CPL: 653, 654, 880, 908, 989, 991, 1167, 1179, 1193, 1211, 1314
3801749-F Camshaft 1 BC: STC, flangeless; replaces 3051132
CPL: 806, 821, 833, 903

3801763-F Camshaft BC: Flanged, 3/4 keyway

CPL:
199,214,218,222,233,254,266,267,294,298.306,307,308,309,310,315,322,323,324,327,328,329,332,338,339,344,345,349,35
3,354,360,362,363,364,365,369,373,374,375,376,394,395,396,397,402,414,431,432,433
215966-F Gear camshaft 1 SC, BC: use with flanged cam

1 3002901-F Gear camshaft BCII, III

1 150002-B Support camshaft SC
1 708124-B Support camshaft BC: use with flanged cam
1 3008530-B Support camshaft BC: use with flangeless cam
1 9235-1-F Thrust plate camshaft SC

1 215233-F Thrust plate camshaft BC
1 AR1176-F Shim kit camshaft SC & BC
1 215705-F Oring cam front

1 3011952-F Plug cam end Expansion plug, 2.6875 dia
6 3053377-F Push rod SC: exhaust for compression release, 18.26 length (replaces 112698)

3046418-F Push rod SC: intake; intake & exhaust without compression relief, 18.26 length (replaces 112700)

6 3046431-F Push rod SC: injector, 17.78 length (replaces 112701)
12 3046420-F Push rod BC: intake and exhaust, 17.78 length

6 3046430-F Push rod BC: injector, 17.67 length
C2 CAM KEY
1 3021601-F Key camshaft Straight, 3/4
1 3021592-F Key camshaft .0115 offset, retard
1 3021593-F Key camshaft .0075 offset, retard
1 3021594-F Key camshaft .0185 offset, retard
1 3021595-F Key camshaft .006 offset, retard
1 3021596-F Key camshaft .0255 offset, retard
1 3021599-F Key camshaft .0155 offset, advance
1 3021600-F Key camshaft .051 offset, retard
1 3022352-F Key camshaft .0185 offset, advance
1 3022353-F Key camshaft .0310 offset, advance
3 BM67009M Follower assembly Remanufactured, cast# 138808

1 3021597-F Key camshaft .039 offset, retard
1 3021598-F Key camshaft .031 offset, retard

F1 CAM FOLLOWER
Small Cam
3 BM37625M Follower assembly Remanufactured, cast# 44035

1 PGC101-F Set cam follower SC; contains 3 of each: 9266, 9266A
9266-A-F Gasket cam follower SC: .006 - .008 thick
9266-F Gasket cam follower SC: .014 - .020 thick

TPK DIESEL PARTS CUM855-1 6/2/2014 (86)-20 37380256


CMS 855 6
DieselCylinder
855 CID Stroke
Bore 5.500
6.000
(Continued)
3011272-F Gasket cam follower SC: .020 - .024 thick
120819-F Gasket cam follower SC: .027 - .033 thick
3011273-F Gasket cam follower SC: .037 - .041 thick, with collet for compression release
9260-1-F Roller cam 12 Valve; 0.51 ID, 1.24 OD, 0.62 OAL
68513-F Pin roller cam 12 Valve
3062096-F Roller cam 6 Injector; 0.51 ID, 1.25 OD, 0.99 OAL
3017544-F Pin roller cam 6 Injector
F1 CAM FOLLOWER
Big Cam
3036939RX Follower assembly 3 Remanufactured
PGC100-F Set cam follower 1 BC; contains 3 of each: 3074400, 3074401, 3074402, 3074403, 3074404
3074401-F Gasket cam follower BC: .006 - .008 thick
3074400-F Gasket cam follower BC: .014 - .021 thick, with bead
3074402-F Gasket cam follower BC: .014 - .021 thick
3074403-F Gasket cam follower BC: .018 - .025 thick
3074404-F Gasket cam follower BC: .026 - .036 thick
3036933-F Roller cam 12 Valve; 0.500 ID, 1.24 OD, 0.620 OAL [3036933]
3013331-F Pin roller cam 12 Valve
3036934-F Roller cam 6 Injector, 0.750 ID, 1.25 OD, 0.990 OAL [3036934]
3013330-F Pin roller cam 6 Injector
F1 CAM FOLLOWER
Big and Small cam
118939-F Lock pin rollers 18 Valve and injector rollers
3065125-F Shaft follower levers 6
175831-F Plug housing ends 6
118378-F Bushing follower lever 12 Valve lever
118377-F Bushing follower lever 6 Injector lever
213559-F Socket cam follower 18
68585-F Dowel 6 [Discontinued] Follower housing locating
R1 ROCKER BOX
24-RB-J Rocker box assembly 3
3054265RX Rocker box assembly 3 Remanufactured, New BCIV and 88BC
3038904-F Shaft rocker arm 3 Except 88 BCIV
3044399 Shaft rocker arm 3 88 BCIV
3058653-F Oring rocker shaft end 6 Except 88 BCIV
3058654-F Oring rocker shaft end 6 88 BCIV
3038903-F Plug rocker shaft end 6 Except 88 BCIV, thread-in
3044789-F Plug rocker shaft end 6 88 BCIV
140330-F Bushing rocker lever 12 Valve, Except 88 BCIV
3058462-F Bushing valve lever 12 88 BCIV
218153-F Bushing rocker lever 6 Injctor, Except 88 BCIV
3063296 Bushing injector lever 6 88 BCIV
168306-F Screw rocker lever 18 1/2-20 x 2-3/64 [168306; replaces 213109]
S212-F Nut rocker lever 18 1/2-20 UNF [S212]
194037-F Socket lever 6 Injector lever
Stroke
Bore 5.500
6.000
(Continued)
3011272-F Gasket cam follower SC: .020 - .024 thick
120819-F Gasket cam follower SC: .027 - .033 thick
3011273-F Gasket cam follower SC: .037 - .041 thick, with collet for compression release
9260-1-F Roller cam 12 Valve; 0.51 ID, 1.24 OD, 0.62 OAL
68513-F Pin roller cam 12 Valve
3062096-F Roller cam 6 Injector; 0.51 ID, 1.25 OD, 0.99 OAL
3017544-F Pin roller cam 6 Injector
F1 CAM FOLLOWER
Big Cam
3036939RX Follower assembly 3 Remanufactured
PGC100-F Set cam follower 1 BC; contains 3 of each: 3074400, 3074401, 3074402, 3074403, 3074404
3074401-F Gasket cam follower BC: .006 - .008 thick
3074400-F Gasket cam follower BC: .014 - .021 thick, with bead
3074402-F Gasket cam follower BC: .014 - .021 thick
3074403-F Gasket cam follower BC: .018 - .025 thick
3074404-F Gasket cam follower BC: .026 - .036 thick
3036933-F Roller cam 12 Valve; 0.500 ID, 1.24 OD, 0.620 OAL [3036933]
3013331-F Pin roller cam 12 Valve
3036934-F Roller cam 6 Injector, 0.750 ID, 1.25 OD, 0.990 OAL [3036934]
3013330-F Pin roller cam 6 Injector
F1 CAM FOLLOWER
Big and Small cam
118939-F Lock pin rollers 18 Valve and injector rollers
3065125-F Shaft follower levers 6
175831-F Plug housing ends 6
118378-F Bushing follower lever 12 Valve lever
118377-F Bushing follower lever 6 Injector lever
213559-F Socket cam follower 18
68585-F Dowel 6 [Discontinued] Follower housing locating
R1 ROCKER BOX
24-RB-J Rocker box assembly 3
3054265RX Rocker box assembly 3 Remanufactured, New BCIV and 88BC
3038904-F Shaft rocker arm 3 Except 88 BCIV
3044399 Shaft rocker arm 3 88 BCIV
3058653-F Oring rocker shaft end 6 Except 88 BCIV
3058654-F Oring rocker shaft end 6 88 BCIV
3038903-F Plug rocker shaft end 6 Except 88 BCIV, thread-in
3044789-F Plug rocker shaft end 6 88 BCIV
140330-F Bushing rocker lever 12 Valve, Except 88 BCIV
3058462-F Bushing valve lever 12 88 BCIV
218153-F Bushing rocker lever 6 Injctor, Except 88 BCIV
3063296 Bushing injector lever 6 88 BCIV
168306-F Screw rocker lever 18 1/2-20 x 2-3/64 [168306; replaces 213109]
S212-F Nut rocker lever 18 1/2-20 UNF [S212]
194037-F Socket lever 6 Injector lever
VALVE TRAIN
855CYL HEAD Cylinder head note ALWAYS CHECK CPL FOR CORRECT APPLICATION

TPK DIESEL PARTS CUM855-1 6/2/2014 (86)-20 37380256

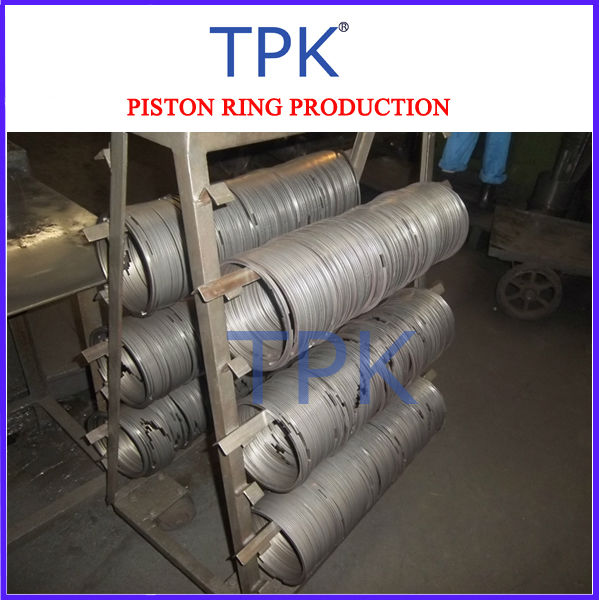

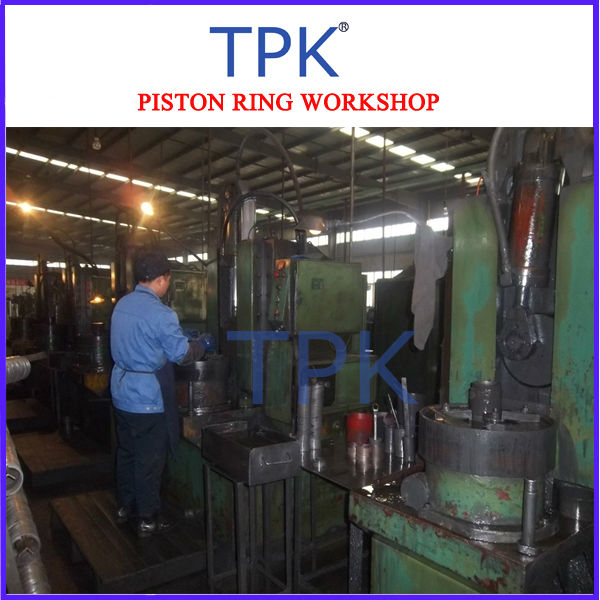

3:FACTORY WORKSHOP AND INTRODUCTION

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

Packing:

1, TPK Packing

2, according to your requirments.

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Related Parts

         Piston Kit, cylinder liner, gasket set, other engine parts

1, 24 hours Online , Skype, Msn, Yahoo, QQ...

2, 10 hours reply for your email inquiry

Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines . All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

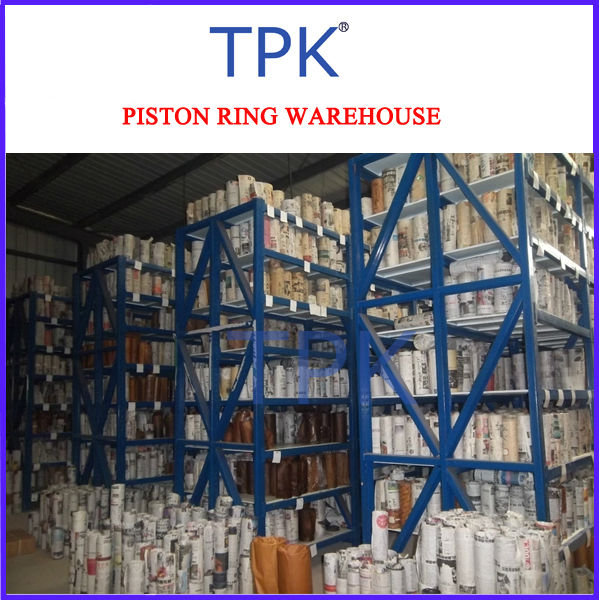

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.

Founded in 1996, Guangzhou TPK Diesel Parts Co., Ltd is a professional manufacturer of diesel piston, piston ring, cylinder liner, head gasket & overhaul gasket kit. We have been cooperated with OEM factories in China for several years, running busine[Read More]

Company Profile:

• Main Product:

  Piston Ring, Piston, Gasket Kit, Cylinder Liner, Engine Parts

• Business Type:

  Trading Company
