Quick Details

• Supply Ability:

  6000 Set/Sets per Month

• Delivery Details:

  1-3 DAYS FOR EX-STOCKS,30-45 DAYS FOR PRODUCTION

• Packing:

  TPK OR ACCORDING WITH YOUR REQUIRMENTS

• Delivery Port:

  guangzhou

• OE Experience:

  No

Product Name:K19 piston ring, KTA19 piston ring, 4089500 4955975

K19 piston ring, KTA19 piston ring, 4089500 4955975

Application

all

Product Description:

 Product Description

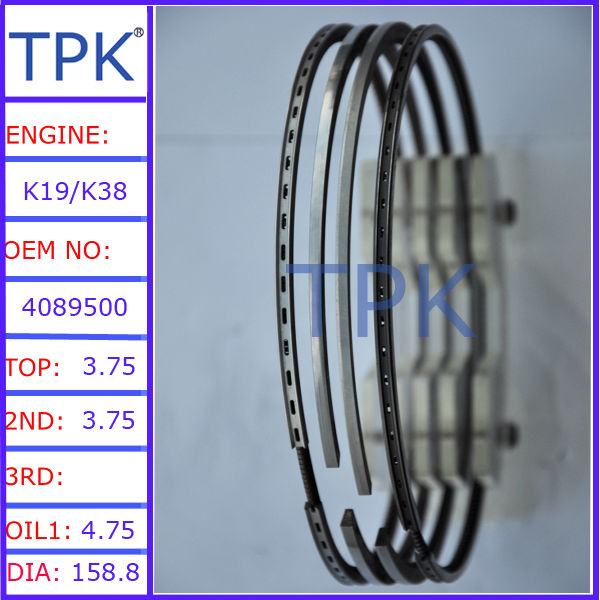

K19 piston ring, KTA19 piston ring  Oem: 4089500 4955975

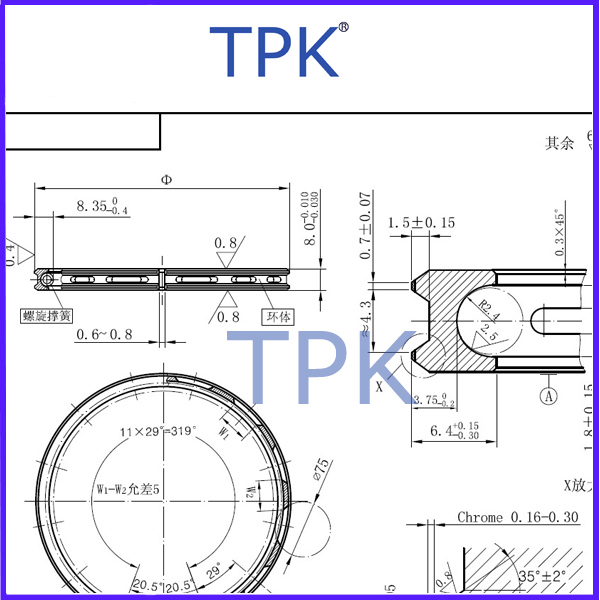

PARTS SHOW FOR CMS ENGINE PISTON RING

CMS
Diesel
1150 CID
KT19: 1150, 18.8L
(Continued)
6 Cylinder
Stroke
Bore 6.250
6.250

3811989 Cylinder head Special #1 head: same as Standard head except: guides are flat top with seals

Locomotive and some excavator applactions, especially those with long periods of idle time
12 3803515-F Valve intake kit Standard (Silichrome 1) with lock (3088393 valve)
12 3088393-F Valve intake Standard (Silichrome 1) (repl 207241)
12 3803529-F Valve exhaust kit Standard (Stellite 6) with lock (3088391 valve)
12 3088391-F Valve exhaust Standard (Stellite 6) (repl 3035110) code S or E
48 205091-F Valve lock
24 3018818-F Valve guide Flat Top, 3.800 standard length, must use seals
24 3016692 Valve stem seal [Discontinued]
24 3629006-F Valve spring Long, 3.35 free length (Carbon Steel) (repl FP-205208)
12 3026296-F Valve insert Intake (Standard 2.381)
12 205093-F Valve insert Exhaust (Standard 2.381)
3630361 Cylinder head Special #2 head: same as Premium #2 head except: guides are machined with seals

Horizontal railcar applications only
12 3803515-F Valve intake kit Standard (Silichrome 1) with lock (3088393 valve)
12 3088393-F Valve intake Standard (Silichrome 1) (repl 207241)
12 3803528-F Valve exhaust kit Premium (Inconel) with lock (3088389 valve)
12 3088389-F Valve exhaust Premium (Incolnel) (repl 3034827) code U
48 205091-F Valve lock
24 3235286 Valve guide Specially machined guide
24 3016692 Valve stem seal [Discontinued]
24 3633840-F Valve spring Short, 2.63 free length (Nitrided)
24 3081081-F Rotator
12 3026296-F Valve insert Intake (Standard 2.381)
12 205093-F Valve insert Exhaust (Standard 2.381)
12 3031098-F Valve insert Intake (2.391 oversize for 205093)
12 3031099-F Valve insert Intake (2.401 oversize for 205093)
12 205169-F Crosshead guide for stemmed crossheads only
12 68445-F Goove pin
12 206224-F Plug expansion 1-5/8
6 67622-F Plug pipe 3/8 NPT
1 3002158-F Pipe plug
6 S915A-F Plug pipe 1/2 NPT
36 3032633-B Bolt cylinder head 3/4-16 x 8

CRANKSHAFT
1 3096362-F Crankshaft cast 3347569; flange: flat, no cente ring, 9 bolt holes; Snout: 6 bolt holes, 1 keyway, 1 dowel
1 217322-F Damper vibration 13.50 dia, use with snub nose crank, SC FFC

CONNECTING ROD
040042 12
3201785-F 2
206973-F 4
3200550-F 1
3065791-F 1
3016675R-P 6
3016675R-P 6
3016676R-P 6
3016676R-P 6
3022196-B 6
Bolt connecting rod
Oil cooler
Gasket oil cooler
Gasket oil cooler
Gasket oil cooler
Injector reman PTD
Injector reman PTD
Injector reman PTD K
Injector reman PTD K
Injector assembly
[3013265]
12 plate
Core mounting
Cooler housing to block
Cooler cover to housing
PTK, new
TPK DIESEL PARTS CUM1150-1 3/4/2010 (86)-20 37380256

OIL / LUBE SYSTEM
FUEL / INJECTOR

CMS
Diesel
1150 CID
KT19: 1150, 18.8L
(Continued)
6 Cylinder
Stroke
Bore 6.250
6.250

6 3022197-F Injector assembly PTK, new
6 3023035R-P Injector reman PTD K
6 3010510-F Injector oring Top
6 205216-F Injector oring Center
6 193736-F Oring injector (repl 101754)
1 3000175-F Hub jaw coupling Fuel pump drive
1 3046200-F Spider drive Hard plasitc
1 205463-F Injector adapter
1 167157-F Ball check
1 3008706-F Screen filter
1 205462-F Injector plunger link
1 203426-F Roll pin
1 207245-F Injector cup retainer
1 205464-M Compression spring
1 207244-F Injector sealing ring Injector nose to head
1 3037292-F Plunger and bushing
1 3001314-F Injector cup (10-.0085-100)
1 3003933-F Injector cup (9-.0085-100)
1 3003932-F Injector cup (9-.0085-70)
1 3005963-F Injector cup (9-.0075-100)
1 3035342-F Fuel shutoff valve 12 volt, single terminal
1 3035344-F Fuel shutoff valve 24 volt, single terminal
1 3054611-F Fuel valve solenoid 12 volt, single terminal
1 3054610-F Fuel valve solenoid 24 volt, single terminal [repl by 3054609]
1 154087-F Oring valve mounting

COOLING SYSTEM
1 70624-F Oring water manifold Manifold coupling
1 3803153-F Water pump repair kit
1 204586-F Thermostat 175 degree, non-vented
2 181830 Thermostat Thermostat and seal, non-vented, 180F degree [3076489 kit, 201737 thermostat]
2 3017360-F Thermostat 185 degree, non-vented
1 186780-F Seal thermostat
1 3010918-F Gasket thermostat hsg
1 3001299-F Aftercooler core
2 3001304-F Gasket aftercooler Cover to housing
1 3001305-F Gasket aftercooler For grommet retainer
3 3032161-F Gasket aftercooler Crossover connection
1 3010926-F Gasket aftercooler Transfer tube at thermostat housing
2 206808-F Seal aftercooler Wide grommet seal
24 3014304-F Sleeve rubber
2 3023066-F Oring Air connection
4 109557-F Washer plain
TURBO TURBOCHARGER New or remanufactured available, call for pricing
6 206277-F Gasket manifold intake Manifold to heads
1 206279-F Gasket manifold intake Crossover connection

TURBO / AIR
BLOCK
3042586-F Gasket hand hole cover

MISC
1 3201693-F Gasket accy drive Accessory drive to gear cover
1 3200287-F Seal accy drive Pulley seal
1 116391-F Bushing accessory drive Drive housing

TPK DIESEL PARTS CUM1150-1 3/4/2010 (86)-20 37380256


CMS KT19: 1150, 18.8L 6
DieselCylinder
1150 CID Stroke
Bore 6.250
6.250
(Continued)
Stroke
Bore 6.250
6.250
(Continued)
1 3026556-F Thrust washer Front, 2.438 OD
1 3026557-F Thrust washer Rear, 1.997 OD
1 3014103-F Washer Between hub jaw coupling and rear thrust washer
1 190397-F Sleeve pulley wear
1 3628895 Seal accy drive In front housing [replaces 3016788, 3005874]
1 132770-F Bushing accessory drive For small shaft 1.5, in front gear cover
1 3000174-F Hub jaw coupling Rear of driveshaft, front of air compressor
1 3000173-F Screw 3/8-16 x 1, drilled
1 170664-F Washer plain (for 3000173 screw)

TPK DIESEL PARTS CUM1150-1 3/4/2010 (86)-20 37380256


TPK DIESEL PARTS CUM1150-1 3/4/2010 (86)-20 37380256


CMS V1710, 28.0L 12
DieselCylinder
1710 CID; Phase 3 only Stroke
Bore 5.500
6.000
CYLINDER KIT
Stroke
Bore 5.500
6.000
CYLINDER KIT
12 3801828-F Cylinder kit 14.1:1 CR, 5 ring [175760 piston, 3801044 rings, 191970 pin, 175755 ret, 3055099 liner]
12 3801829-F Cylinder kit 13.7:1 CR; Premium+ 4-ring [3003176 piston, 3803471 rings, 191970 pin, 175755 ret, 3055099 liner]
[3801834 in sets]
12 3801833-F Cylinder kit 14.7:1 CR, Premium 4-ring [3003175 piston, 3801056 rings, 191970 pin, 175755 ret, 3055099 liner]
12 3801831-F Cylinder kit 14.1:1 CR, teflon inserts [3011295 piston, 3803471 rings, 191970 pin, 175755 ret, 3055099 liner]
[3801835 in sets]
12 3801832-F Cylinder kit 13.7:1 CR, teflon inserts [3031049 piston, 3803471 rings, 191970 pin, 175755 ret, 3055099 liner]
[3801834 in sets]
12 3801834-F Cylinder kit 13.0:1 CR, teflon inserts [3031213 piston, 3803471 rings, 191970 pin, 175755 ret, 3055099 liner]
12 3801835-F Cylinder kit 14.0:1 CR, teflon inserts [3031214 piston, 3803471 rings, 191970 pin, 175755 ret, 3055099 liner]
12 3801836-F Cylinder kit 14.5:1 CR, teflon inserts [3040097 piston, 3803471 rings, 191970 pin, 175755 ret, 3055099 liner]
12 AR3550-F Piston kit 14.1:1 CR, 5 ring [175760 piston, 191970 pin, 175755 ret]
12 AR5720-F Piston kit 13.7:1 CR; Premium+ 4-ring [3003176 piston, 191970 pin, 175755 ret] [3801267 in sets]
12 AR45653-F Piston kit 14.7:1 CR, Premium 4-ring [3003175 piston, 191970 pin, 175755 ret]
12 AR12359-F Piston kit 14.1:1 CR, teflon inserts [3011295 piston, 191970 pin, 175755 ret] [3801434 in sets]
12 AR12357-F Piston kit 13.7:1 CR, teflon inserts [3031049 piston, 191970 pin, 175755 ret] [3801267 in sets]
12 3801267-F Piston kit 13.0:1 CR, teflon inserts [3031213 piston, 191970 pin, 175755 ret]
12 3801434-F Piston kit 14.0:1 CR, teflon inserts [3031214 piston, 191970 pin, 175755 ret]
12 3801666-F Piston kit 14.5:1 CR, teflon inserts [3040097 piston, 191970 pin, 175755 ret]
12 175760-F Piston 14.1:1 CR, 5 ring
12 3003176-F Piston 13.7:1 CR; Premium+ 4-ring
12 3003175-F Piston 14.7:1 CR, Premium 4-ring
12 3011295-F Piston 14.1:1 CR, teflon inserts
12 3031049-F Piston 13.7:1 CR, teflon inserts
12 3031213-F Piston 13.0:1 CR, teflon inserts
12 3031214-F Piston 14.0:1 CR, teflon inserts
12 3040097-F Piston 14.5:1 CR, teflon inserts
12 3801044-F Ring set 5-ring [1 cyl]

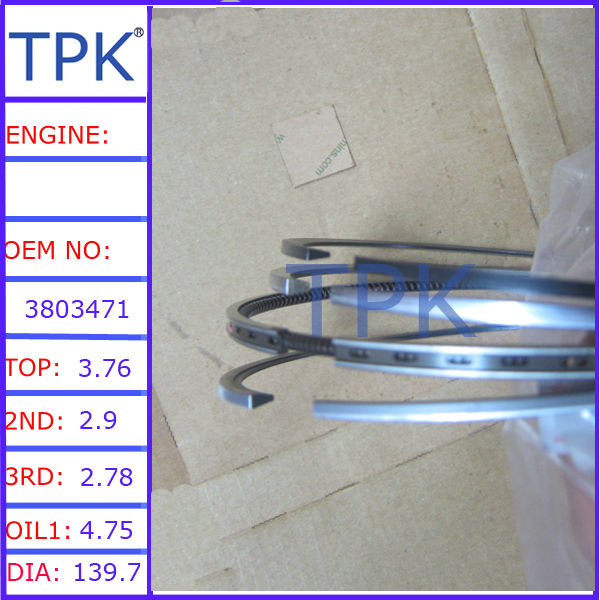

12 3803471-F Ring set Premium+, 4-ring piston (1 cyl set) [repl by 4089811, replaces 3801755]
12 3801056-F Ring set Premium, 4-ring piston (1 cyl set)
12 3801826-F Cylinder liner kit Standard liner, LPF; liner with orings (3055099 liner)
12 3801387-F Cylinder liner kit .020 Upper press fit; liner with orings (3046325 liner)

Engines built prior to 1981; ESN to 37104099
12 3803219-F Cylinder liner kit .020 / .040, LPF; liner with orings (3065405 liner)
12 3055099-F Cylinder liner Standard liner, LPF
12 3046325-F Cylinder liner .020 Upper press fit
12 3065405-F Cylinder liner .020 / .040, LPF
12 AR51477-F Cylinder liner oring kit Contains (1) 215090, (2) 3032874 [1 cyl set]
12 215090-F Liner oring crevice
24 3032874-F Liner oring oring
1 AR51478-F Cylinder liner shim kit Use with std liner
3019955-F Cylinder liner shim Use with std liner .007"
3019956-F Cylinder liner shim Use with std liner .008"
3019957-F Cylinder liner shim Use with std liner .009"
3054948-F Cylinder liner shim Use with std liner .0205"
3019959-F Cylinder liner shim Use with std liner .0315"
3019960-F Cylinder liner shim Use with std liner .062"
3066843-F Cylinder liner shim Use with .020 / .040 liner; .018"
TPK DIESEL PARTS CUM1710-1 3/4/2010 (86)-20 37380256

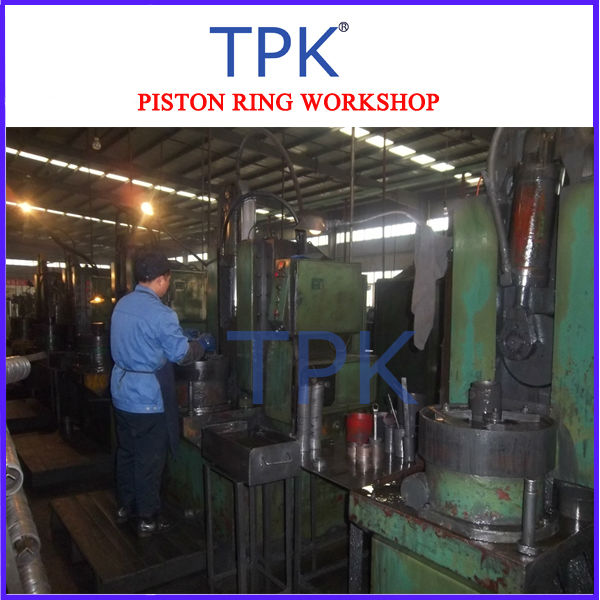

3:FACTORY WORKSHOP AND INTRODUCTION

Shipping

(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )

Packing:

1, TPK Packing

2, according to your requirments.

Payment

(1): TT (30 %  in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash

Related Parts

         Piston Kit, cylinder liner, gasket set, other engine parts

1, 24 hours Online , Skype, Msn, Yahoo, QQ...

2, 10 hours reply for your email inquiry

Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines. All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.

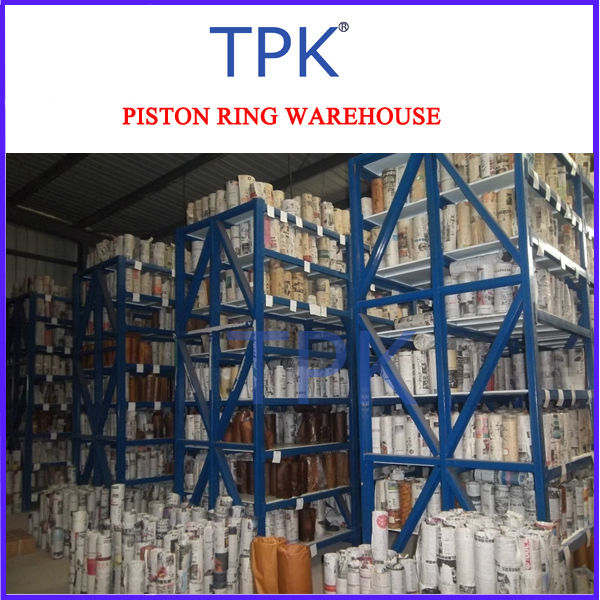

Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.

With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.

Founded in 1996, Guangzhou TPK Diesel Parts Co., Ltd is a professional manufacturer of diesel piston, piston ring, cylinder liner, head gasket & overhaul gasket kit. We have been cooperated with OEM factories in China for several years, running busine[Read More]

Company Profile:

• Main Product:

  Piston Ring, Piston, Gasket Kit, Cylinder Liner, Engine Parts

• Business Type:

  Trading Company
