Quick Details

• Board Thickness:

  0.21mm

• Min. Hole Size:

  0.2mm

• Min. Line Width:

  0.75mm

• Min. Line Spacing:

  0.75mm

• Surface Finishing:

  HASL

• Place of Origin:

  Shenzhen

• OE Experience:

  No

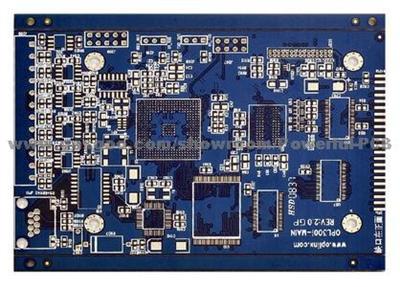

Product Name:Low Cost Printed Circuit Board And PCB Manufacuring

Low Cost Printed Circuit Board And PCB Manufacuring

Application

Automative

Product Description:

Capacity of Powerful-PCB
Max Dimension:1185mm*480mm
Min Dimension:5mm*5mm
Min Trace& line spacing:0.1mm
Warp & Twist:<0.5mm
Finished Product Thickness:0.2-4.5 mm
Copper Thickness:18-240 um
Hole Inner Copper Thickness:18-40 um
Hole Position Tolerance:+/-0.075 mm
Min Punching Hole Diameter:1.0mm
Min Punching Square Slot Specification::0.8mm*0.8mm
Silk Prints Circuit Tolerance:+/-0.075 mm
Outline Tolerance:CNC:+/-0.1mm; Mould:+/- 0.75mm
Min Hole Size:0.8 mm (No limitation in Max hole dimention)
V-CUT Angle Deviation:+/-0.5°
V-CUT Board Thickness Range:0.6mm-3.2mm
Min Component Mark Character Style:0.15 mm
Min Open Window for PADs:0.01mm
Solder Mask:Green, White, Blue, Matte black, Grey
Surface Finishing:HASL,Immersion Tin/Silver/Gold,gold plating,OSP

Shenzhen Powerful Electronic Co.,Ltd is a professional producer of PCB、 double-sided aluminum based PCB、FR-4 high-precise multilayer PCB、high frequency microwave board、aluminum based board and copper aluminum board. Depending on rich experiences and great support of clients, the company has get ...[Read More]

Company Profile:

• Main Product:

  Printed Circuit Board

• Business Type:

  Manufacturer

• Current Export Market:

  Western Europe, Eastern Europe, Southeast Asia, Mid East, Oceania
