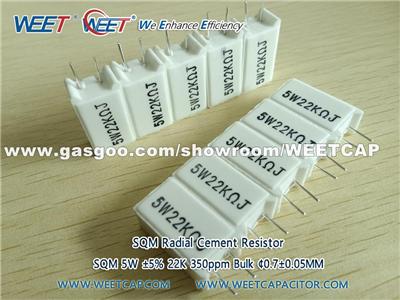

OEM No/Model: SQM
Cement Ceramic resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it in a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
Excellent heat resistance, low temperature coefficient of resistance and linear change.
It can withstand short-term overload, low noise, and the resistance value has not changed over the years.
Good explosion-proof performance and protection.
Power Rating 70 |
2W | 3W | 5W | 7W | 10W |
3WS | 5WS | 7WS | 10WS | - | |
Series Number | SQM | ||||
Operating Temp. Range | -55~ +155 | ||||
Max. Working Voltage | 250V | 350V | 350V | 500V | 500V |
Max. Overload Voltage | 500V | 700V | 700V | 1000V | 1000V |
Dielectric Withstanding Voltage(AC) | 500V | 700V | 700V | 1000V | 1000V |
Value Range ±5% (Ceramic Core) | 0.1 - 47 | 0.1 - 100 | 0.1 - 180 | 0.1 - 470 | 0.1 -680 |
Value Range ±5% (Metal Oxide Film) | 48 -100K | 110 -100K | 180 -100K | 471 -10K | 681 -10K |
Temp. Coefficient (PPM) | ±300ppm/ |
