ZT601 T78 general relay miniature relay 18v relay,China Auto Parts,buy ZT601 T78 general relay miniature relay 18v relay ,Suppliers, Manufacturers, Exporters from gasgoo.com

Home » Product Directory » Electricity & Electronics » Electronics Parts » Relay »

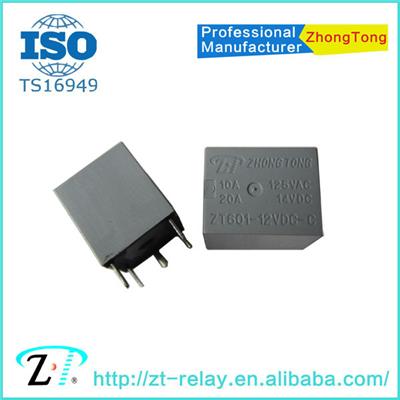

Image for ZT601 T78 general relay miniature relay 18v relay

ZT601 T78 general relay miniature relay 18v relay

Application: all
Market Type:After Market
Price: US $0.19 - 0.2 / Piece
Payment Terms: L/C, D/A, T/T, D/P, Western Union
Minimum Order: 1000 Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Supply Ability:
1000000 Piece/Pieces per Month
Delivery Details:
Shipped in 10 days after payment
Packing:
2000pcs/carton
Delivery Port:
Ningbo Shanghai
OE Experience:
No

Product Name:ZT601 T78 general relay miniature relay 18v relay

ZT601 T78 general relay miniature relay 18v relay

Application

all

Product Description:

1 -601-PCB.jpg

-samll size,light weight

-Switching capacity up to 20A(at 85.C)

High resistance to vibration and shock

-Outline dimensions:15.7*12.5*14.0mm

Item			ZT601(T78)
Contact	Rating		NO:20A/14VDC 10A/120VAC NC:15A/14VDC 10A/120VAC
	Arrangement		1A,1B,1C
	Material		Silver Alloy
	Resistance (Initial)		Maximum 100 mΩ
Coil	Coil voltage 6V,12V,24V
	normal power		0.36w 0.6w 0.8w
Performance	Electrical life		100,000 ops
	Mechanical Life		10,000,000 ops
	Operate time		10ms
	Release time		5ms
	Dielectric strength		500VAC
	Initial insulation resistance		100MΩ
	Dielectric strength	BOC	500V
		BCC	500V
Dimensions and Mounting	L×W×H		15.7×12.5×14
	Termination		PCB
	Unit weight		6g
other	Ambient temperature		-40°C~+85°C

-100pcs/white box

-2000pcs/carton

1)for cars:alarm system,door lock,automatic door and window,seat adjust,speed limit signal control,ect…

2)others:motocycle alarm system,electric bike alarm system

10 -4.jpg

Our Services

Dear Mr. or Mrs,

Welcome you see our products. During your buying process, our company will try our best to help you to find a right kind of relay. We offer you:1 understand what you want to buy; 2 find a right product for you; 3 give you quick competetive offer; 4 make arrangement of your relays punctually; 5 offer after sales service.

Best regards,

kaslo pu

FAQ

Q: 1 When does your company establish?

A: It's established in 2010, and our main technical engineers have more 20 years experence in manufaturing relays.

Q: 2 Do you offer samples?

A: Yes,we offer free samples.
