3000va/2400W DC To AC Solar Invertors With City Power Input

    • Application: solar system
    • Market Type:After Market
    • EXW Price: USD Unit
    • Other Price Term: FOB,CIF,CFR ECT
    • Payment Terms: L/C, T/T
    • Samples: Charge
    • Minimum Order: 10Unit/Units

Quick Details

  • Voltage:

    12v

  • Color:

    Green

  • Place of Origin:

    China

  • Samples:

    Charge

  • Sample Price:

    100

  • Delivery Time:

    15

  • Packing:

    Cartons & Wooden Pallet

  • Max. Production Capacity:

    50, 000PCS/Month

  • Export Ratio:

    71% - 80%

  • OE Experience:

    No

Product Name:3000va/2400W DC To AC Solar Invertors With City Power Input

3000va/2400W DC To AC Solar Invertors With City Power Input

Application

solar system

Product Description:

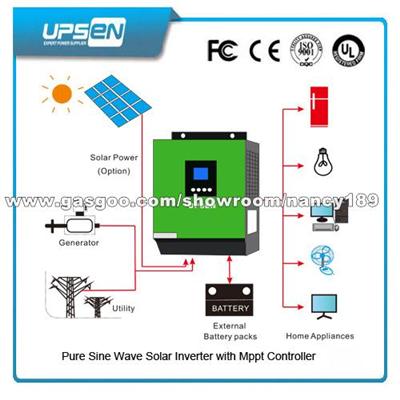

3000VA/2400W Dc to Ac solar invertors with City Power Input
Hybrid Pure Sine Wave Inverter Controller Rainbow Star Series 1000Va-5000Va   (1ph in/1ph out)
Key Features
1:Small size , light weight and potable
2:Multiple communication via RS232,RS485/USB (Optional)
3:Pure sine wave output, available for sensitive load
4:Supperior performance from CPU control technology
5:Compatible to mains voltage or generator power
6:Automatically transfer between battery and line modes
7:Bright LED indicators imply system status at a glance
8:Selectable charging current based on applications
9:The multi-purpose socket design, it is suitable for any plug.
10:High input voltage protection with automatic shutdown
11:Smart battery charger design for optimized battery performance
12:Selectable input voltage range for home appliances and personal computers

Applications
Supply the reliable long back up time power for the home appliances and Portable lights,Industrial control system,Servers Packaging machines,Wind power generation,incandescent, small television sets, refrigeratoretc

Technical Specification

Model RS1000  RS2000  RS3000  RS4000  RS5000
RATED POWER 1000VA/800W 2000VA/1600W 3000VA/2400W 4000VA/3200W 5000VA/4000W
INPUT
Voltage 208/220/230/240 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC
 (For Home Appliances)

Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT

AC Voltage Regulation
(Batt. Mode)

230 VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90~93% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC Charger
Battery Voltage 24VDC 48 VDC
Floating Charge Voltage 27VDC 54 VDC
Overcharge Protection 30VDC 60 VDC
Maximum AC Charge Current 20A 25 A
SOLAR CHARGER

Maximum PV Array Open
Circuit Voltage

60VDC/150Vdc (Optional)
110VDC/150Vdc (Optional)

Mppt Range @
Operating Voltage

25-60Vdc/25-150Vdc (Optional)

60-110Vdc/60-150Vdc
(Optional)

Maximum Solae Charge Current
40/60A 60A
Max Efficiency   >96%
Standby Power Consumption 2W
PHYSICAL
Dimension, D x W x H (mm) 350 x 130 x 340 380 x 130 x 465
Net Weight (kgs) 7.4 7.6 8 12.5 13.5
