Quick Details

• Voltage:

  12v

• Current:

  10A

• Color:

  Brown

• Material:

  ABS Alloy

• Feature:

  Flat

• Wiring:

  Null Line and Live Line

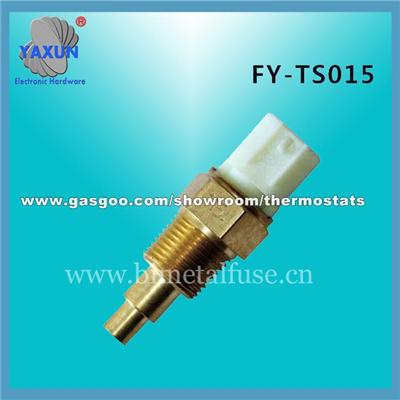

Product Name:Car Water Temperature Switch

Car Water Temperature Switch

Application

Acura, Alfa romeo, Aston martin, audi, Aux, AC Schnitzer, AIANTU, ALPINA, Baolong, Beiqi, BMW, Bugatti, Buick, BESRURN, BISU, BJC, BORGWARD, Brabus, Chery, Citroen, COWIN

Product Description:

3 / 8GAS copper probe auto temperature control switch:
     USING FOREIGN bimetal disc as temperature sampling element, the water temperature switch is mounted on the tank temperature sensitive parts, dynamic collection tank water temperature changes by dish-shaped metal sheet is deformed at a temperature and temperature transient point beating the principle role, with the institutions, so that the two contacts quickly turn on, start the fan, water cooling tank, the engine of the car to play safe

Principle: transient temperature points beating
       It consists of two tranches of wax texture and temperature element contact action mechanism driving the composition, the use of paraffin when heated from a solid into a liquid volume suddenly increases to move fader control opening and closing of the contacts. With coolant temperature, the wax begins to expand, while the overwhelming tension spring frame by pushing the plunger rubber sealing film. When the cooling water temperature rose to 95 , low contact is closed, the radiator fan motor power, low speed to 1600 r / min of.
      When the cooling water temperature continues to rise to 105 when, due to continued expansion of the paraffin leaving the high-speed contact is closed, the radiator fan motor in high speed 2400r / min, in order to increase the cooling intensity. When the cooling water temperature drops, paraffin volume contraction, putting retraction leaving the contact is opened, the realization of the radiator fan motor control in the role of the contact tension.

3 / 8GAS copper probe car temperature control switches are widely used: motorcycle tank thermostat range for passenger cars application , trucks, tank car, cooling fan motor, favor of an automobile engine to maintain optimal temperature.


3 / 8GAS copper probe car thermostat switch conditions
relative humidity at + 20 Environment issued 95%
atmospheric pressure 86-106Kpa
working position: Any

3 / 8GAS copper probe car thermostat switch technology parameters
Operating Temperature: 0 --150 (any temperature)
reset temperature: 6 --40 (temperature difference with the action)
Rated voltage: DC24V-250V
Current Rating: 10A
Insulation resistance: DC500V 10M (normal)
Contact resistance: resistance Rs50m (initial value) when the static and dynamic contact exposure
Open resistance: static and dynamic contact resistance Rk10M off
withstand voltage: AC1000V 50HZ 30S (normal)
switch life: its own on-off switching times 100,000 times (normal)
              Common thread: M12 * 1.5; M14 * 1.5; M16 * 1.5; M20 * 1.5; M22 * 1.5, G2 / 1

Note: The temperature may need to develop a series based on other customers, different interfaces and loading plug form, different electrical parameters of products
