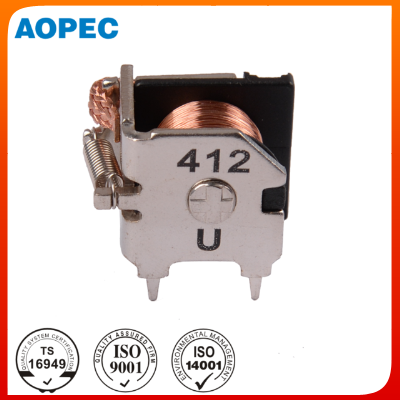

Image for 6V 12V 24V relay

6V 12V 24V relay

Application: all
Market Type:After Market
Price: US $0.2 - 0.8 / Piece
Payment Terms: L/C, D/A, T/T, D/P, Western Union,MoneyGram,Paypal
Minimum Order: 100 Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Supply Ability:
100000 Piece/Pieces per Month
Delivery Details:
3-25 days after receiving payment
Packing:
CTN
Delivery Port:
Shanghai, Ningbo,Shenzhen
OE Experience:
No

Product Name:6V 12V 24V relay

6V 12V 24V relay

Application

all

Product Description:

Product Description

Auto Relay,6V 12V 24V PCB plug automotive relay

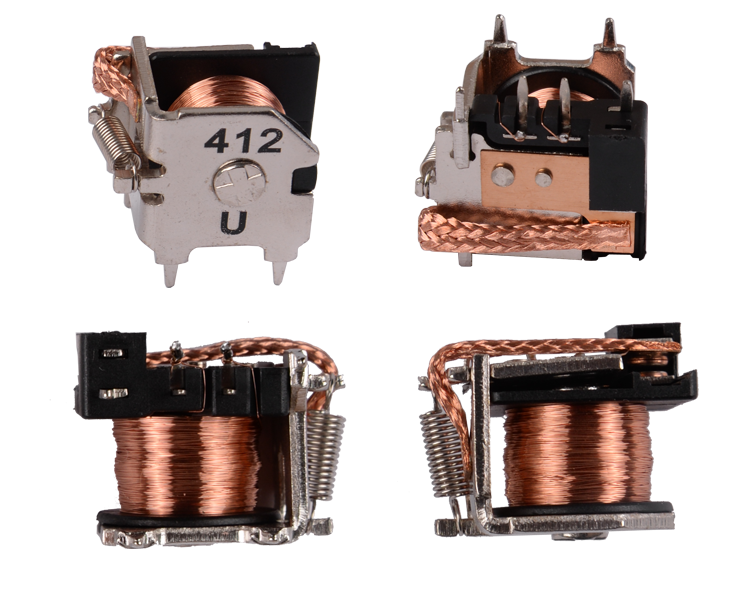

auto relay 705 6.png

Features

45A Switching Capability;
Ambient Temp.: -40?+125?;
1 Form A & 1 Form C Contact arrangement;
PCB terminals available
Two pins out choices;
Open & sealed IP67 types available;
ROHS & ELV compliant (555)

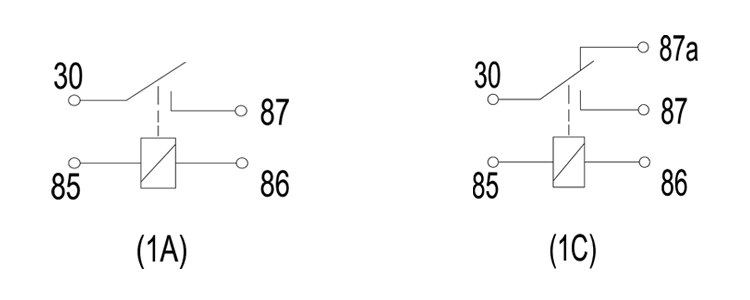

Wiring Diagram

709 7.png

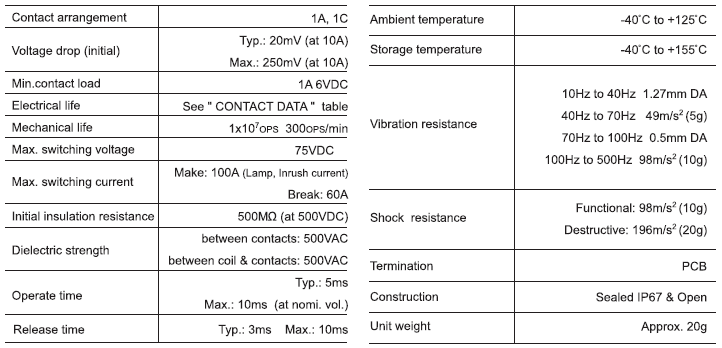

Specification

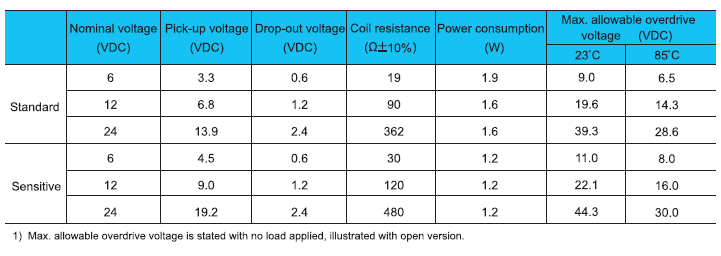

Coil Paremeter

705 coil data.png

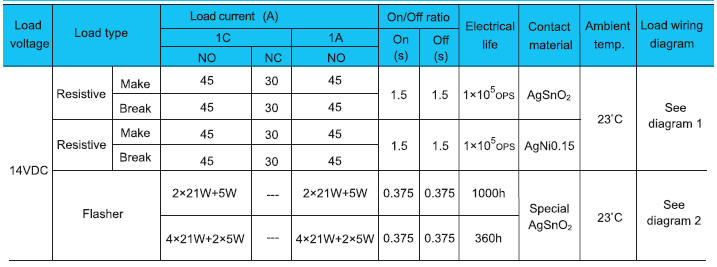

Contact Paremeter

705 contact data.png

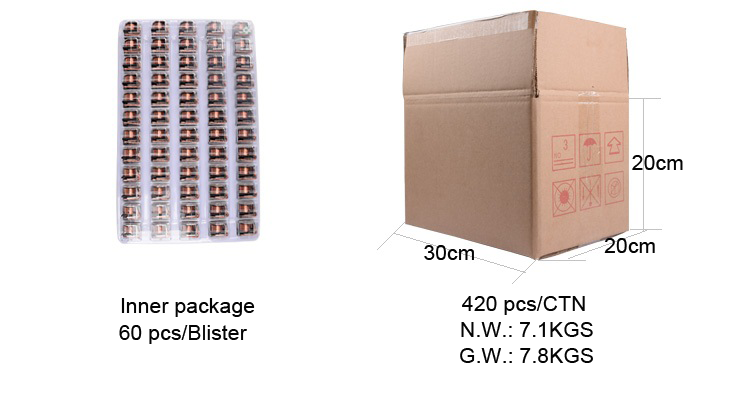

Package 705 package.png

Application Turning lamp, dangerous signal&scram lamp control, Audio system, Air-conditioning, Fuel pump control, Low temperature control, Seat adjustment, Window defoggers, Starter solenoid switches,Power door&window, Anti-theft lock, Central door lock. Order Information

	705	012	1A	1	S	T	XXX
Typical product code
Coil voltage	006: 6VDC: 012: 12VDC; 024: 24VDC
Contact form	A: 1 Form A ; C: 1 Form C
Enclosure style	1: USA Open Model, 2: USA Sealed Model, 3:Euro Open Model, 4 Euro Sealed Model, 5: USA Sealed Model, 3 yoke terminals, 6:Euro Sealed Model, 3 yoke terminals
Coil power	L: Sensitive; Nil: Standard
Contact martial	T: AgSnO2 ; Nil: AgNi0.15
Clients Customized	For eg: 170 stands for flasher load, 555 stands for RoHS & ELV compliant. All customized special codes should be followed one by one if there were multple special requirements.
Remark	705 is an environmental friendly product, it's better place the order with special code 555.

Company Information

Founded in 2002, Aopec is one of leading manufacturers and the only one just focus on automotive relays, battery management units and chargers in China. We are the qualified OE supplier to some car makers and several big brands. TS standardized QC control with the lean manufacturing process makes us a reliable partner with the customers on design, quality, delivery and services.

Aopec has painstakingly developed unique quality assurance program in order to provide our customers with the best possible product. Through this and other advanced techniques, all the products are monitored and tested prior to shipment. Aopec’s 100% quality testing, sales and technical support, cost-effective product design and product availability has earned customer loyalty worldwide. And once you’ve sampled Aopec quality-we’re convinced you’ll agree that Aopec is a Trustworthy Partner.

Our Services

1 OEM & ODM service

2 100% quality guarantee

3 24 hours service

4 Technical support & warranty

5 Documents support

6 Customs clearance assistance

Payment & Shipment

.png

FAQ

Q: Are you manufacturer or trade Company?

A: We are a premium manufacturer both in direct investment and joint ventures for Automotive Electrics.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Kunshan City next to Shanghai. It takes about 50 minutes from Kunshan to Shanghai Hongqiao International Airport. All our clients , from home or abroad, are warmly welcome to visit us!

Q: Could I put my own logo on the product i purchased?

A: Yes, customers' logo can be printed by laser printing, transfer printing, silk printing and carving for free.

Q: Could I buy 1pc sample for evaluation?

A: We are honored to offer you samples. Free samples will be available if less than USD10.00, customers just need to pay the freight cost.

Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can develop the molds and fixtures on the items and the quantity of your order.

Q: How do you control the products' quality? Do you test all your goods before delivery?

A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Yes, we have 100% test before delivery

Q: What’s about your payment terms?

A: T/T 30% deposit and 70% against document. We'll show you the photos of the products and packages before you pay the balance.

Q: What is your lead time for your goods?

A: Usually it takes about 15-25 working days for production.
