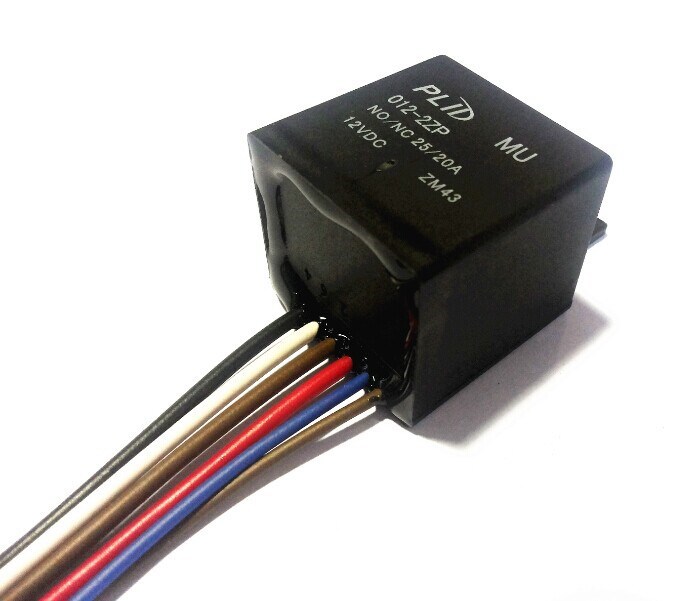

Relay description
Application: the time delay control 12/24 v
Special specifications, 12 v power supply (control) control 220 v (load power supply).
Technical parameters: rated voltage 12 VDC
Working voltage range: 9 VDC - 16 VDC
The rated load impedance load: 30 A 13.5 VDC
Fan load: surge 100 a, 20 a steady state
Delay time 5 + / - 10% the Sec
Action voltage (Max.) 9.0 VDC
Release voltage (Max.) 1.2 VDC
- 40 ?~ + 85 ?temperature range
Vibration 10 hz ~ 200 hz to 50 m/s2 (5 g)
Impact of 200 m/s2 (20 g)
34 g in weight
Mechanical properties of the shell retention, pressure 200 n which leads to the feet or higher retention, 1 x 105 times life of electric pressure p 100 n (under the rated load)
Product Overviews WIRE HARNESS: SHUANGFEI develops and supplies innovative wiring solutions, as well as components, for passenger car producers, commercial vehicle manufacturers and for system and component suppliers. Our mission is to give the customer precisely what it is required, from the initial design concept to the safe installation of the final product.
WIRE&CABLE
SHUANGFEI develops and utilizes sheathing and insulation materials that meet the demand for a high degree of safety and durability of a cable under extreme conditions of use. Our product comprises copper drawing, round, braid, twist, shield, irradiated wire. We develop and manufacture a full range of standardized and specialist copper wire/cable for automotive applications.

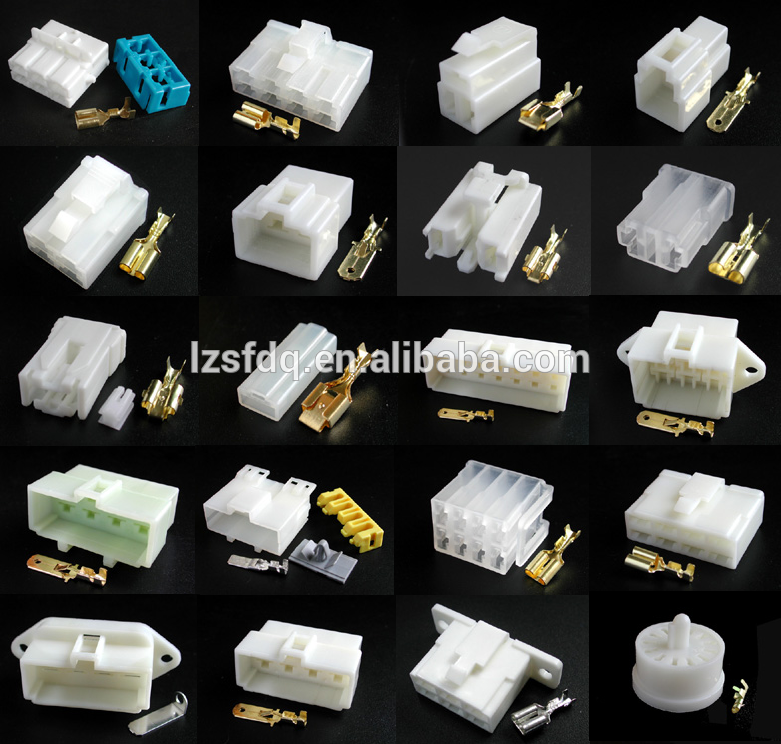

AUTO SPARE PARTS: We develops and supplies innovative wiring solutions, as well as components(such as terminal,housing,connector,auto relay,fastener etc.) with high quality and competitive price.
Company profiles Liuzhou Shuangfei Auto Electric Appliances Manufacturing Co., Ltd. was established in 1993. We are a professional entire car wire harness manufacturing company that integrates design, development, test and mass production, and also produces wire&cable by ourselves. Shuangfei covers an area of 170-thousand m², with a nearly 67-thousand m² plant area. Over 3500 employees devote their passion to Shuangfei. We obtained QS9000 in 2002, and passed the ISO/16949 certificate of quality system in 2006. We have 4 production sites: Liuzhou-the headquarter, and 3 other branches-Qingdao, Zhuhai and Chongqing. Our plant in Indonesia is under construction.
We now have 120 R&D personnel, among which 60 obtain bachelor’s degree, and 30 have work experience of more than 5 years. ERP is the main management system, and the software for product development includes: UG(NX8.5),AutoCAD2007,CATTIA,VESYS, etc. We are strong in technology development and technology transformation.

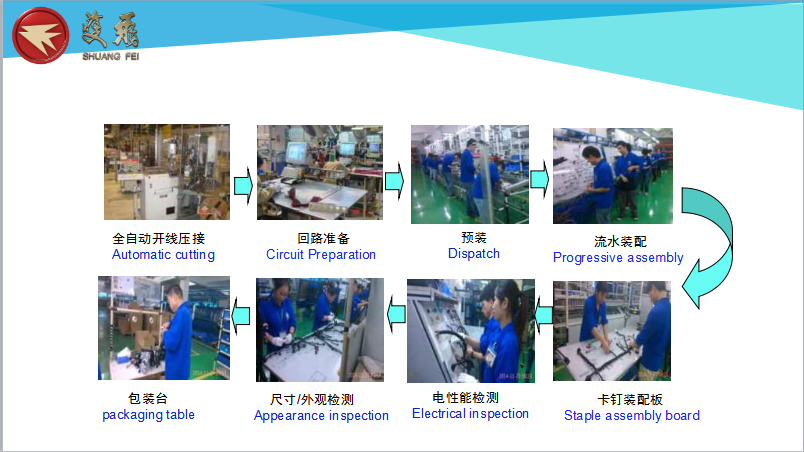

Our Process
Our customers
FAQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below:
