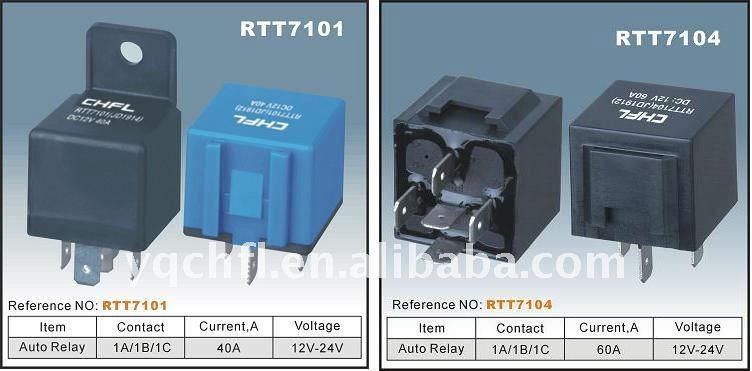

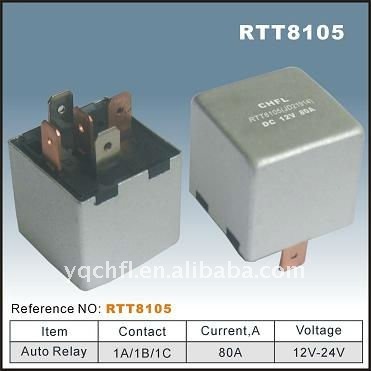

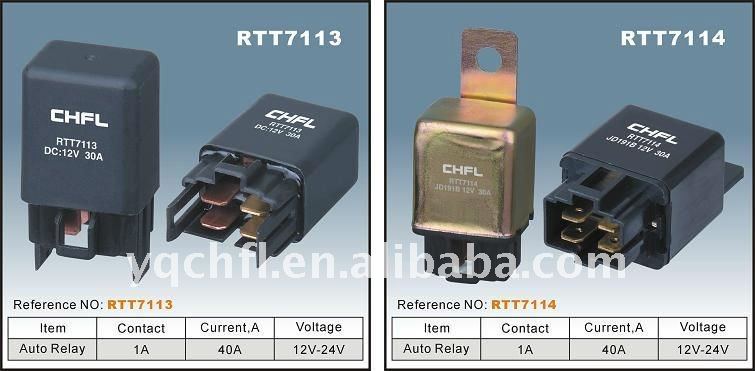

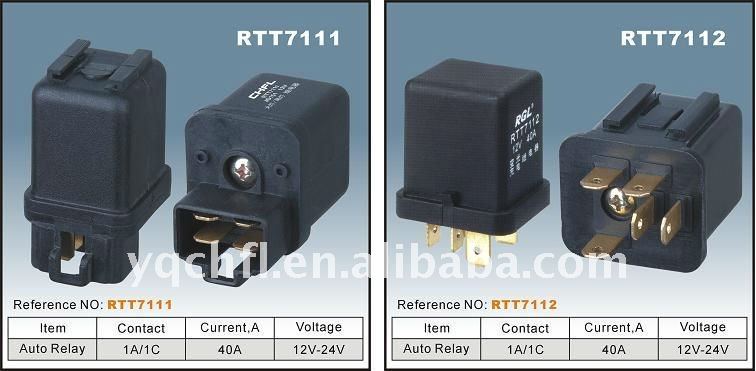

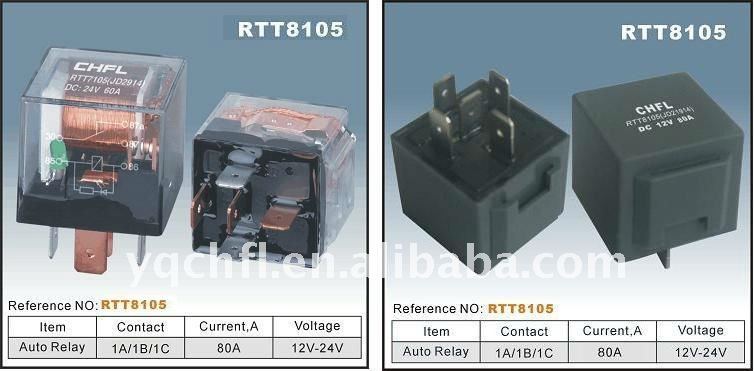

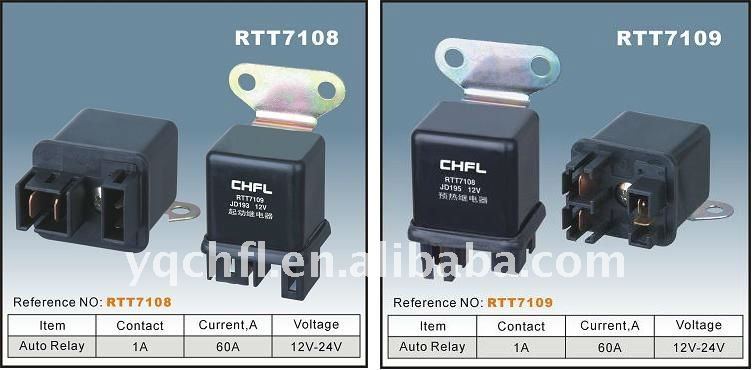

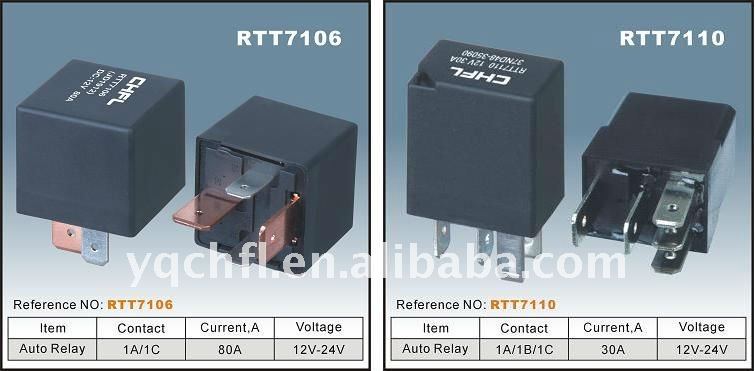

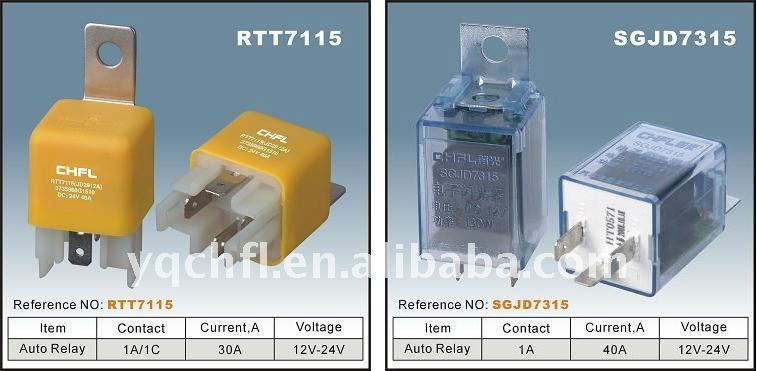

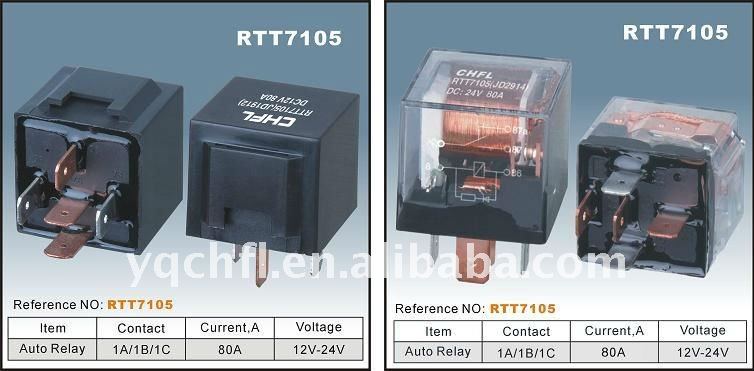

AUTO RELAY
1.Certificate: ISO9001:2000.
2.Water Proof
3.applicable for 12V and 24V(4 pins or 5 pins)
4.12 years' export exprience
Product description
auto relay,automotive relay,automobile relay
Specifications |
|
Contact Form | 1A/1B/1C |
Terminal Material | Silver Alloy |
Rated Isolation Current | 30A-80A |
Contact Resistance | 50m |
Nominal Coil Voltage | 12V-24V DC |
Coil Power Rating | 1.8W |
Breakdown Voltage | 550V AC |
Breakdown Voltage between contact and coil | 750V AC |
Insulation Resistance | 100m |
Electrical Lifespan | 100,000 times |
Mechanical Lifespan | 10,000,000 times |
Rated Temperature | 40 to 85 |
Pull-in Time | 10ms |
Release Time | 5ms |
Terminal Configuration | Plug-in or welding |
Physical Size |
|
Shell Form | Flat housing, Iron or Plastic support |
Applicable for | 12V/24V (4 or 5 pins) |
New product
RELAY SOCKET
1.Innovative Ceramic construction
2.1000 degrees Heat Resistance, Prevent melting down
3.Cheaper price.
4.Super Durable
Product description
Relay Wire Harness,Relay upgrade Wire Harness,Relay socket
You will need this heavy-duty harness to achieve the maximum performance out of the auto relay.
This heat resistance connected plugs upgrade a perfect choice along with the high wattage output relays you got.
CONSTRUCTION
CERAMICS PIECE:
Material: Steatite porcelain
Color: White
Temperature withstand: 500 °C
SHEATH:
Material: High temperature resistance PVC
Color: As required
Temperature withstand: 105 °C
ACCESSORIES:

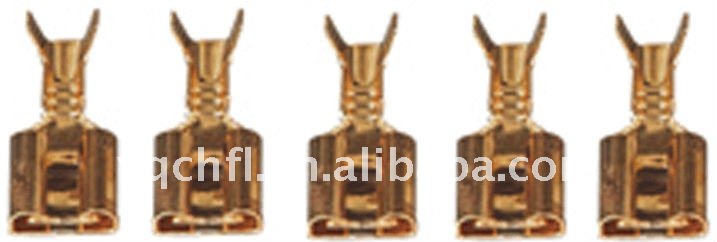

CONNECTOR:
Material:Brass,Copper, Red Copper or as required
CABLE:
Material:
Temperature withstand PVC sheath 105 °C
