Quick Details

• Color:

  optional

• Working Vacuum:

  -0.08 - -0.099

• Place of Origin:

  Chongqing.China

• Samples:

  Not Available

• Delivery Time:

  20 Days

• Packing:

  Wooden Case

• Delivery Port:

  Chongqing,China

• Max. Production Capacity:

  2000 Sets

• Export Ratio:

  81% - 90%

• OE Experience:

  No

Product Name:Best Super High Voltage Transformer Oil Purifier

Best Super High Voltage Transformer Oil Purifier

Application

Changan

Product Description:

Best Super High Voltage Transformer Oil Purifier

Application:
ZYD double stages vacuum transformer oil purifier is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110KV, 220KV, 500KV, 750KV, 1000KV power transmission equipment insulating oil, also applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. Insulating oil performance mainly decided by oils water content, If the water is not saturation in the oil, it appears as the molecular states; If water is saturation in the oil, it appears as the liquid states and stay at the bottom of container. Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump. The higher vacuum value (Close to 0 Pa), the higher speed of water molecular volatilization (The latest technology, the Vacuum oil purifier can reach to 1Pa Working vacuum value). The gas and water which dissolved in the oil will become gaseity and exhausted by vacuum pump. The oil temperature affect vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular. But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad. So we dont suggest the oil temperature excess 80C. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision.

Features:
1. Pre-Electromagnetic-valve before vacuum pump to prevent the vacuum oil flow backwards.
2. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
3. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
4. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
5.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Pre-gas-water separator before vacuum pump to prolong the vacuum pump and vacuum pump oil.
7. Double protecting system, Gas-water separator equips liquid level protector to prevent oil escape from vacuum pump
8. Optical oil foam detector and high oil level detector to prevent oil escape from vacuum pump
9. Low oil level sensor to prevent oil pump idle working, so prolong oil pump lifetime
10. Completely Intelligent pressure protector to protect oil pump and fine filter
11. Completely Intelligent vacuum controller to protect the booster pump
12. Fully intelligent temperature controller to prevent the large surge current
13. Phases protector, voltage overload protector to achieve unattended

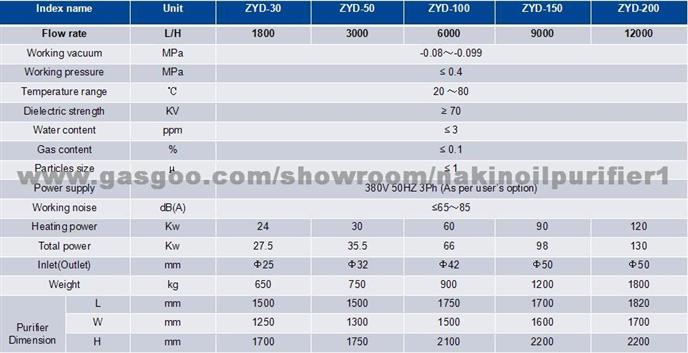

Technical Parameters:

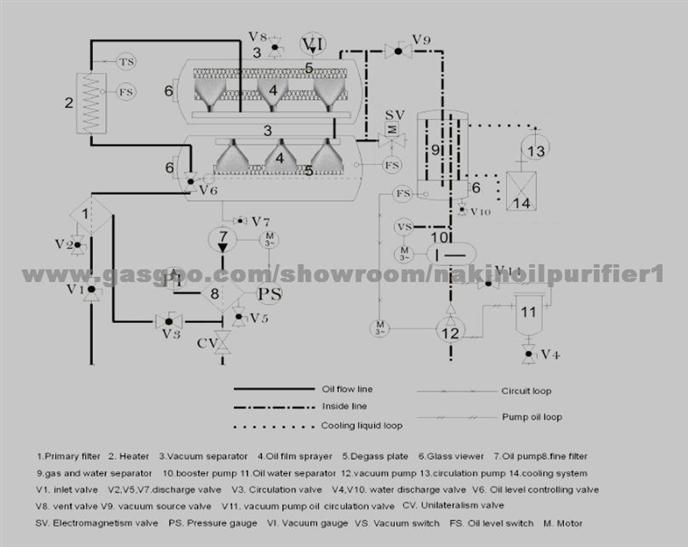

Flow Chart:



Company Introduction:

NAKIN Company is professional vacuum oil purifier/oil filtration, supply various vacuum oil treatment plants, like the transformer oil regeneration machine, online-turbine oil treatment, Old lube oil filtration, engine oil regeneration machine in good quality and competitive price.

We provide the features products as following:

JZC Vacuum Waste Oil Distillation Plant

ZYD-Double vacuum Transformer oil purifier

ZYM-Movable insulating oil purification cart

AD-Electric transformer air drying equipments

TY-Online Turbine oil treatment

TJ-Fuel oil filtration unit

TYA-Lubricating oil purifier/hydraulic oil purification

JZS-Engine oil regeneration system, waste oil recycling

BZ-Transformer oil regeneration device

PF-Press paper filter machine

JL-Portable oil piurifier,oil filtering,oil filter

BDV dielectric strength tester for transformer oil

NKEE-Oil moisture sensor

NAKIN Company is professional vacuum oil purifier/oil filtration, supply various vacuum oil treatment plants, like the transformer oil regeneration machine, online-turbine oil treatment, Old lube oil filtration, engine oil regeneration machine in good quality and competitive price.[Read More]
