Quick Details

• Place of Origin:

  Japan

• Delivery Time:

  3-5 Days

• Delivery Port:

  Shenzhen

• OE Experience:

  No

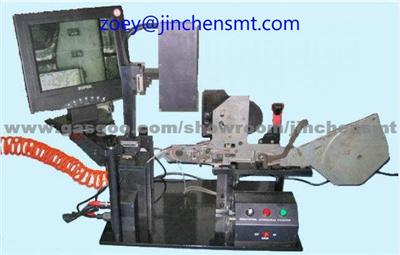

Product Name:Sanyo Smt Feeder Calibration Jig

Sanyo Smt Feeder Calibration Jig

Application

Samsung

Product Description:

Sanyo Smt Feeder Calibration Jig

1, Simple structure, easy operation, function optimization. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency

2, Accurate detection. Reclaimer position, height, strut height can be done accurately measured. To better grasp the quality status;

3, The use of 10 'color LED display, LED lighting ring, 50 times magnification CCD camera, making more compact structure, beautiful. Effectively reducing eye fatigue, improve the quality of work;

4, Easy to operate, and can simulate the placement machine, automatic continuous observation reclaimer position, a clearer grasp FEEDER continuous operation quality, and thus more effective control of polishing material ratio;

5, You can choose a variety of models such as FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG;

6, The functions and features:

1. Precise XY axis adjustment;

2. axis camera can be directly adjusted;

3. 220V/24V DC power supply;

4. black and white cross reference cursor;

5. Automatically step function;

6. bright LED display;

7. precise control fixtures feeders;

8. precise 8mm,12mm,16mm and 24 mm feeders control band.

Uses for : FEEDER calibration jig for calibration of various models

Power supply: 220V/24V

Compressed air requirements: 5kg/cm2

Dimensions: L500mm * W 350mm * H550mm

Weight: about 35kg
