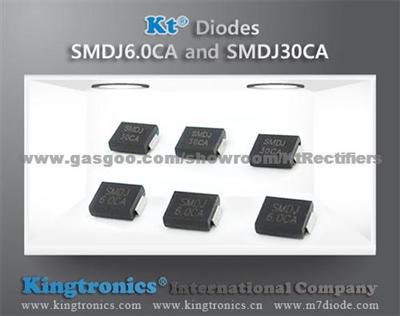

Kt Kingtronics SMDJ Series - Surface Mount from TVS (Transient Voltage Suppression) Diodes, is designed specially to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features:
For surface mounted applications in order to optimize board space;
Low profile package; Built-in strain relief;
Glass passivated junction; Excellent clamping capability;
Low inductance.
Characteristics:
Rating | Symbol | Value | Units |
Peak Pulse Power Dissipation on 10/1000 μs waveform | PPPM | Minimum 3000 | Watts |
Peak Forward Surge Current, 8.3ms Single Half Sine-wave Superimposed on Rated Load, (JEDEC Method) | IFSM | 300 | Amps |
Operatings and Storage Temperature Range | TJ, TSTG | -55+150 | °C |
