Application:
Rotating table, rotating camera and ratary lamp box
Cable wheel, winding machine
Resistors cutting machine
Robot arm
Wind turbine generator
Medical equipment, spinning LED sign board
Manufacturing and handling control machine
Notice:
Not exceed the max temperature 60C(140° F ), ambient temperature + self heating.
Vertical mounting and storage should keep the U P in the up direction.
Mounting into a shaft should keep no eccentricity.
Do not solder on the connector and terminal.
Connect the connector on the terminal only a few times, losing connection will cause heating when apply electrical power.
Vibration will cause service life shorter.
The rotary connector can be mounted by the body or plastic collar, but it can not carry mechanical loads. Another end should be connected floating hold by electric wire.
The uppers notice should be kept, otherwise, it will cause the rotary connector failure or shorten service life.
Product Model | Circuits/Current | Work Voltage | Max Frequency | Max Work Speed | Work Temperature | Insulation Resistance | Torque |
A1M | 1circuit @ 10A | 200MHz | 3600RPM | -30C-+60C | 35gm | ||
A1MT | 1circuit @ 10A | 200MHz | 3600RPM | -30C-+60C | 35gm | ||
A2S | 2 circuits @ 4A | 250VAC/DC | 200MHz | 2000RPM | -30C-+60C | Greater than 25M | 75gm |
A3S | 3 circuits @ 4A | 250VAC/DC | 200MHz | 1800RPM | -30C-+60C | Greater than 25M | 100gm |
A1M2 | 1 circuit @ 20A | 250VAC/DC | 200MHz | 2000RPM | -30C-+60C | 50gm | |

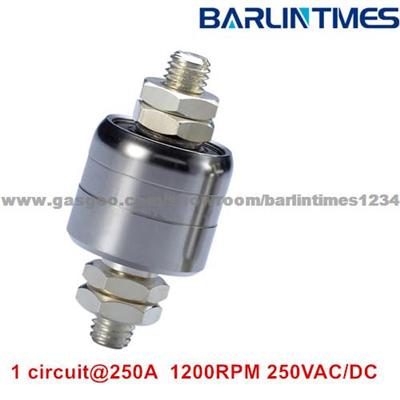

A1HH | 1 circuit @ 250A | 250VAC/DC | 200MHz | 1200RPM | -30C-+60C | 250gm | |
A1H25S | 1 circuit @ 250A | 250VAC/DC | 200MHz | 1200RPM | -30C-+60C | 250gm | |
A1H25PS | 1 circuit @ 250A | 250VAC/DC | 200MHz | 1200RPM | -30C-+60C | 250gm | |
A1H150PS | 1 circuit @ 500A | 250VAC/DC | 200MHz | 300RPM | -30C-+60C | 700gm | |
A2H | 2 circuits @ 30A | 250VAC/DC | 200MHz | 1800RPM | -30C-+60C | 200gm | |
A3M | 1 circuit @ 30A; 2 circuits @ 4A | 250VAC/DC | 200MHz | 1800RPM | -30C-+60C | 200gm | |
A3H | 3 circuits @ 30A | 250VAC/DC | 200MHz | 1200RPM | -30C-+60C | Greater than 25M | 400gm |
A4H | 2 circuits @ 30A; 2 circuits @ 4A | 250VAC/DC | 200MHz | 1200RPM | -30C-+60C | Greater than 25M | 400gm |
A6H | 4 circuits @ 30A; 2 circuits @ 4A | 250VAC/DC | 100MHz | 300RPM | -30C-+60C | Greater than 25M | 700gm |
A8H | 6 circuits @ 30A; 2 circuits @ 4A | 250VAC/DC | 100MHz | 200RPM | -30C-+60C | Greater than 25M | 1000gm |
A2H6 | 2 circuits @ 60A | 250VAC/DC | 200MHz | 600RPM | -30C-+60C | Greater than 25M | 400gm |
A1030 | 8 circuits @ 30A; 2 circuits @ 4A | 250VAC/DC | 100MHz | 100RPM | -30C-+60C | Greater than 25M | 1500gm |
A1230 | 10 circuits @ 30A; 2 circuits @ 4A | 250VAC/DC | 100MHz | 60RPM | -30C-+60C | Greater than 25M | 2000gm |
A1430 | 12 circuits @ 30A; 2 circuits @ 4A | 250VAC/DC | 100MHz | 60RPM | -30C-+60C | Greater than 25M | 2000gm |
H83016 | 6 circuits @ 30A(16.2mm through bore ) | 250VAC/DC | 100MHz | 40RPM | -30C-+60C | Greater than 25M | 2000gm |
