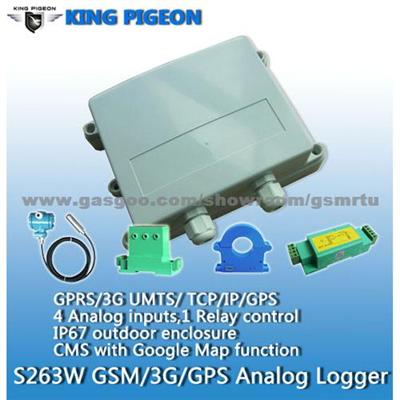

Product Name:GSM GPRS 3G WCDMA UMTS GPS Analog Data Logger

GSM GPRS 3G WCDMA UMTS GPS Analog Data Logger

Application

kingpigeon

Product Description:

OEM No/Model: S263W
S262W S263WGPRS/3G UMTS/GPS/SMS data LoggerTemperature and humidity recorderData logging with GPS trackingReal time data managerment tracking Remote monitoring RTUWireless data measurement
The King Pigeon S262W S263W Data Logger inbuilt industrial GSM and 3G WCDMA module, GPS optional. 4 channel Analog inputs (0-20mA,4-20mA,0-5V) support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.One digital relay output with NC/NO contacts controlled by alarm event,SMS command or Rejected Caller-ID(charge free).With Internal memory, S262W S263W save historical data half a year for inquiry & download by PC software via USB cable or KingCenter CMS-02 Remote Monitoring System via GPRS/UMTS/HSDPA TCP/IP, and tracking the real time GPS location with optional GPS module.Daily report, schedule upload, event upload via GPRS/UMTS/HSDPA to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.S262W/S263W used for field monitoring in worldwide, we offer communication protocol for clients to build their own monitoring software/applications.

>>>>>Features:1)GSM and 3G WCDMA band,distribute worldwide applications available2)4 channel analog input: 0-20mA,4-20mA,0-5V3)SMS command or PC Software programming4)User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)5)6 numbers for receiving input alert and relay control6)Relay control programmable when alarm thresholds exceed7)Relay control by Caller-ID with free of charge, SMS, GPRS/UMTS(*work with KingCenter CMS-02)8)Recording data on internal memory:Min interval: per 5mins, can save data on unit more than 6 monthsMax interval: per 255mins,can save data on unit more than 10 years9)Historical data download to PC (MS Excel format) via USB10)Historical data query and download remotly by GPRS/UMTS(*work with KingCenter CMS-02)11)Supports 2 Server(Master and Slave) via GPRS/UMTS TCP/IP12)Daily report, schedule upload, event upload programmable13)AC/DC Power status monitoring, AC ON/OFF alert by SMS14)Rechargeable Backup Battery inside(Approx.8hours standby)15)IP67 Environmental protection enclosure(S263W)16)GPS tracking module optional
>>>>>Specifications1) Frequency:   2G: GSM900/1800MHz,  3G: WCDMA 900/2100MHz UMTS  (default)2G: GSM850/900/1800/1900MHz, 3G: 850/1900MHz UMTS   (optional)S262W S263W: the W is an identify letter of S262 S263, all of these models with the same CE certificates.2)Input Channel: 4 Analog, 0-20mA, 4-20mA, 0-5V3)Output:  1 Relay, NC/NO contacts, 7A/125V AC, 5A/250VAC,20A/14VDC4)Power Supply :  9~24VDC 2A5)Power Consumption:  12V input Max.50mA/Average6)SIM Card Supporting:  3V SIM Card7)GSM Antenna:  50 ohm SMA Antenna interface8)Backup Battery:  3.7V/1200mAH9)Relative Humidity:  90%(condensation free)10)Installation:  35mm DIN Rail (S262W)    IP67 Enclosure (S263W)11)Connecting Wires:  2.5mm12)Exterior Dimensions:  145*90*41mm (S262W)    180*140*60mm (S263W)13)Net Weight:  250g
>>>>>Packing List1)Main unit x12)100~240VAC/12VDC 2A Power adaptor x13)Antenna x14)GPS Antenna x1 (*for GPS model optional) x15)User Manual & PC Software CD x1Size: 235 x 225 x 65mmGross Weight: 0.75KG>>>Optional accessories:1)-200~500 Temperature transducer with anticorrosion packing2)Fuel/Water level transducer3)Current/Voltage transducer4)Humidity transducer
>>>>>PC Programming SoftwareS26x Series PC Programming Tool (Windows XP and Windows 7/8 OS) Functions:a)Authorized users settingb)GPRS/UMTS Parameters settingc)Server IP and Port settingd)Ultra-Low/Low/High/Ultra-High alarm thresholdse)Query current valuesf)Data recording intervalg)Historical data inquiry and export(MS Excel format)h)SMS Daily report intervali)GPRS/UMTS data upload intervalj)Relay action settingk)Relay testl)Date & Time adjustmentm)GPRS/UMTS data transceiving debug
