1Product introduction

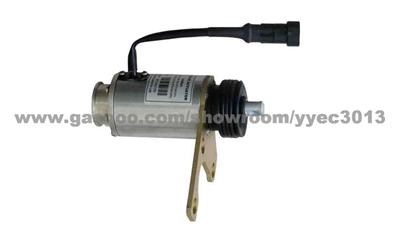

YZ03A-M series actuators are suitable for MITSUBISH Sengine.
Type YZ03A-M electric actuator is linear motion actuator of SDE.YYEC. Using self-lubricating linear bearings, unique structure design, proportional electromagnet principle. The actuator has high sensitivity, reliable performance, maintenance-free.
Type YZ03A electric actuator with high-pressure oil pump engine is hybrid installation, instead of the original mechanical governor or the original shutdown solenoid valve.
YZ03A series actuator with tachometric transducers and speed control units composed a complete high performance engine speed closed loop control system,
accurately control fuel quantity, and realize all kinds of modes of the engine speed control, it is especially suitable for the engine application field that having adjustable rate requirements. Such as generators, pumps, air compressor, etc.When the system is powered down, YZ03A series actuator has the ability to shut down engine fuel supply, to make the engine stopped, accomplish engine speed regulating and having the stop function of solenoid valve at the same time.
This actuator can be compatible with all kinds of current type speed controller, especially adapting to type ESC6000 or type ESC8000 or type ESC9000 controller of SDE. YYEC.
2Technical parameters
Performance
Maximum output force------------------------------------------------------------------------------ 40N
Stroke---------------------------------------------------------------------------------------------------- 13mm
Response time---------------------------------------------------------------------------------------- 40ms
Electrical characteristics
Response time---------------------------------------------------------------------------------------- 12VDC
Coil resistance----------------------------------------------------------------------------------------- 2.5
Coil voltage of actuators maximum output-------------------------------------------------- 8V
Rated operational current--------------------------------------------------------------------------- 1.8A
Maximum working current--------------------------------------------------------------------------- 4A
Volume weight
Weight-------------------------------------------------------------------------------------------------- 1KG
Working environment
Environment temperature--------------------------------------------------------------- -40 ~ +115
Relative humidity--------
