Quick Details

• OE Experience:

  No

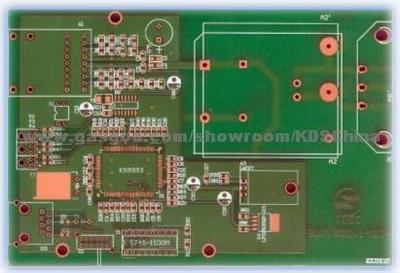

Product Name:PCB

PCB

Application

volkswagen

Product Description:

• Data Inputs- Protel, DXP, Gerber, DXF, DWG, CAM
• Major Laminate- Kingboard, ShengYi and others produce by customer special request
• Base Materials- FR4, other materials including High Tg, High CTI, Halogen Free by special requested
• PCB Maximum board size HASL: 546mm x 320mm, OSP: 630mm x 470mm, Ni/Au: 570mm x 470mm
• Rigid PCB thickness Single-
  side to Double side from 0.2mm - 3.0mm
  4 layers - 0.4mm - 3.0mm / 6 layers - 0.6mm - 3 .0mm / 8 layers - 1.0mm - 3.0mm
  10 layers - 1.20mm - 3.0mm /12 layers - 1.40mm - 3.0mm (Small run and Prototype only)
• Surface Finishing- HAL / HASL, OSP, Immersion Gold, Immersion Tin
• Copper Foil- from 0.5oz to 6oz, inner layer up to 3oz
• Min. Hole size- 0.20mm, Aspect ratio = 8
• Via holes- Copper PTH, Blind via
• HDI- Class 1 for single Blind via
• Impedance control tolerance- +/-10%
• Min. Line Width and Spacing- Max. 0.10mm / 0.10mm (4mil / 4mil)
• Solder resist mask- Liquid Photo-Image (LPI)
• Silkscreen INK- Thermal
• Profiling- Routing, V-cut, Punching, CNC V-cut, Push back

BEIJING KDS specialize in the supply of printed circuit boards (PCBs) with 1 to 14 layers, both prototype or mass: Top Quality - Low Price - Fast Turnaround. At present, production capacity of Beijing KDS plant reaches 15,000 M²/month with 400 staff. Wuhan new plant output over 30,000 M²/month ...[Read More]

Company Profile:

• Main Product:

  Pcb

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia

Factory Profile:

• Number of Employees:

  500 - 1000 People
