Quick Details

• Place of Origin:

  SHENZHEN

• Samples:

  Free

• Delivery Time:

  30 DAYS

• Packing:

  1.46SET/CTN. 2.Carton Dimensiones:48X34X36CM\ 3.GW:35.5KGS

• Delivery Port:

  SHENZHEN

• Max. Production Capacity:

  60000

• Export Ratio:

  51% - 60%

• OE Experience:

  No

Product Name:Motorized Ball Valve Belimo Type

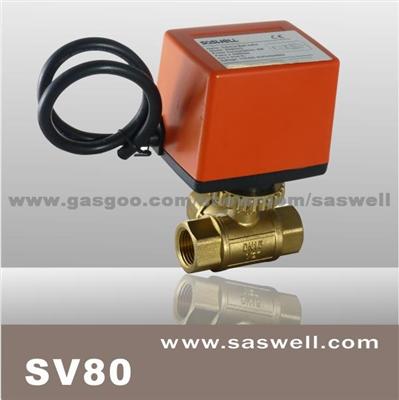

Motorized Ball Valve Belimo Type

Application

Acura

Product Description:

OEM No/Model: SV80series

  SV80 series Motorized ball valve introduction









Motorized brass ball valve features:



¨         Well waterproof and dustproof features (IP65)

¨         Actuator is insulated well to valve body and the ambient

¨         Quick and easy replacement of moving actuator

¨         Actuator can be installed after plumbing work completed, which makes for more efficient on-site installation

¨         Valve may approach the wall to mount

¨         Valve can be operated by general tools when actuator has been removed

¨         Actuator installation allows for 2 different wiring orientations thus providing ease of wiring and service

¨         Differential pressure up to 150psi,is suitable for HVAC systems with sudden high head pressure with sudden high head pressure

¨         There has no sediment at the valve bottom due to direct flow passage of valve

¨         Soft shut-off and open, to eliminate water hammer in most applications

¨         Motor doesnt bear any forces when valve is not in motion extending service life



  Motorized brass ball valve Specification:



¨         Media: chilled or hot water, 60% glycol

¨         Size: 1/2 inch ,3/4 inch & 1 inch

¨
