Product Name:Easy Heat Operat Underfloor Heating Thermostat

Easy Heat Operat Underfloor Heating Thermostat

Application

Acura

Product Description:

OEM No/Model: SAS816FHL-0

Product Name: Easy Heat Operat Underfloor Heating Thermostat
OEM No/Model: SAS816FHL-0

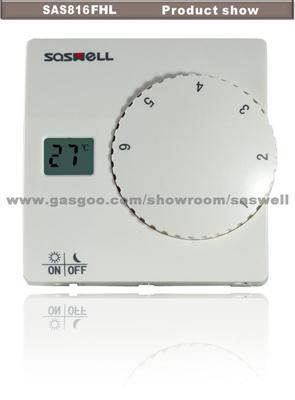

SAS816FHL-0 Non Programmable Mechinical Type Thermostat



Room thermotat SAS816FHL-0 is  a non programmable thermostat designed for floor heating system.

Big analog adjust the temperature.It's the best popular temperature in Eu,UK,CN market.



 Floor heating thermostats specification:



1.Power source 100-240VAC 50/60HZ

2.Relay contact: 250VAC 16A

3.Room temperature setting range:5°C~30°C

4.Floor temperature setting range: 5°C~40°C

5.Accuracy: ±1°F

6.Dimensions: 83mm X 83mm X20mm

7.Color: White



 Floor heating thermostats feature:





1.Battery back up ,and low Battery Indicator.

2.Room temperature easy read out by Mini LCD display ,without backlight save energy;

3.Big adjust knob is easy for older and children controlling; easy read setting temperature

4.Optional economic operation or comfort operation

5.Optional temperature display of Celsius or Fahrenheit scale

6.Compressor delay option for cooling selection

7.Day/Night switch save energy.

8.Active output for valve actuator and passive output for boiler





Underfloor heating thermsotats typical Wiring Diagram

 Thermostats details show:
