Quick Details

• Place of Origin:

  China

• Delivery Time:

  30 DAYS

• Max. Production Capacity:

  300000

• Export Ratio:

  41% - 50%

• OE Experience:

  No

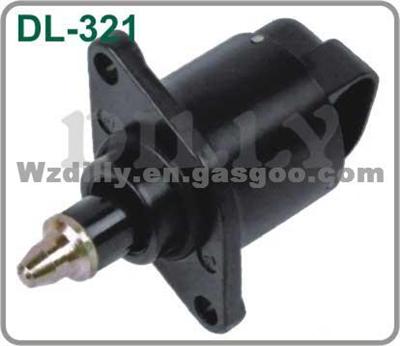

Product Name:Idle Speed Control Valve DL-321 7701204054 95644634 9564463480 CITROEN, PEUGEOT 106 205 306 405 406 806 BOXER, RENAULT, MARELLl, SlMENCE

Idle Speed Control Valve DL-321 7701204054 95644634 9564463480 CITROEN, PEUGEOT 106 205 306 405 406 806 BOXER, RENAULT, MARELLl, SlMENCE

Application

CITROEN, PEUGEOT 106 205 306 405 406 806 BOXER, RENAULT, MARELLl, SlMENCE

Product Description:

OEM No/Model: 7701204054 95644634 9564463480
DL-321
Electric Parameter

No	Item	Unit	Parameter
			Common Quality	High Quality	OEM Quality
1	Rated Operating Voltage	V	12	12	12
2	Min Work Voltage	V	10	8.5	6
3	Resistance Per Hpase	Ohm	53±10%	53±10%	53±10%
5	Current Per Hpase	mA	200	180	170
7	Step Angle	Deg	15	15	15
8	Step Increment	Mm	0.0417	0.0417	0.0417
9	Maximum Travel	Mm	10/12	10/12	10/12
10	Rated Torque (200pps)	N	>10	>15	>20
11	Operating Temperature Range	C	-40~125	-40~125	-40~125
12	Life Span	cycle	1×106	1.5×106	2.0×106


Material

Part	Common Quality	High Quality	OEM Quality
Magnet	Ferrite	Ferrite	Lanthanon
Shaft	Cu	Stainless Steel	Stainless Steel
Lubricant	NS-10197-GS	NS-8403-GS	NS-8403-GS
Rubber Band	Silica Gel	Silica Gel	Fluoro-rubber



Rui’an Dilly Auto Parts Co., Ltd. is a professional manufacturer for auto parts, together with R&D, manufacturing and sales. Dilly Co. specializs in IAC Valve, Canister Control Valve, Lambda Sensor, MAP Sensor, ABS Sensor, Crankshaft Position Sensor, Throttle Position Sensor, Knock Sensor, ...[Read More]

Company Profile:

• Main Product:

  Iac Valve

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Mid East

• Total Annual Sales:

  USD 5,000,001 - 10,000,000

Factory Profile:

• Number of Employees:

  Less than 50 People

• Shift:

  1

• Size of Factory In Square Meters:

  3,500

Research & Development:

• Capability for Synchronized Development:

  Develop according to drawing or samples provided by clients?Yes

  Develop 3-D model and prototype according to client's needs?Yes

• Lead Time for New Product Development:

  2

• Tooling Design:

  Outsourcing or Cooperation

• Source of Tooling:

  Outsourcing

• Software/Profile:

  AUTOCAD, Pro/E
