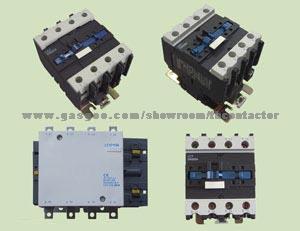

ILC1-D 4P AC Contactor
Application:
· ILC1(CJX2) series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50HZ or 60HZ, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced ac cording to IEC 60947-4.
· Specification:
Model |
Rated working current (A) | Rated heat current (A) | AC3 capacity of 4-phase squirrel-cage motor AC3(KW) | ||||||
220/230V | 380/400V | 415V | 440V | 500V | 600/690V | ||||
AC3 | AC4 | KW | KW | KW | KW | KW | KW | ||
ILC1D09004/008 | 9 | 3.5 | 20 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 |
ILC1D12004/008 | 12 | 5 | 20 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 |
ILC1D18004/008 | 18 | 7.7 | 32 | 4 | 7.5 | 9 | 9 | 10 | 10 |
ILC1D25004/008 |
