Quick Details

• Place of Origin:

  China

• Samples:

  Free

• OE Experience:

  No

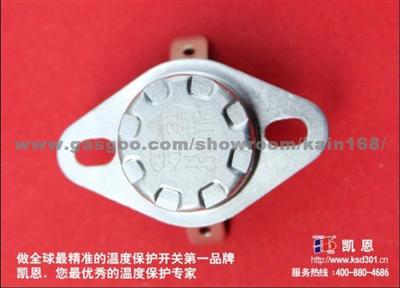

Product Name:Blender Thermo Switch from Blender Thermo Switch KSD301

Blender Thermo Switch from Blender Thermo Switch KSD301

Application

Citroen/ Fukang(china); Citroen/ Elysee(china); Citroen/ C2(china); Citroen/ C4(china); Citroen/ C5(china); Citroen/ C6(china); Citroen/ C4; Citroen/ C5; Citroen/ C6;

Product Description:

OEM No/Model: KSD301
Blender thermo switchTechnical parameters:
1.Blender thermo switch Electrical parameters:1)CQC,VDE,UL,CUL AC250V 50~60Hz 5A/10A/15A(Resistance load)
                        2)UL AC125V 50Hz 15A (Resistance load
2.Blender thermo switch Action temperature range: 45~160(Optional); temperature accuracy: ±2 ±3 ±5 ±10
3.Recovery and action temperature difference: 8~100(Optional)
4.Connection method: Insert the terminal 250# (bending angle: 0~90° optional); Insert the terminal 187# (bending angle: 0~90° optional; thickness: 0.5, 0.8mm optional)
5.Lifespan: 100,000 times
6.Electrical strength: No spark or breakdown for 1min at AC 50Hz 1800V
7.Contact resistance: 50m
8.Insulation resistance: 100M
9.Junction method: Constant-closed: the contact point disconnects when temperature rises; and contact point connects when temperature falls;
Constant-opened: the contact point connects when temperature rises; and contact point disconnects when temperature falls.
10.Casing protective class: IP00
11.Grounding method: Connection is made between the metal casing of the temperature controller and the metal part of the grounding device.
12.Installation method: installed for KI031 series: general moving ring, mini round moving ring, flat moving ring general aluminum cover with mounting hole, extra length aluminum cover with mounting hole

Dongguan Kaien Electronic Science & Technology Co., Ltd. has engaged in production of KSD301 thermo switch,BW9700 thermal protector,17AM thermal protector,bimetal thermostat ,electric kettle thermostat,mini size thermostat,water dispeser thermostat,steam garment thermostat,rice cooker ...[Read More]

Company Profile:

• Main Product:

  Ksd301 Thermo Switch, Bw9700 Thermal Protector, 17am Thermal Protector, Bimetal Thermostat , Electric Kettle Thermostat, Mini Size Thermostat, Water Dispeser Thermostat, Steam Garment Thermostat, Rice Cooker Thermostat, Electric Motor Thermostat.

• Business Type:

  Manufacturer

• Current Export Market:

  Western Europe, Eastern Europe, Eastern Asia, Southeast Asia

Factory Profile:

• Number of Employees:

  201 - 300 People
