Quick Details

• Place of Origin:

  Zhejiang, China (Mainland)

• Delivery Time:

  0

• OE Experience:

  No

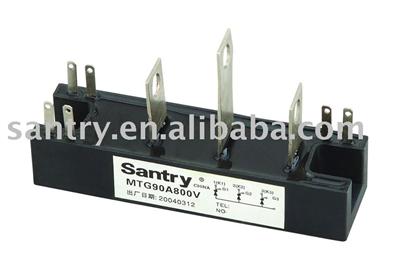

Product Name:Common Anode /Common Cathode Modules

Common Anode /Common Cathode Modules

Application

universal

Product Description:

1. Non-Insulated
2. Common anode/cathode diode and thyristor
3. MTG, MTY, MDG, MDY series

3 phase Common anode/common cathode Diode Modules --- MDG, MDY series

IF(AV)
Tc=100

VRRM (V)

VFM
V

IRRM
mA

Rjc (/W)

Tj  ()

130A

600-2000

1.6

10

0.2

-40+150

160A

600-2000

1.6

15

0.12

-40+150

200A

600-2000

1.6

20

0.12

-40+150

3 phase Common anode/common cathode Thyristor Modules --- MTG, MTY series

IT(AV)

Tc=85

VDRM
VRRM
V

VTM

V

IDRM
IRRM
mA

Rjc

/W

IGT

mA

VGT

V

Tj ()

130A

600-1600

1.6

20

0.2

≤90

≤2

-40+125

160A

600-1600

1.6

20

0.12

≤100

≤2

-40+125

200A

600-1600

1.6

30

0.12

≤100

≤2

-40+125

Founded in 1986, Wenzhou Zhongbao Electric & Electronic Factory has long been focused on research and development of power semiconductor modules. Today our business covers arm bridge modules, single/three-phase bridge rectifiers, 3-phase common anode/cathode modules ...[Read More]
