The relay has different mechanism and temperature
compensation and can be plugged in LC1-D series AC contactor.
Characteristic:
1) Fundamental parameter of the main circuit
a) Rated insulation voltage 660V
b) Rated working current 25, 36, 93A separately
c) The regulator seal of rated setting current and setting
d) Current of the thermal component (see list 1)
2) Auxiliary circuit:
a) There are one pair of N/O and N/C contact with electric insulation
b) Rated insulation voltage 500V
c) Rated frequency 50 - 60Hz
d) Uses group, rated working voltage, appointed thermal current and
rated current
border=0>

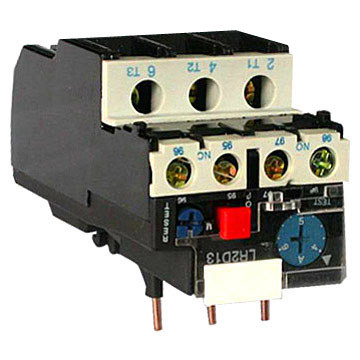

This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation
voltage 660V, rated current 0.1 - 93A for protecting the phase break when
the electric motor is overload.
