Pushbutton (switch, push button) [AS2202-11TD]

    • Application: universal
    • Market Type:After Market
    • FOB Price: Inquiry For It?
    • Payment Terms: L/C, T/T
    • Minimum Order: 100 Piece/Pieces

Quick Details

  • Place of Origin:

    Zhejiang, China (Mainland)

  • Delivery Time:

    0

  • Packing:

    Standard Carton

  • Delivery Port:

    Ningbo/Shanghai/Guangzhou

  • OE Experience:

    No

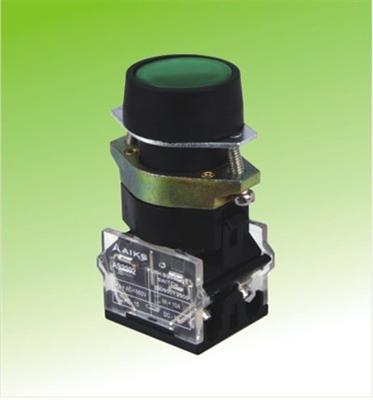

Product Name:Pushbutton (switch, push button) [AS2202-11TD]

Pushbutton (switch, push button) [AS2202-11TD]

Application

universal

Product Description:

Pushbutton (switch, push button) specification

Model number

AS2202-11TD

Mounting dimensions

φ22

Head

Round Flush type with light

Action method

Push-lock

Color code

R, G, Y, W, A, O

Contact form

SPST-NO + SPST-NC

Contact rating (AC type)

6A@220v, 4A@380V, 2A@660V

Contact rating (DC type)

6A@24V, 3A@48V, 1.5A@110V, 1A@220V, 025A@440V

Contact resistance

50mΩ max

Insulation resistance

100MΩ min

Dielectric strength

2500Vac, 50Hz for 1min

Life

Mechanical1x106, electrical5x105

Degree of protections

IP40

Rated insulation voltage

660Vac

Rated thermal current

10A

LED rated voltage (AC/DC type) and life

Approx. 40h in 6, 12, 24V; Approx. 20h in 110, 220V

Neon lamp rated voltage (AC type) and life

Approx. 20h in 110, 220 V

Ambient temperature

-25 to 55, no icing

Ambient humidity

45 to 85% RH, no-condensation


Pushbutton (switch, push button)
Head: Round Flush type with light
