Quick Details

• Place of Origin:

  Zhejiang, China (Mainland)

• Delivery Time:

  0

• Packing:

  CARTON

• Delivery Port:

  Ningbo/Shanghai

• OE Experience:

  No

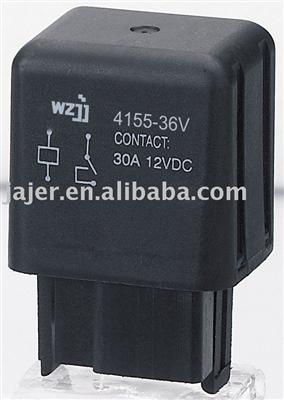

Product Name:auto relay 4155-36V

auto relay 4155-36V

Application

Universal

Product Description:

auto relay 4155-36V
1.serve as control of ciruits at auto
2.excellent shake resistance performance
3.with couple socket

auto relay 4155-36V

Features

1.outline dimensions:32*27.5*33mm

   contact change-over capacity:30A

2.contact form:1H,1D

   material:silver alloy

   max switching current:30A

   rated load:1H,25A 24VDC;1D,20A 24VDC

   rated voltage:6,12,24VDC

   coil power:1.8W

3.insulation resistance:100MΩ(at 500V)

   between coil and contact:50Hz,1,500VAC

   ambient temperature:-40—85°c

   release time:≤10ms/≤5ms

Yueqing Jiajie Electrical Co., Ltd. is located in Chinese Electric Equipment Captial. It's a professional manufacture of relays,including telecommunication relays, PCB relays, general purpose relays, large-power relays, motor relays, time relays, solid state relays and relay ...[Read More]

Company Profile:

• Main Product:

  General purpose relays,power relays,auto relays,relays sockets,telecommunication relays,pcb relays,time relays,solid state relays

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Eastern Europe, Southeast Asia
