Quick Details

• Place of Origin:

  Zhejiang, China (Mainland)

• Delivery Time:

  0

• Packing:

  Standard export carton:QTY/CTN: 30PCSCTN Size: 40*26*20G.W.: 20KGN.W.: 19KG

• Delivery Port:

  Ningbo

• OE Experience:

  No

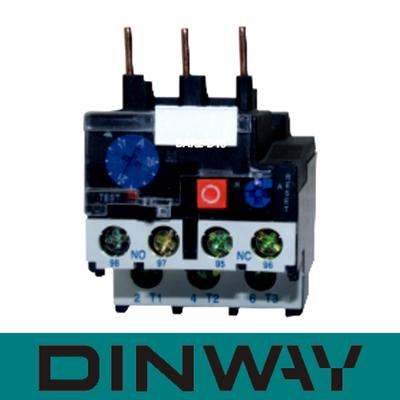

Product Name:BAR2 Thermal Relay

BAR2 Thermal Relay

Application

General

Product Description:

BAR2 Series Relay
For protecting the phase break when motor overrloaded.
Rated insulation voltage: 660V
Certificate: CE

BAR2 Thermal Relay can be used in the circuit of 50or60HZ, rated insulation voltage 660V,rated current 0.1-96A  for protecting the phase break when the electric motor is overload.
The relay  has different   mechanism and temperature compensation & can be plugged in BAC9 series  AC contactor.  It is the most advanced thermal relay in the nineties in the world.

CHARACTERISTICS

A. Fundamental  parameter of  the main circuit:
(a). Rated  insulation voltage  660V
(b). Rated working  current 25, 36,  93A separately
(c). The regulator seal of rated setting current and setting.
(d). Current  of  the   thermal  component  (see Table below)
B. Auxiliary circuit
(a). There is one pair  of NO/and N/C   contact with electric insulation.
(b). Rated insulation voltage 500V
(c). Rated frequency 50-60HZ.

SPECIFICATIONS

Type

Rated  working current of thermal relay

Thermal component

Rated current(A)

Rated setting range (A)

LR2-D13

25

BAR2-D1301

0.16

0.10-0.16

1302

0.25

0.16-0.25

1303

0.40

0.25-0.40

1304

0.63

0.40-6.3

1305

1.0

0.63-1.0

1306

1.6

1.0-1.6

13X6

2.0

1.25-2.0

1307

2.5

1.6-2.5

1308

4.0

2.5-4.0

1310

6.0

4.0-6.0

1312

8.0

5.5-8.0

1314

10.0

7.0-10.0

1316

13.0

9.0-13.0

1321

18.0

12.0-18.0

1322

25.0

17.0-25.0

LR2-D23

36

BAR2-D2353

32

23.0- 32.0

2355

36

28.0-36.0

LR2-D33

93

BAR2-D 3353

32

23.0-32.0

3355

40

30.0-40.0

3357

50

37.0-50.0

  3359

65

48.0-65.0

3361

70

55.0-70.0

3363

80

63.0-80.0

3365

93

80.0-93.0
