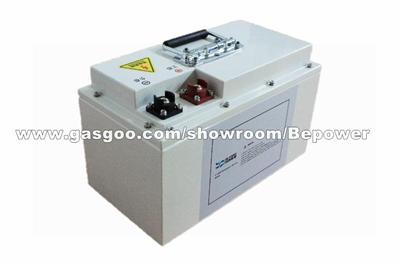

Lithium Ion Battery For Floor Cleaning Machine

Contact Supplier no sign-up required

Product Details

Company Profile

OEM No/Model: BP24100/BP2460

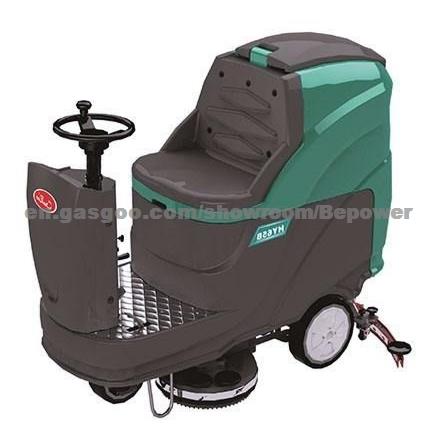

24V60/100Ah lithium ion battery for floor cleaning machine

Advantage of lithium ion battery for ground clean machine

·Cycle life more than 3000 cycles, long service life, and do not need change battery during the entire service life of floor cleaning machine.

·Flexible charge is available, such as charge during change water or rest. Don't worry about forgetting to charge or running out of battery.

·Maintenance free, Don't worry about charging during long time of storage.

·The price of the lithium ion battery is more competitive in the entire service life of the Floor cleaning machine.

Technical specification

Model	BP24100	BP2460
Electrical Specification
Nominal Voltage	25.2V	25.2V
Nominal Capacity	100Ah	60Ah
Energy	2560Wh	1536Wh
Resistance	≤15mΩ	≤10mΩ
Efficiency	≥98%	≥98%
Self-Discharge	3% per month	3% per month
Cycle life	3000 cycles @80% DOD	3000 cycles @80% DOD
Charge specification
Standard charge	Constant current 25A. Constantan voltage 29.2V, to charge current 5A cut-off @25±2.	Constant current 15A. Constant voltage 29.2V, to charge current 3A cut-off @25±2.
Standard charge time	Approx. 5h	Approx. 5h
Max. Charge current	100A	60A
Charge Voltage cut-off	29.2V (1±0.2S)	29.2V (1±0.2S)
Charge temperature	-2055	-2055
Discharge specification
Max. Constant discharge	100A	60A
Peak discharge current	200A (30S)	120A (30S)
Max. peak discharge current	no less than 300 (5s)	no less than 200 (5s)
Discharge voltage cut-off	20V	20V
BMS discharge cut-off	18.4V	18.4V
