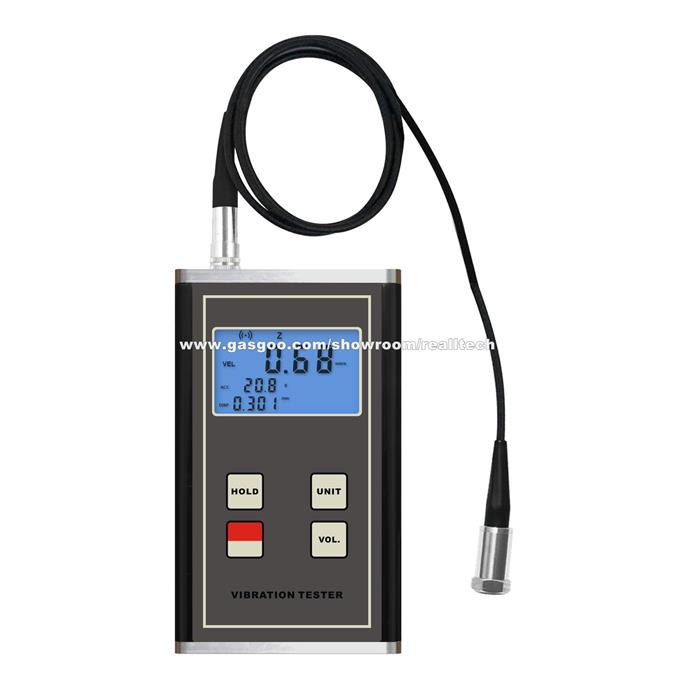

Vibration Meter VM-6370

    • Application: Acura, Alfa romeo, Aston ...
    • Market Type:After Market
    • EXW Price: Inquiry For It?
    • Payment Terms: Paypal
    • Samples: Not Available
    • Minimum Order: 1Piece/Pieces

Quick Details

  • Place of Origin:

    China

  • Samples:

    Not Available

  • Delivery Port:

    Guangzhou

  • OE Experience:

    No

Product Name:Vibration Meter VM-6370

Vibration Meter VM-6370

Application

Acura; Alfa romeo; Aston martin; audi; Aux; AC Schnitzer; AIANTU; AK; ALPINA; Arash; ARCFOX; Baolong; Beiqi; Bentley; BMW; Bugatti; Buick; BYD; BAIC BJEV; BAIC MOTOR; BAW; BENZ; BESRURN; BISU; BJC; BORGWARD; Brabus; Brilliance; cadillac; Changan... More

Product Description:

Vibration Meter VM-6370
1.Spec:Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
2.Features:
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
3.Specifications:
Sensor:PiezoelectricTransducer
Measuring Range:Acceleration0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak                                         Velocity0.01~400mm/s 0.004~16.0inch/sTrue RMS                                                               Displacement0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range:Acceleration10Hz~10kHz
                              Velocity10Hz~1kHz                                                                                                                 Displacement10Hz~1kHzAccuracy5% of Reading+2 digitsOperating Conditions:Temperature0~50ºC,Humidity<90%RH;
Power Supply:2x1.5V AA(UM-3)Battery;
Dimensions:130x76x32mm;
Weight:340g(Not Including Batteries);
Standard Accessories:Main Unit,Piezoelectric Transducer,Powerful Rare Earth Magnet,Probe(Cone)&Probe(Spherical),Carrying Case(B04),Manual Book;
Optional Accessories:Headset,RS-232C Data Cable with Software,Bluetooth Data Adapter with Software.
