Quick Details

• Type:

  Battery indicator

• Size:

  Surface mount: hole pitch 44.5mm, panel cutout: 37*25mm

• Car Make:

  Forklift, golf car, and other battery powered vehicle or equipment

• Place of Origin:

  Shanghai China (Mainland)

• Brand Name:

  Shanghai Betung

• Model Number:

  HT0624HR-48

• Water proof:

  IP 65

• Certification:

  CE

• Matched battery sets:

  48V Lead acid 1.73-2.05VPC

• Display:

  10 tri-color LED bar

• Place of Origin:

  Shanghai China (Mainland)

• Packing:

  100 units per carton, 4.5 kgs

• Delivery Port:

  SHANGHAI

• OE Experience:

  No

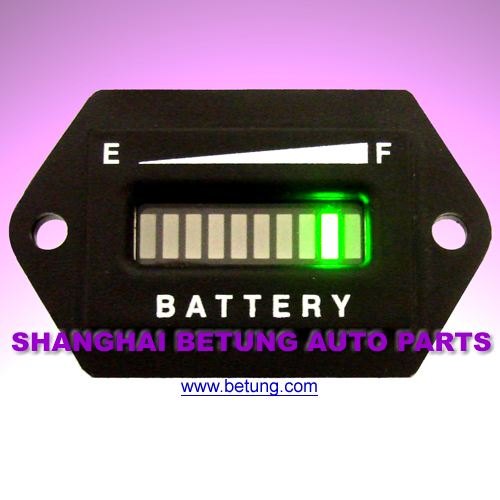

Product Name:Hexagon Battery Indicator 48V with overdischarge protection

Hexagon Battery Indicator 48V with overdischarge protection

Application

all

Product Description:

Hexagon Battery Indicator 48V

 (HT0624H)

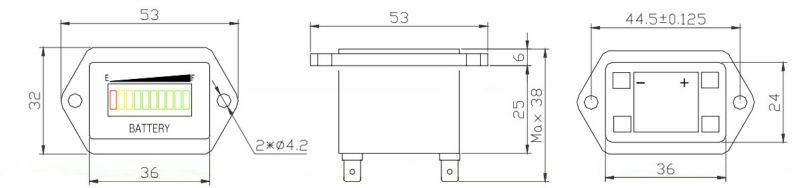

Outside Dimensions

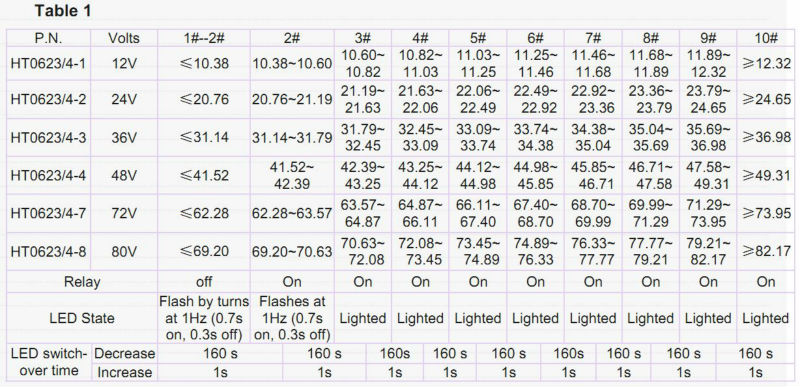

Battery Indicator General Specifications:

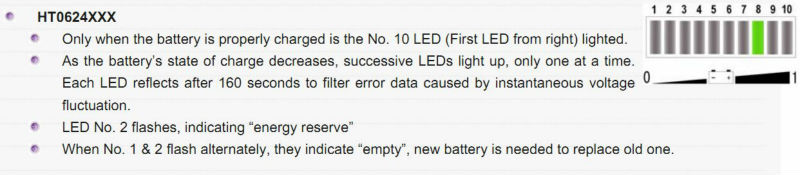

Display

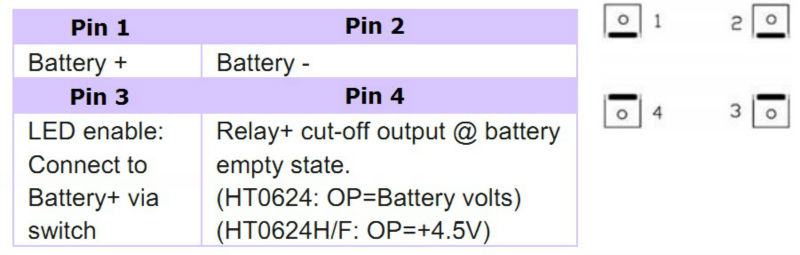

Installation

EEPROM memory benefits:
When powered on, instrument shows the memorized state last time when it's shut off,
It can automatically filter wrong information affected by instantaneous voltage fluctuation.

Battery indicating range can be customized made.

Overdischarge protection:

Cut off voltage output when battery voltage is low.
