Quick Details

• OE Experience:

  No

Product Name:ASTM D2500 Standard Oil Cloud Point Tester

ASTM D2500 Standard Oil Cloud Point Tester

Application

Oil Cloud Point Tester

Product Description:

OEM No/Model: GD-510F1

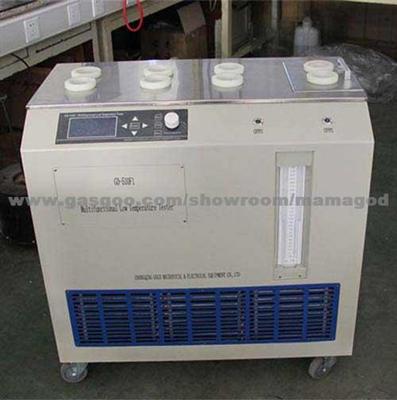

ASTM D2500 Standard Oil Cloud Point Tester I.Brief Introduction GD-510F1 Multifunctional low-temperature flowability tester is designed and made as per test standards GB/T 510,GB/T 3535,GB/T 6986 and SH/T 0248 of People's Republic of China. It is suitable to make determinations of pour point, cloud point, solidifying point and cold filter plugging point of petroleum products. This instrument can also be used to do these tests according to ASTM D97 and ASTM D2500. II.Main technical features 1. It is multifunctional instrument. It can be used to do determinations of pour point, cloud point, solidifying point and cold filter plugging point of petroleum products. 2. Floor type. It is equipped with four wheels at bottom. Convenient to move. 3. Four troughs with eight baths. Each two baths in one trough are isothermal.The minimum temperature can reach –70°C.The temperature control accuracy is ±0.5°C. 4. It adopts special technology to make it no need to use cooling liquid in the cold trough. The cooling speed is rapid.Easy to use and high efficiency. 5. It is equipped with LCD screen. The control panel is easy to operate. III.Main technical specifications and parameters 1. Power supply: AC 220 V±10%, 50 Hz; 2. Controlling temperature of cold bath: (1) Cold trough I: 0 °C, ±0.5 °C, Temperatures in two baths are equal. (2) Cold trough II: 0 °C, -17 °C, ±0.5 °C, Temperatures in two baths are equal. (3) Cold trough III: -17 °C, -34 °C, ±0.5 °C, Temperatures in two baths are equal. (4) Cold trough IV: room temperature~-70 °C, ±0.5 °C, Temperatures in two baths are equal. 3. Refrigeration system: a new type refrigeration compressor. 4. Ambient temperature: ≤30 °C 5. Relative humidity: ≤85% 6. Total power consumption: ≤1700 W

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing oil treatment equipment. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our ...[Read More]

Company Profile:

• Main Product:

  Oil Tester

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa
