Product Name:Low Pressure Wax Oil Distillation Tester

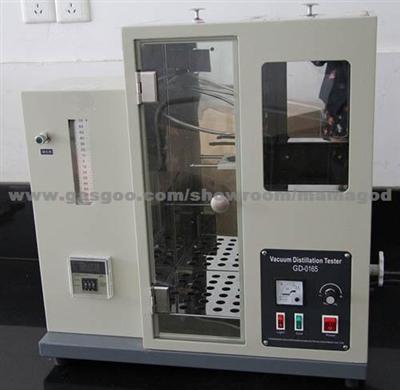

Low Pressure Wax Oil Distillation Tester

Application

The instrument is designed and made as per the industry standard of People's Republic of China SH/T0165-92 Test Method for Distillation of High Boiling Point of Petroleum Productsat Reduced Pressure.

Product Description:

OEM No/Model: GD-0165
I.Brief Introduction of Distillation Tester The instrument is designed and made as per the industry standard of People's Republic of China SH/T0165-92 Test Method for Distillation of High Boiling Point of Petroleum Productsat Reduced Pressure. It is suitable to determine the distillation characteristics of high boiling point petroleum products, such as wax oils, lubricating oils, etc. II.Main technical specifications and parameters of Distillation Tester 1. Power supply: AC 220 V±10%, 50 Hz 2. Heating power: (1) Heater for distillation flask: 1000 W (2) Heater for receiving flask: 350 W 3. Heating power for distillation flask: 0W to 1000 W, adjustable 4. Temperature range for air bath of receiving flask: room temperature to 100 °C 5. Temperature sensor in the air bath: Pt100 platinum resistance 6. Temperature controlling mode for air bath: By a temperature controller 7. Temperature controlling accuracy: ±1 °C 8. Cubage of buffer vessel: 1000 ml 9. Max. Residual pressure of vacuum pump: ≤2 mmHg 10. Illumination light in the air bath of receiving flask: Electricity-saving lamp 11. Working condition: (1) Ambient temperature: 5°C to 35 °C (2) Relative humidity: ≤85%
