Quick Details

• Place of Origin:

  Zhejiang, China (Mainland)

• Delivery Time:

  0

• Packing:

  1)24pcs/ctn2)1pcs/foam box

• Delivery Port:

  NINGBO/SHANGHAI

• OE Experience:

  No

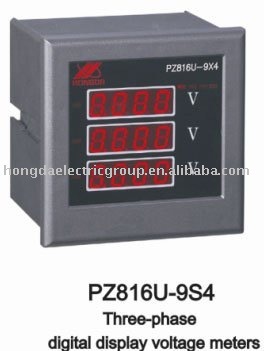

Product Name:voltage meter(advantages of high accuracy,better isolation,atable performance antivibration)

voltage meter(advantages of high accuracy,better isolation,atable performance antivibration)

Application

auto

Product Description:

GENERAL

Seies X display electric measurement meters can be matched With transformer, bleeder,current shunt divider,electrical parameters trans-mitter to measure electric parameters such as voltage ,current,power,power factor,phase angle,fequency,and display in form of muneral or LED bar Some of products contain 4-20mA or 0-5V analog output.This series prod-ucts has advantages of high accuracy,better isolation,atable performance antivibration,so it can directly replace previous pointer instruments It meets the requirements of national standard GB/T13978-1992.

technical data

Technical parametersValureNormal valueNormal valueVoitage:100V200V380V,
Current:1A5A or ordered by customerOverloadCurrent:continual 1.2 times,instantaneous 10 times/1s;
Voltage:continual 1.2 times,instantaneous 2 times/1sFrequency4565Hz or DCAccuracy class0.5OutputTransmit4-20mA0-20mA0-5V and so onCommunicationRS485 Modnus Protocol, 1 Start bit, 8 Data bit, 1 Stop bit, 2400/4800/9600bpsAlarm2-way passive relay; 1A/30V DC, 1A/220V AC;
high,low,rising edge,falling edge mode,hysteresis coefficient can be set any valueDisplayLED display, range in -99999999, ratio can be set any value,alarm displayPower supplyVoltage rangeACDC100270VPower consumption5VAInsulation resistance≥100MΩIsolation voltage2KV/1min AC RMSMTBF≥50000hEnvironmentTemperatureWork:-10+55,Storage:-25+70Humidity≤93%RH In the place without dew and corrosive gasAltiude≥2000m
