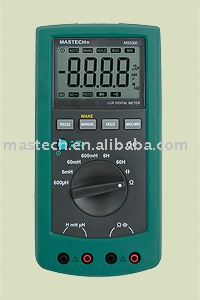

AUTORANGE LCR METER
FEATURES Designed to international safety standard IEC1010-1 The over-molding rubber case protects the meter to be stronger The test data can be transferred to PC through an full isolated optical RS232C interface A tilt stand provides position flexibility for viewing and operating the meter SMT application Resistance: 600/6k/60k/600k/6MΩ±1.0%, 60MΩ±1.5% Capacitance: 6nF±2.0%, 60n/600n/6μF±1.0%, 60μ/600μ/6mF±1.5% Inductance: 600μH±2.5%; 6m/60m/600mH±1.5%; 6H:<4H ±2.8% >4H ±5.0%; 60H:<40H ±3.5% >40H Unspecified Autorange and manual rangeData hold MAX. /MIN. value measurement Auto power off / disable auto power off Power: 6 × 1.5V (AAA Type) Size: 200mm × 100mm × 40mm Weight: Approx. 550g (including battery)
