Quick Details

• Weight:

  2.8kg

• Length:

  230mm

• Width:

  130mm

• Voltage:

  24v

• Delivery Time:

  0

• Packing:

  box

• OE Experience:

  No

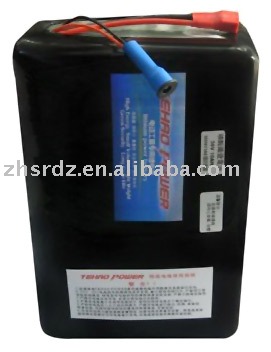

Product Name:24V 9AH LiFePO4 E-Bike Battery

24V 9AH LiFePO4 E-Bike Battery

Application

General

Product Description:

The small volume,High energy,light weight,green security,long cycle life, Own development,Weight :2.8kg 24V10.8AH LiFePO4 batter

The small volume,High energy,light weight,green security,long cycle life, Own development.
Aluminum alloy outer covering. 250W not brushes the electrical machinery, May continue 30km
Nominal Capacity : 10800mAh  10.8AH
Nominal Voltage : 24V
Cut-off voltage :18V
Standard charge method CC/CV:
Charging the cell initially with constant current at 2000mA
and then with constant voltage at 29.2V till charge current <200mA.
Max. charge current : 5000mA
Max. continuous discharge current : 10A
Burst discharge current :30A
Standard charge :2000mA*6hrs
Rapid charge : 5000 mA*3hrs
Pack dimension:
Aluminum alloy outer covering
Thickness  Max  80mm
Width       Max  130mm
Length      Max  230mm
Volumetric Energy density : 345WH
Weight (Approx.) : 3500g
Cycle Life(pack) :1500 Cycles >60%
Available capacity > 96%  (18V cut off)
