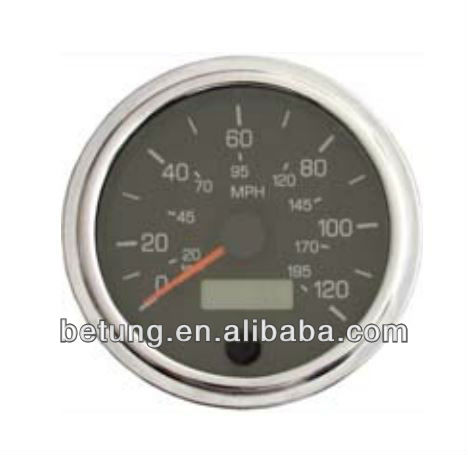

SHANGHAI BETUNG's speedometers are well known for their reliability and extensive applications. These speedometers are driven by signals generated from a pulse sensor. They function over a broad range of applications by using programming switches for programmability.
Speedometer:

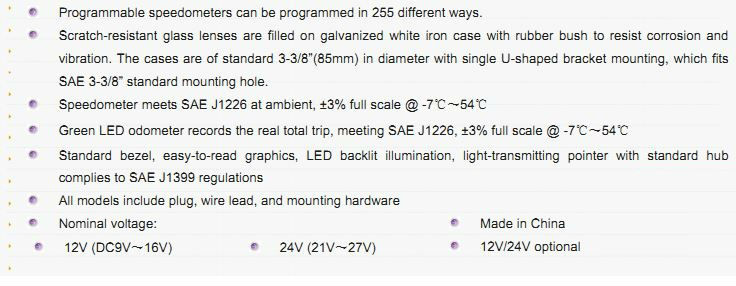

Features:
| Operating Environment | |
| Operating voltage: | 12V (9V16V) |
| 24V (21V27V) | |
| 12V/24V optional switches | |
| Tech Info | |
| Accuracy: | ±3% comply to QC/T595-1999 specifications on automobile speedometer |
| Signals: | Input signals are programmable with programming switchs |
| Warranty: | 1 year from delivery |
| Scales: | Dual scales in both metric and English measures |
| Exterior | |

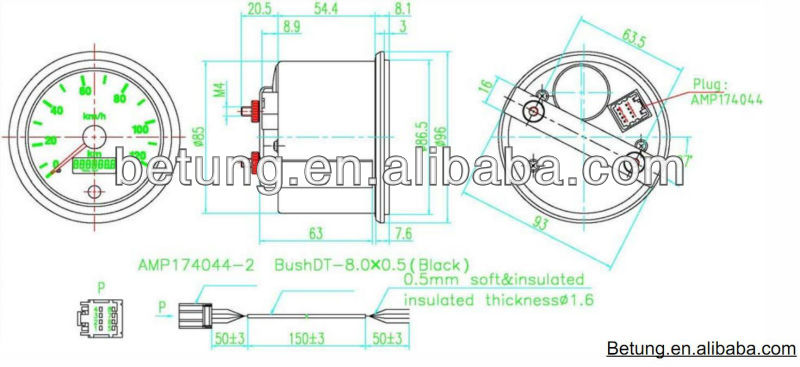

| Size: | Galvanized white case of standard 3-3/8" (85mm) |
| Color: | Standard bright chrome bezel |
| Red pointer with black hub | |
| Others: | Easy-to-read graphics |
| Single U-shaped bracket mounting | |
| With green LCD odometer for total trip | |
LED backlit illumination, with illunination off, graphics in white, with illumination on graphics in blue | |
| Packing | 36 pcs per carton |
| Inner packing: | Each packed in a well protective box with transparent PVC window and inside liner. |

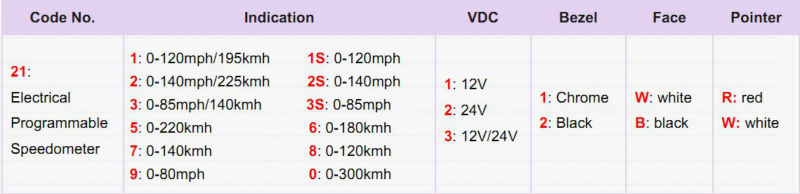

How to order:

As the only representative of China's largest private owned speedometer manufacturer to heavy duty, marine, and automotive markets, SHANGHAI BETUNG offers a vide variety of speedometers specifically for your needs. SHANGHAI BETUNG also customizes your speedometer applications. Indicationg range, face color, operating voltage, bezel and needle type can be customized.
