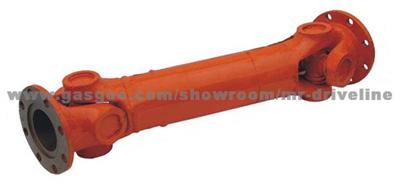

Product Name:Industrial SWC Drive Shaft

Industrial SWC Drive Shaft

Application

heavy-duty

Product Description:

SWC fork-type the whole cross-axis Universal Couplings

Scope
SWC Type Universal Couplings mainly applied to steel rolling machinery, hoisting and conveying machinery and other heavy machinery, to connect two different axes of the shaft system. Its turning diameter of 100-620mm, transmission rated torque 1.25-1000KN.m, axis CORNER 15-25.

Structural characteristics
Reasonable structure, safe and reliable, using integrated fork head, eliminating the bolt clamping housing (cover) the weak link, completely avoid the common bolts loose or break the vicious sabotage, service life than any other type of connection shaft devices increased by 30% -50%.
High loading capacity.
Transmission efficiency, transmission efficiency as high as 98.7% -99.9%, for a significant energy-saving high-power transmission, can reduce the power consumption of 5% -15%.
Transmission smooth, low noise, general noise 30-40dB (A).

Type
SWC-type universal coupling into BH, BF, DH, CH, WH, WF, and WD 7 kinds of patterns.
