Quick Details

• Position:

  Rear

• Place of Origin:

  Hebei,China

• Samples:

  Charge

• Delivery Time:

  Within 30 Days After Receive Your Deposited

• Packing:

  One 20 Feet Container Can Load 58 Pieces In Bulk

• Delivery Port:

  Tianjin

• Max. Production Capacity:

  600 Pieces Per Month

• Export Ratio:

  81% - 90%

• OE Experience:

  No

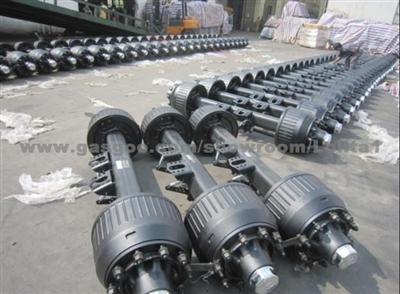

Product Name:German Type Trailer Axle 16ton

German Type Trailer Axle 16ton

Application

trailer axle.semitrailer axle

Product Description:

German Type Trailer Axle 16ton

Axle Feature:
1.BEAM: use 20Mn2 seamless pipe, through one piece press forging and special heat treatment, which has great over loading capacity and high intensity.
2.HUB: can assembly ECO Hub system.
3.HEART TREATMENT: special heart-treated, low-alloy steel axle beam, offer more stability, greater capacity and lighter weight.
4.ABS :easy for ABS installation.
5.HUB CAP: New 100%tight fit hub cap with additional o ring, provide optimum.
6.SPINDLE:Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability, the bearing position is processed by the method of hardening operation,t here fore, the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.
7.BRAKE LINING: has high performance, non-asbestos, non-pollution, and long using life, For easy checking and replacing, it also comes with the position of the exhausting to remind customer to check and maintain.
8.BEARING:is adopted with the domestic top brand bearing, with the advantages of over loading capability, high rotating speed, good intensity, abrade resistant and heat resistant.
9.PROCESS:use double side single hole boring lathe and double side three hole boring lathe, which process the both sides of axle body at same time to insure the axle concentric.
10.BOLT:are made of alloy material, which has the capability of high intensity, well streth &bends intensity.
11.GREASE:use international famous brand grease, which can provide high lubricating performance and protect bearing well.Axle Feature:

More Specification:

1.Changjian axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.
2. Changjian axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.

3.Changjian axle spindle is connected by the by submerged -arc welding, which make the whole beam more reliable and solid.

4. Changjian axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.

5.Changjian axle grease lubricant is supplied by EXXON Mobile which could provide high lubricating performance and protect bearing well.

6.Yuanzheng brake lining is high performance, non-asbestos, non-pollution and long service life.To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.

7. Changjian bearing is adopted famous brand in China, with the advantages of over loading capability, High rotating speed, good intensity, abrade resistant and heat resistant.

8. Changjian wheel hub and brake drum use the international standard material of ball iron and gary iron separately, which has the advantages of over loading capability, abrade resistant, heat resistant and do not distort.

9. Changjianaxle be National Automobile Monitor and Inspection Center certified ,axle shaft that undergoes.
