Quick Details

• Position:

  Rear

• Place of Origin:

  China

• Samples:

  Charge

• Delivery Time:

  20 Days Upon Receipts Of 30% Deposit

• Packing:

  Pallet

• Delivery Port:

  Xiamen

• Max. Production Capacity:

  3000000

• Export Ratio:

  31% - 40%

• OE Experience:

  No

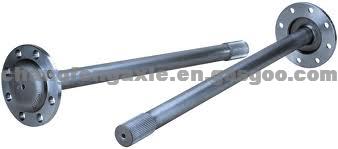

Product Name:Axle Shaft for Commercial Vehicle

Axle Shaft for Commercial Vehicle

Application

Commercial Vehicle

Product Description:

Type:Axle & Axle Shaft

Material 40 Cr

Shaft Dia.: 52.5±0.6

Total Length: 960/ 980/ 998/ 1000/ 1030 +15±3

Oil Seal Seat Dia: 60(0~-0.1)

Flange Plate Dia.: 213~216

Bolt Hole: 8-17.2±0.2

Active Spline Length80

Spline DiaF/G: 59.667 / 56

Spline Spec.: 1.667-34

Hardness: HRC52-58

Surface Mid Frequency Quenching

Hardened Layer Depth : 6~10mm

Advantage:

1. High grade raw material
2. Hardening and Tempering pretreatment

Fujian Changfeng Axle Manufacturing Co. Ltd is a HK enterprise invested and held by Changfeng Holding (HK) Ltd. Changfeng Axle has been listed on the HK Stock Exchange (stock code: 1039) since September 2010, which is the first overseas-listed company of Axle industry in China. Located at the ...[Read More]

Company Profile:

• Main Product:

  Axle Assembly, Axle Shaft, Front Axle Beam, Axle Housing, Brake Drum, Wheel Hub, Axle Differential & Reducer, Steering Knuckle, Crown Gear & Pinion, Train Spare Parts (Bolster and Side Frame)

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania

• Total Annual Sales:

  More than 100,000,000

Factory Profile:

• Number of Employees:

  Above 2000 People

• Shift:

  2

• Size of Factory In Square Meters:

  533,360

• Certification:

  TS16949, TS16949, TS16949

• Equipment Name:

  Numerical Control Hardening Machine, Four Pillars Double Acting Pre-mould Machine, Frame-type hydraulic press with 8000T capacity, Kuka Robot

Research & Development:

• Capability for Synchronized Development:

  Develop according to drawing or samples provided by clients?Yes

  Develop 3-D model and prototype according to client's needs?Yes

• Lead Time for New Product Development:

  2

• Tooling Design:

  Design Internally

• Source of Tooling:

  Made Internally, Outsourcing

• Software/Profile:

  AUTOCAD
