Quick Details

• Position:

  Front

• Place of Origin:

  China(Mainland)

• Delivery Time:

  Within 30 Days After Receiving Payment

• Packing:

  As Per Customers' Request

• Delivery Port:

  Xiamen

• Export Ratio:

  41% - 50%

• OE Experience:

  No

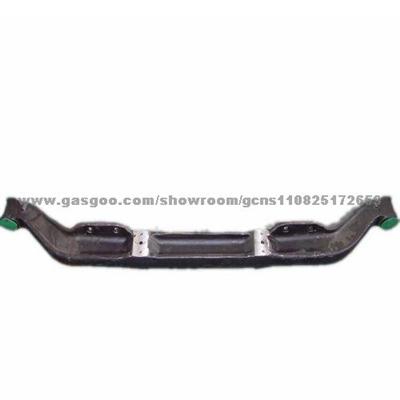

Product Name:Forged Front Axle 3T 145

Forged Front Axle 3T 145

Application

Mercedes Benz, Mitsubishi, Toyota, volvo

Product Description:

Performance:

Product Name:Forged Front Axle 3T 145

Application:General

Model:3T 145

Type:Axle & Axle Shaft

Load : 3T/3.5T

KingPin CenterDis.: 1592/1737 mm

Leaf Spring Dis.: 750/830/820/851mm

Leaf Spring Hole Dia.: 17/ 21

Fall Head K1/K2 : 65/35  70/35

King pin Inclinaiton Angle: 6°/7°

U-bolt Hole Distribution: 112x108/94x110/99x105/94x100

I-shaped Beam Height: 85/82

Leaf Spring Width(F1/F2): 150/52 146/52

I-shaped Beam Width(F3/F4): 75/75 74/74

Advantage:
1.  Automatic forging line
2.  8000T capacity press equipment
3.  High grade raw material

Fujian Changfeng Axle Manufacturing Co. Ltd is a HK enterprise invested and held by Changfeng Holding (HK) Ltd. Changfeng Axle has been listed on the HK Stock Exchange (stock code: 1039) since September 2010, which is the first overseas-listed company of Axle industry in China. Located at the ...[Read More]

Company Profile:

• Main Product:

  Axle Assembly, Axle Shaft, Front Axle Beam, Axle Housing, Brake Drum, Wheel Hub, Axle Differential & Reducer, Steering Knuckle, Crown Gear & Pinion, Train Spare Parts (Bolster and Side Frame)

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania

• Total Annual Sales:

  More than 100,000,000

Factory Profile:

• Number of Employees:

  Above 2000 People

• Shift:

  2

• Size of Factory In Square Meters:

  533,360

• Certification:

  TS16949, TS16949, TS16949

• Equipment Name:

  Numerical Control Hardening Machine, Four Pillars Double Acting Pre-mould Machine, Frame-type hydraulic press with 8000T capacity, Kuka Robot

Research & Development:

• Capability for Synchronized Development:

  Develop according to drawing or samples provided by clients?Yes

  Develop 3-D model and prototype according to client's needs?Yes

• Lead Time for New Product Development:

  2

• Tooling Design:

  Design Internally

• Source of Tooling:

  Made Internally, Outsourcing

• Software/Profile:

  AUTOCAD
