Quick Details

• Place of Origin:

  Zhejiang, China (Mainland)

• Delivery Time:

  0

• Delivery Port:

  Ningbo or Shanghai Port, China

• OE Experience:

  No

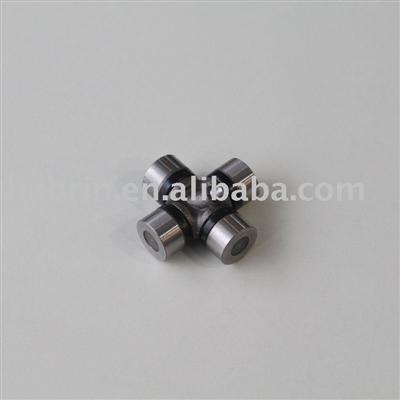

Product Name:9-37300-609 Universal Joint Cross Assembly

9-37300-609 Universal Joint Cross Assembly

Application

Universal

Product Description:

High quality and reasionable price;
Product detail information offered;
Stable delivery time;
Small quantity order accepte

Dear Customer,

    Thank you for browsing our universal joint products. Please find general introduction for our automobile universal joint cross assembly products as following:

Material:
    Normally we are using 20Cr or 20CrMnTi gear steel, as chinese standarded alloy steel for the cross spider of our universal joint cross assembly and the glove bearing is also based on such material. Also we can make the u-joint as you requested material when the quantity is acceptable for production lot. For the needle roller, the material will be GCr15 bearing steel. High-quality materials are used for our accessarries such snap ring, NBR seal rings, straight or jointed hydraulic grease nipples, and general purpose lithium base grease for automobile.

Application:
   A power transmission universal joint cross assembly is widely used in automobile types including: middile and high end salon, off-road vehicles, most of the trucks, agriculture machinery, mine and heavy-duty machine, specifical purpose vehicles.

Feature:
   A universal joint is fitted between the driveshaft and the differential axle to transmit power through the axis of rotation. Perfectly smooth rotation is required, in order to handle the constantly changing angles of the rear axle caused by the vertical movement of uneven surfaces transmitted through the suspension system. In other words, a universal joint efficiently transmits power through both fixed and fluctuating angles. Moreover, since the universal joint is lightweight and compact with superior durability, it has proved to be a safe and positive product for power transfer in Automotive and Industrial applications. In recent years, we have been working to develop and produce the press type bearing which is aimed at improvement in intensity and durability and reduces cost further.

Structure:
    A universal joint has four needle roller bearings that provide the strength and life which is most important and both the axes of the spider are inserted into two yokes. In the bearing, a seal is located to prevent dust, water, etc.from ingress and to prevent grease egress. For heavy duty vehicles with high torque transmission, such as large size vehicles and various industrial machine vehicles, a wing type (3 kinds: block, wing, delta) is used. Bolt-fastening mechanism and key-way are incorporated to the bearing and a precise circle is on its back. By receiving the torque through the key-way, even if a bolt is loosely tightened, the shearing stress does not apply to the bolt.

Brand Covering:
    Our universal joint product ranges covering hundreds of vehicle make brand, such as: Toyota, Nissan, Mitsubishi, Mazda, Isuzu, Faw, Dongfeng, Beijing. Some of our products can also matchs the model number of GMB, Yoko, Matsuba, Prec. Spicer, Neapco, CHB, GMGR etc. bearing brands. We also can supply the product under your sample or drawing request.

    Please kindly contact us to get our high-quality and low price product by click "contact supply" bottum! Thank you for your attention, wish you will have a good day and a good luck for whatever you are searching for.

Yours Sincerely
Qian Dongsheng (Mr.)
Manager of Foreign Trade Department.

Hangzhou Brin Import & Export Co., Ltd.

P.S.: Related Products:

GUIS-52

GUIS-58

GUIS-64

GUIS-67

GUM-75

GUM-80

GUM-81

GUM-87

GUM-88

GUM-91

GUM-93

MB000267

GUMZ-1

GUMZ-3

GUN-27

GUN-28

GUN-29

GUN-32

GUT-11

GUT-12

GUT-13

GUT-17

GUT-20

GUT-21

GUT-23

GUT-24

GU-207

GU-500

GU-1000

GU-1100

GU-2000

GU-2050

GU-2200

GU-3500

5-4X

5-115X

5-153X

5-278X

5-160X

5-178X

2101-2202025

21211-2202025

804704-K5

991.1431.0082

K69.025

BJ-1305

CA-141

NJ-130

EQ-140

ST-1538

ST-1638

ST-1847

ST-1948

GUA-1

Other Names of Universal Joint Cross:
Automobile Universal Joint Cross Assembly, Auto Universal Joint Cross Assembly, Automobile U Joint Cross Assembly, Auto U-Joint Cross Assembly, Automobile Cardan Joint Cross Assembly, Auto Gimbal Joint Cross Assembly. Auto Cross Joint Assembly Etc.

Hangzhou Brin Universal Joint Co., Ltd., introduces itself as a professional manufacturer, exporter and supplier of Cardan, Gimbal, U Joint, Cross Joint and U-Joint. It is a high-technical enterprise based on global technology and information.

Our universal joint ...[Read More]

Company Profile:

• Main Product:

  universal joint,cardan,u-joint,u joint,gimbal,corss joint,universal joint cross,steering joint,auto universal joint,uj cross,cardan joint,gimbal joint,joint cardan,car gimbal,universal joints,u joints,u-joints,driveshaft,yoke,steering

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Eastern Europe, Southeast Asia
