Pneumatic Outswing Sliding Bus Door Mechanism

    • Application: Yutong, Zhongtong,KingLon...
    • OEM No/Model: SOD100P
    • Market Type:After Market
    • EXW Price: USD 210
    • Other Price Term: FOB/CIF
    • Payment Terms: T/T
    • Samples: Charge
    • Minimum Order: 5Set/Sets

Quick Details

  • Material:

    Steel

  • Location:

    Left Front

  • Weight :

    26kg

  • Open the way:

    Shun Open

  • Feature:

    Anti-pinch and Emergency release

  • Open Direction:

    Left hand /Right hand

  • Used for:

    Coach/intercity Bus

  • Design:

    Depends on real vehicle

  • Place of Origin:

    Jiangsu

  • Samples:

    Charge

  • Sample Price:

    250

  • Delivery Time:

    7-10 Days After Drawing Confirmed

  • Packing:

    Wooden Cases Or As Customer Requirements

  • Delivery Port:

    Shanghai

  • Max. Production Capacity:

    2000 Sets Per Month

  • Export Ratio:

    21% - 30%

  • OE Experience:

    No

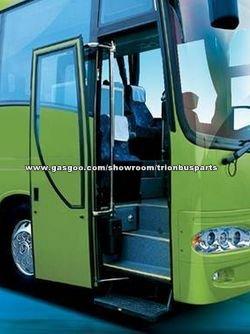

Product Name:Pneumatic Outswing Sliding Bus Door Mechanism

Pneumatic Outswing Sliding Bus Door Mechanism

Application

Yutong, Zhongtong,KingLong , Higer,BYD

Product Description:

OEM No/Model: SOD100P

Introduction:

Application: tour bus,intercity bus,coach.

System Component: Rotary actuator, Shaft assembly and Door panel assembly.

1) The actuator provides rotary motion and Lift-to-latch feature.

A double acting cylinder drives a splined shaft through a helical ball cage to provide rotary motion. When the door reaches the closed position, the actuator lifts the door shaft and door panel approximately 10mm,enabling latches on the door panel to engage mating wedges on the door jambs.The door panel is held closed as long as air pressure is applied the actuator.

2) The shaft assembly is designed for easy installation and maintenance.

3) The door panel can be specially designed to match with full bus design. It is made of aluminum alloy, which has the attributes of light weight, high strength and long life.

Operating principle:

1)Auto operation :When open or close switch is pushed, the 5-way 2-position solenoid valve will be actuated, which drives linear pneumatic cylinder move up and down. Through splined shaft,the linear motion transfer to rotation, which cause the door open or close.

2)Emergency release: In case of emergency, rotate the emergency valve 90 degree to release the air pressure. The door panel will drop as soon as air pressure in the cylinder is low. Push the door panel manually to open the door

3)Sensitive edge: In case the passenger or other items are clamped during the vehicle door closing, the door panel will be lifted and actuate the limit switch to reverse the motion to open the door.

Main Parameter:

Maximum torque in locked position (@90 psi) 122 ft-lbs
Recommended door shaft rotation 90 degree
Operating temperature -30°C to 80°C
Envelope size 5.51w x 12.50d x 4.53h
Operating pressure 90-125 psi
Minimum Life cycle 500,000
Locking mechanism Local wedge lock
Door closing time 3-5 seconds
Door opening time 3-5 seconds
