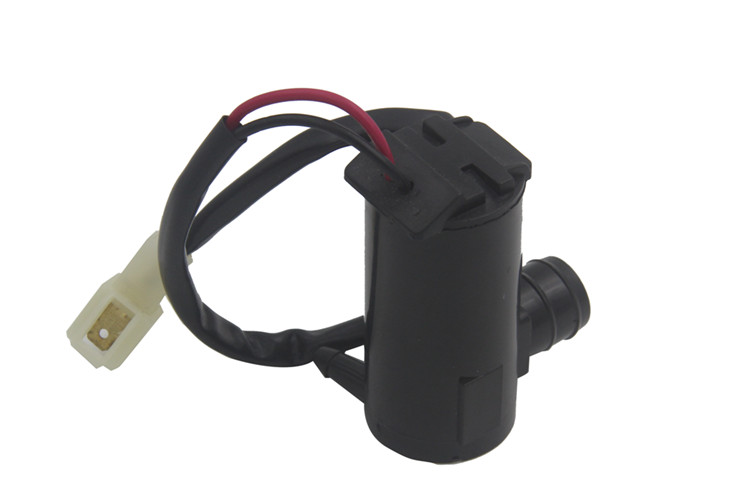

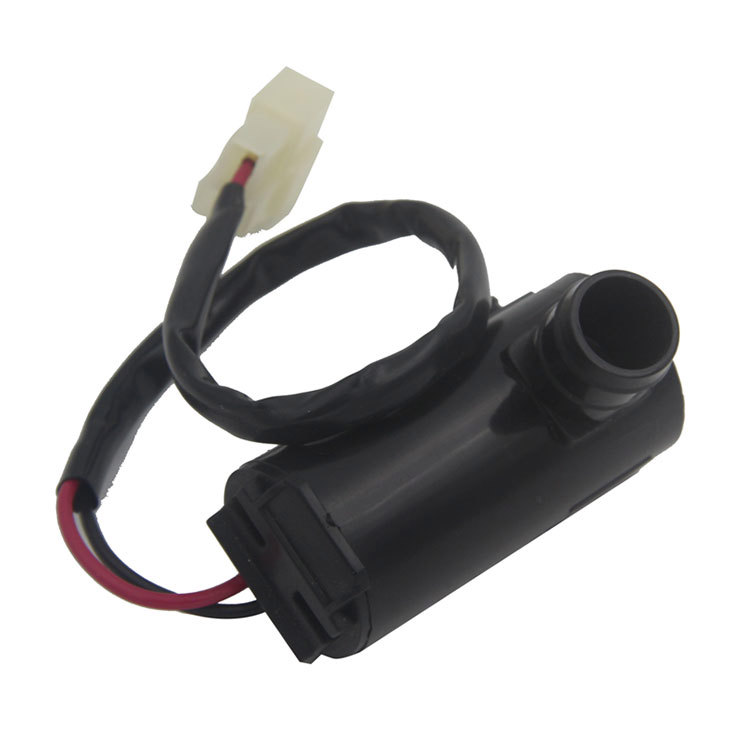

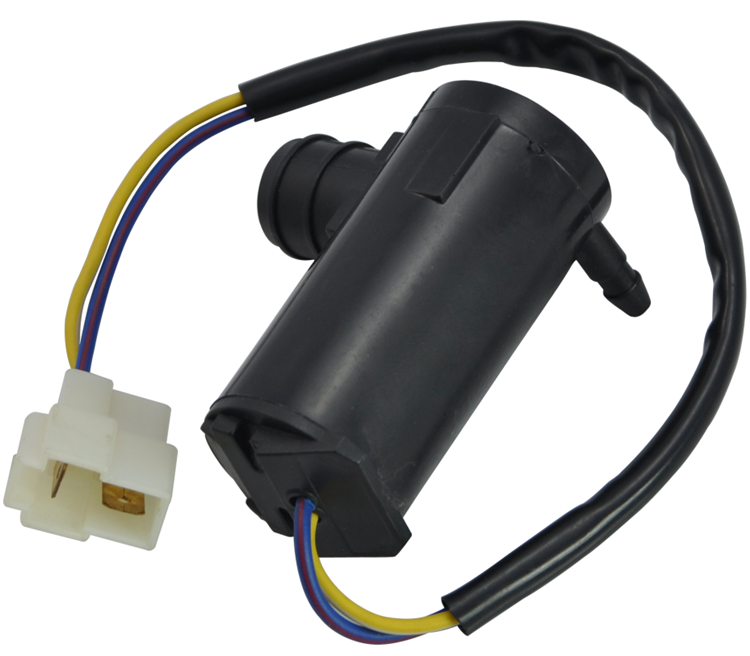

Product Description Best quality Different Models of car Windscreen for washer pump
Ford Washer Pump SPEC and Inspection Report |
||
Serial number |
YX-06412 |
|
Designation: |
Ford Windshield washer pump |
|
Part NO. |
1637624,6157734,6170854,7096130,7003177,6833495, 86AB17K624AA,86AB17K624BA,86AB17K624DA,93BB17K624AA,93BB17K624CA |
|
Car model |
FORD CONTOUR TAURUS ESCORT |
|
Weight |
0.0790KG |
|
|
||
Test type |
Routine test |
|
|
General specification |
Test characteristics |
1-1-Conditions |
Water : 50%water, 50%Antifreeze Ambient temp : 23 ±5 °c Test voltage : 13.5±0.1 v |
Water : 50%water, 50%Antifreeze Ambient temp : 23 ±5 °c Test voltage : 13.5± 0.1 v |
1-2-Consumed voltage |
13.5±0.1V |
13.5±0.1V |
1-3-No load current |
0.5~1.5A |
0.8~1.2A |
1-4-Max continuous Current |
≤3.8A |
3.2~3.7A |
1-5-Fluid pressure |
≥1.2kgf/cm2 |
≥1.6kgf/cm2 |
1-6-Flow Rate |
≥150ml/10s [with P=1bar (100kpa/1.01971kgf/cm2) ] |
≥560ml/10s[with P=1bar (100kpa/1.01971kgf/cm2) ] |
Test type |
Type test |
|
2-8 More |
More informaton, please contact us |
|
Special Specification |
|
|
Insulation resistance |
≥1MΩ(QC/ T548-1999) |
√ |
Type of Duty |
Short-time duty – duty type S2(GB755-2008) |
√Test Washer cycle: =30Sec, ON-3Sec, OFF-27Sec |
Cooling of method |
Accordance with IEC 34-6 |
IC411 seft ventilated |
Ingress Protection |
Accordance with IEC60034-5:1991 |
IP55 |
Warranty period of operation |
No detail |
2 years or 125000km car travelled |
Standard |
B262160,SAE J942,IEC 34-6, JIS D 5704, JIS D0203 M2, JIS D0203 R2,IEC60034-5:1991,QC/T548-1999,GB755-2008,(IEC,GB,JIS,NEC,IEEE) |
√ |
Ruian Yixuan Auto Parts Co., Ltd. -- is set research and development production as one of professional auto parts production enterprise, is located in China of automobile (Ryan) for automobile manufacturing hub (pond town) close to 104 national road. Our company since its inception, has been adhering to the quality for this first the concept of science and technology, we mainly deals in glass elevator, hydraulic motor a few si column of dozens of products, such as' do not seek the most, but beg best 'is our management principles, advanced production testing equipment, combined with strict inspection. To our clients will be one perfect products.' to be an honest man, to do a sincerity "is our creed, may with our sincerity, for your good, wish our sincerity, in exchange for your working!
Welcome new and old customers coming guidance. I want to believe -- -- -- -- -- I will be your best choice -- -- -- -- -- better choice!
Packaging & Shipping
1)One itom/one box/50PCS/CTN
2)Belt:Packing with 4 belts
3)160000~200000PCS/TEXU3605231*1(1)
