Quick Details

• Cold Style:

  Cold Style

• Place of Origin:

  China

• OE Experience:

  No

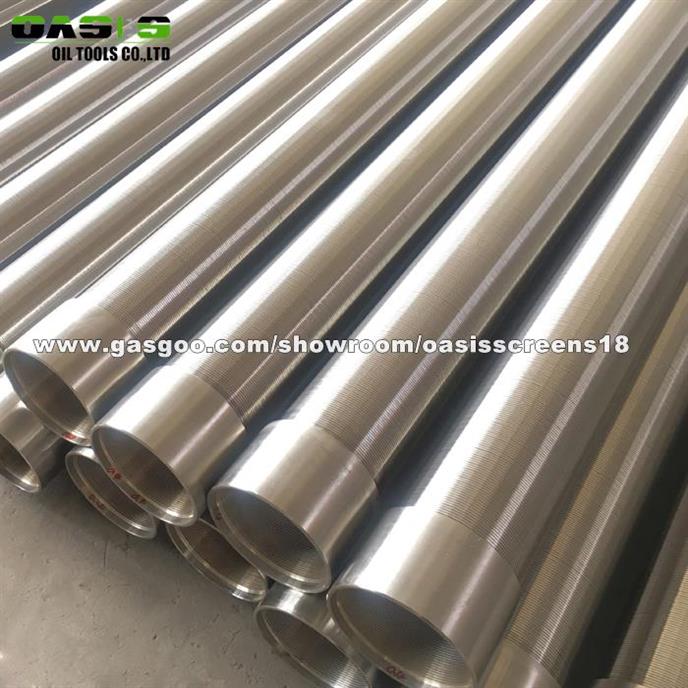

Product Name:Water Well Drilling V Wire Wrapped Water Well Screens

Water Well Drilling V Wire Wrapped Water Well Screens

Application

well drilling

Product Description:

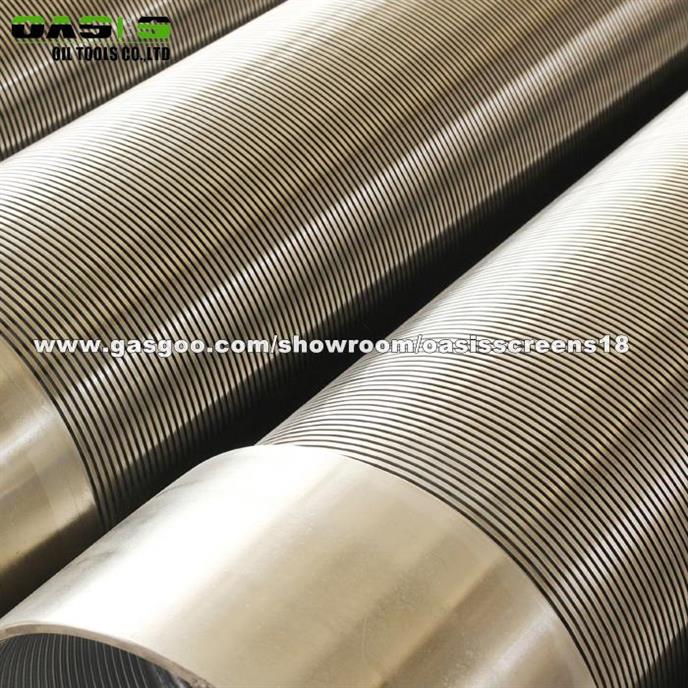

V wire wrapped Water well screens are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded.The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
Specifications of v wire wrapped water well screens
1. Slot size(mm): 0.1~3mm
2. Open area: up to 60%
3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with  anticorrosion coating, stainless steel (304, 316L etc)
4. Unit Length up to 6 meters
5. Diameter: ranging from 25 to 800mm
6. End connection: plain beveled ends for butt welding or threaded coupling  or flange

Oasis Oil Tools Co.,Ltd is a professional manufacturer of water well screens, Johnson screens, wire wrapped well screens, continuous slot vee shaped wire well screens, wedge wire screens , oil well screens, bridge slotted well screens, rod based well screens, pipe based well screens, API casing, ...[Read More]

Company Profile:

• Main Product:

  Water Well Screens

• Business Type:

  Manufacturer

• Current Export Market:

  South America, Eastern Asia, Southeast Asia, Mid East, Africa
