Product Description
truck parts accessories steel panel radiator design :
Part Name | OE No. | Size | Material | Rows |
Radiator | WG9725530010 | b770*h920*Rd50*Ld50mm | Aluminum | 2 |
Radiator | WG9725530010-1 | b780*h900*Rd55*Ld55mm | Copper | 4 |
Radiator | WG9719530010 | b780*h900*Rd55*Ld55mm | Copper | 4 |
Radiator | WG9725530011 | b770*h860*Rd55*Ld55mm | Aluminum | 1 |
Radiator | WG9725530120 | b780*h870*Rd55*Ld55mm | Aluminum | 1 |
Radiator | WG9719530231 | b770*h930*Rd55*Ld55mm | Aluminum | 1 |
Radiator | WG9719530270YT1 | b770*h970*Rd55*Ld55mm | Aluminum | 1 |
Radiator | WG9725530011 | b770*h860*Rd55*Ld55mm | Aluminum | 2 |
Radiator | WG9725530050 | b730*h980*Rd50*Ld50mm | Aluminum | 2 |
Radiator | WG9725530150 | b730*h1080*Rd50*Ld50mm | Aluminum | 2 |
Radiator | WG9719530231 | b780*h970*Rd55*Ld55mm | Aluminum | 2 |
Radiator | WG9918530001 | b750*h1050*Rd55*Ld55mm | Aluminum | 2 |
Radiator | WG9719530270 | b770*h970*Rd58*Ld58mm | Aluminum | 2 |
Radiator | WG9725530230 | b770*h970mm | Copper | |
Radiator | WG972553001011/2 | b765*h905*Rd45*Ld55mm | Aluminum | 2 |
Radiator | WG9719530230 | b770*h970*Rd50*Ld50mm | Aluminum | 2 |
Radiator | WG9725530129 | b770*h890*Rd55*Ld55mm | Aluminum | 2 |
Radiator | WG9925530106 | b750*h1020*Ld60*Rd60mm | Aluminum | 1 |

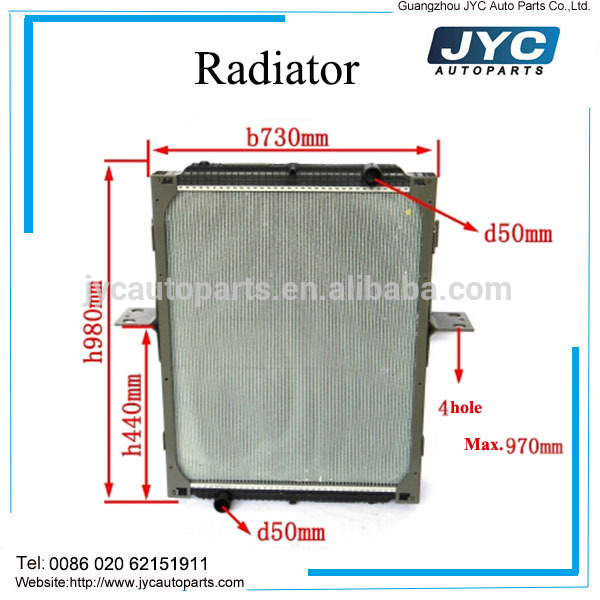

Pictures for Steel panel excavator heavy truck parts Radiator WG9725530050 :

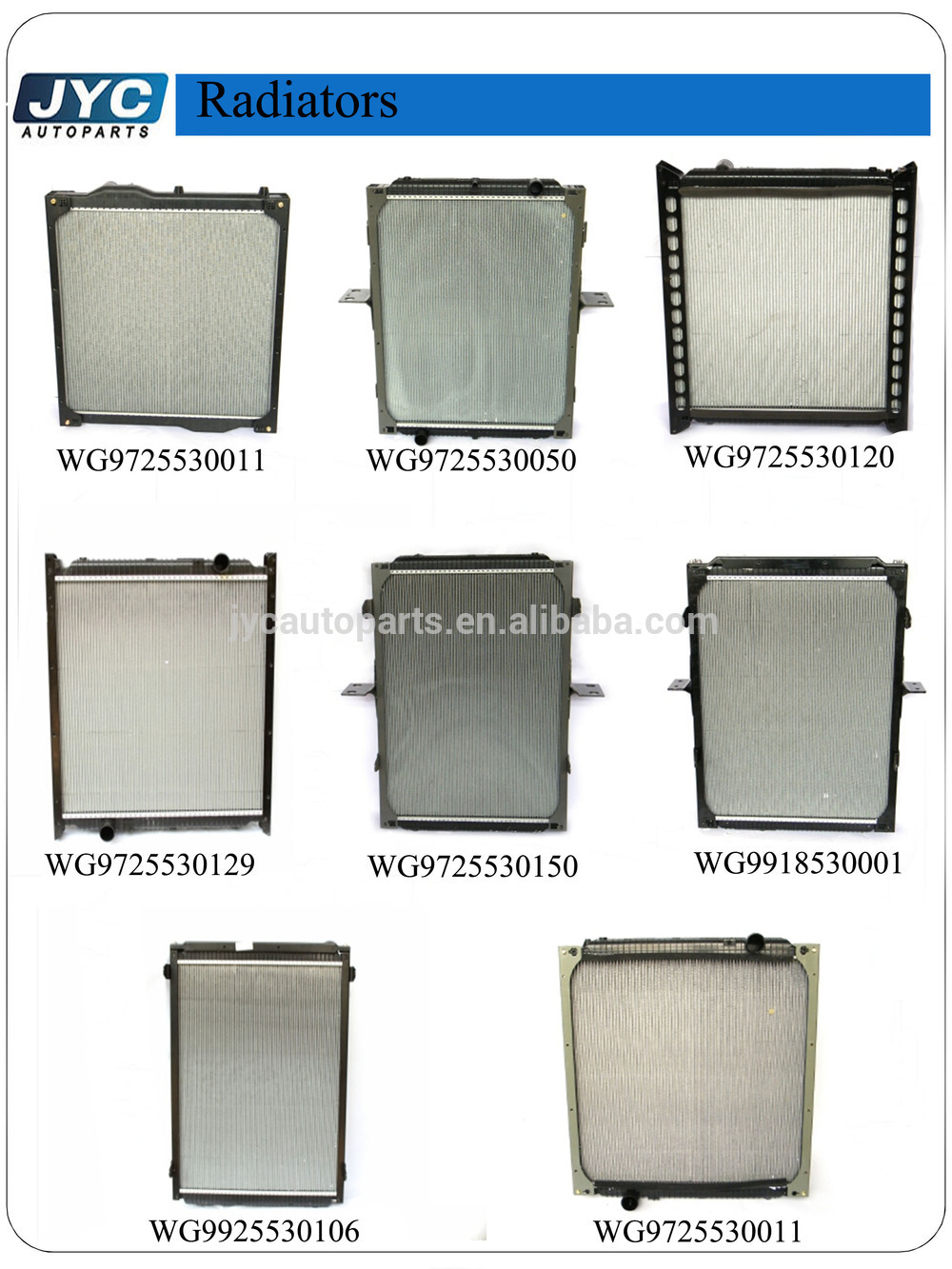

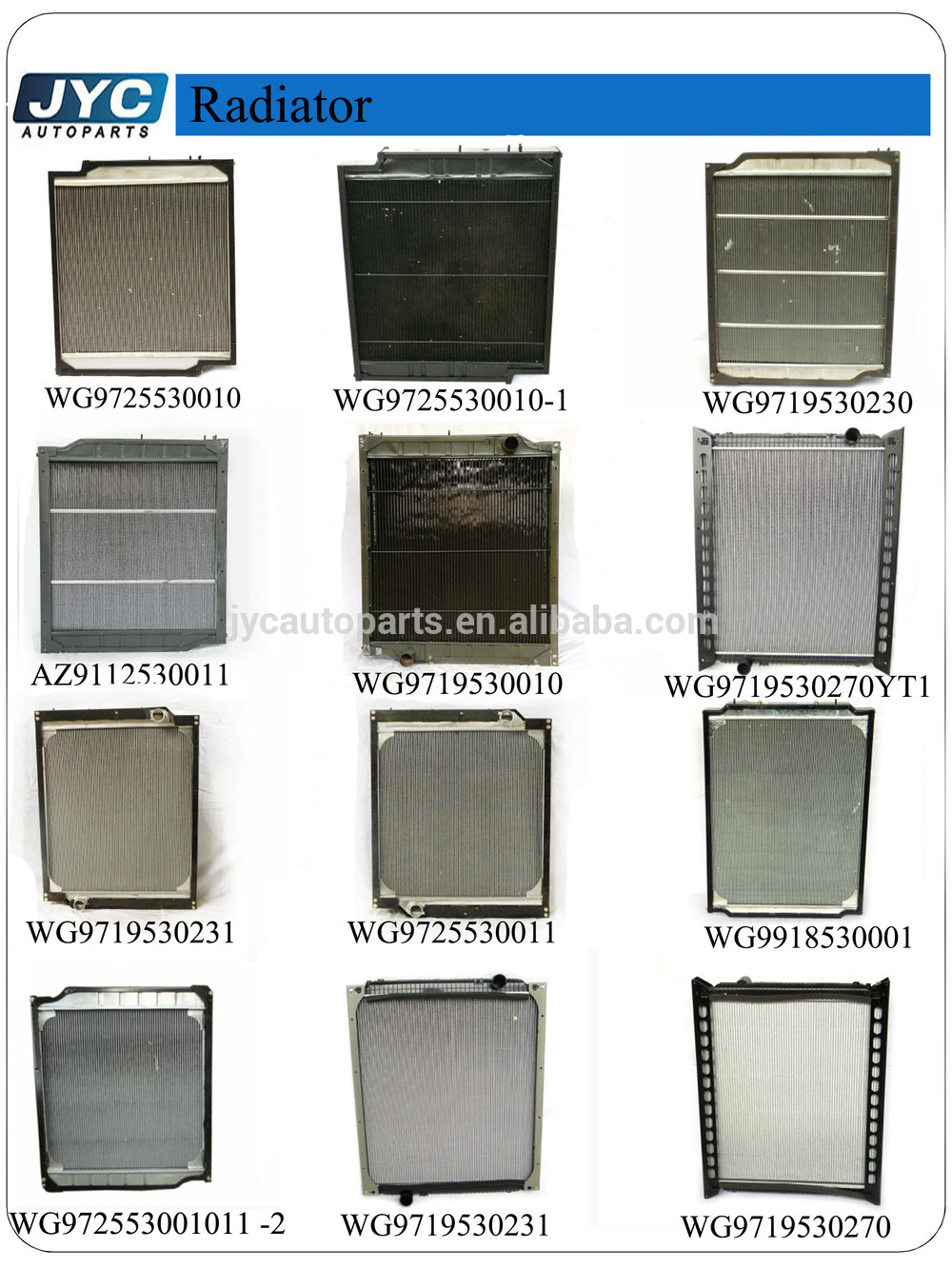

Different water tank Radiator Models for HOWO Truck and tractors:

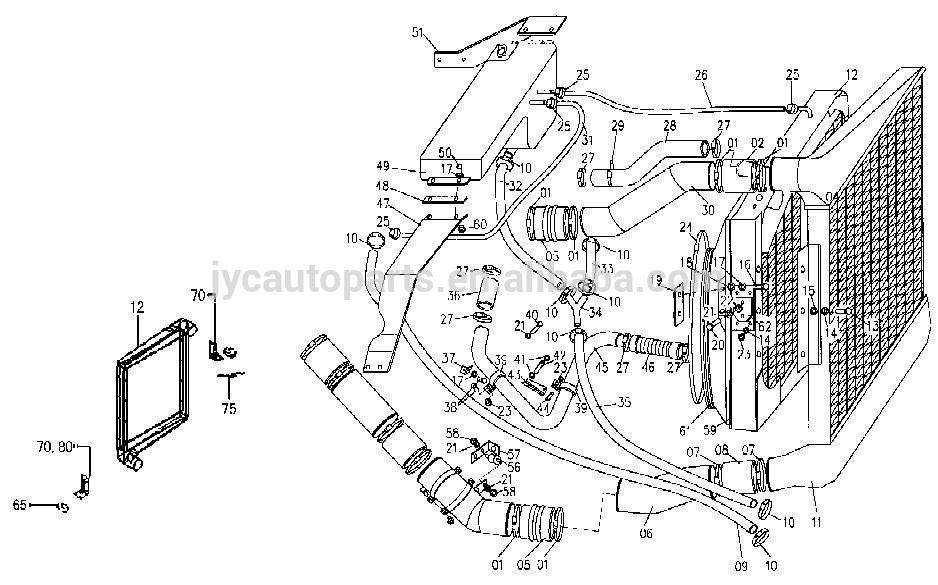

The parts with part no. for HOWO Truck cooling system including radiators:
No | Number of part | Applicability | Designation |
1 | 190003989315 | Clamp | |
2 | WG9719530108 | Hose | |
2 | WG9725538041 | HHR | Hose |
5 | WG9719530107 | Hose connector | |
5 | WG9725538043 | HHR | Hose |
8 | WG9725530070 | 62,87 | Hose |
8 | WG9719530108 | 47,69,82 | Hose |
8 | WG9725538042 | HHR | Hose |
9 | WG1620840060 | 47 | Hose |
9 | WG1600840029 | 62,87,69,HHR | Hose |
10 | 1900043989301 | Clamp | |
11 | WG9719530250 | 47 | Intercooler |
11 | WG9725530020 | 62,87,69 | Intercooler |
11 | WG9725530090 | 82 | Intercooler |
11 | WG9725538060 | HHR | Intercooler |
12 | WG9719530230 | 47 | Radiator |
12 | WG9719530010 | 62,87,69 | Radiator |
12 | WG9725537070 | 82 | Radiator |
12 | WG9725538050 | HHR | Radiator |
13 | Q150B0816 | Screw | |
14 | Q40008 | Washer | |
15 | Q41208 | Spring washer | |
16 | Q150B0820 | Screw | |
17 | Q40308 | Spring washer | |
18 | Q40108 | Washer | |
19 | 1780 530009 | Fastening sheet | |
20 | Q150B1018 | Screw | |
21 | Q40310 | Spring washer | |
22 | Q40110 | Washer | |
23 | Q33208 | Nut | |
24 | 190003980204 | Clamp | |
25 | 190003989300 | Clamp | |
26 | WG9114530138 | Hose | |
27 | AZ9003980010 | Clamp | |
28 | WG9719530111 | 62,87,69,47 | Inletwater pipe |
28 | WG9725537005 | 82 | Inletwater pipe |
28 | WG9725538008 | HHR | Inletwater pipe |
30 | AZ9719530122 | 62,87,69,47 | Outlet air pipe |
30 | WG9725537004 | 82 | Outlet air pipe |
30 | WG9725538044 | HHR | Outlet air pipe |
31 | WG9114530139 | Hose | |
32 | WG9716530307 | Hose | |
33 | WG9716530305 | Hose | |
34 | WG9716530510 | Junction pipe | |
35 | WG9112530468 | Hose | |
36 | WG9719530228 | Hose | |
45 | WG9719530212 | 47 | Outlet water pipe |
45 | WG9719530003 | 62,87,69 | Outlet water pipe |
45 | WG9719537007 | 82 | Outlet water pipe |
45 | WG9725538014 | HHR | Outlet water pipe |
46 | WG9719530227 | Hose | |
46 | WG9725537021 | 82 | Hose |
46 | WG9725538063 | HHR | Hose |
46a | AZ9716530505 | 47,82 | Bracket |
46a | AZ9716530521 | 62,87,69 | Bracket |
49 | WG9719530260 | Expansion tank | |
49 | AZ9112530333 | HHR | Expansion tank |
49a | AZ9725538099 | HHR | Bracket |
49b | AZ9725538125 | HHR | Bottom bracket |
61 | AZ9725538055 | HHR | Shroud |
61 | WG9725537001 | 82 | Shroud |
61 | AZ9719530132 | 47 | Shroud |
61 | AZ9725530401 | 87,62 | Shroud |
61 | AZ9725533037 | 69 | Shroud |
65 | AZ9719530272 | Rubber support | |
65a | Q40010 | Washer | |
65b | Q40310 | Spring washer | |
65c | Q33210 | Nut | |
70 | AZ9719530201 | Bracket left for radiator | |
70a | AZ9719530202 | Bracket right for radiator | |
70b | Q150B01816 | Screw | |
70c | Q40308 | Spring washer | |
75 | AZ9719530205 | Supporting plate left | |
75a | AZ9719530206 | Supporting plate right | |
75b | Q150B1025 | Screw | |
75c | Q340B10 | Nut | |
80 | AZ9725538065 | HHR | Top supporter for radiator |
80a | AZ9725538066 | HHR | Bottom supporter for radiator |
81 | AZ9725538073 | HHR | Left bracket for radiator |
85 | AZ9725538076 | HHR | Right bracket for radiator |

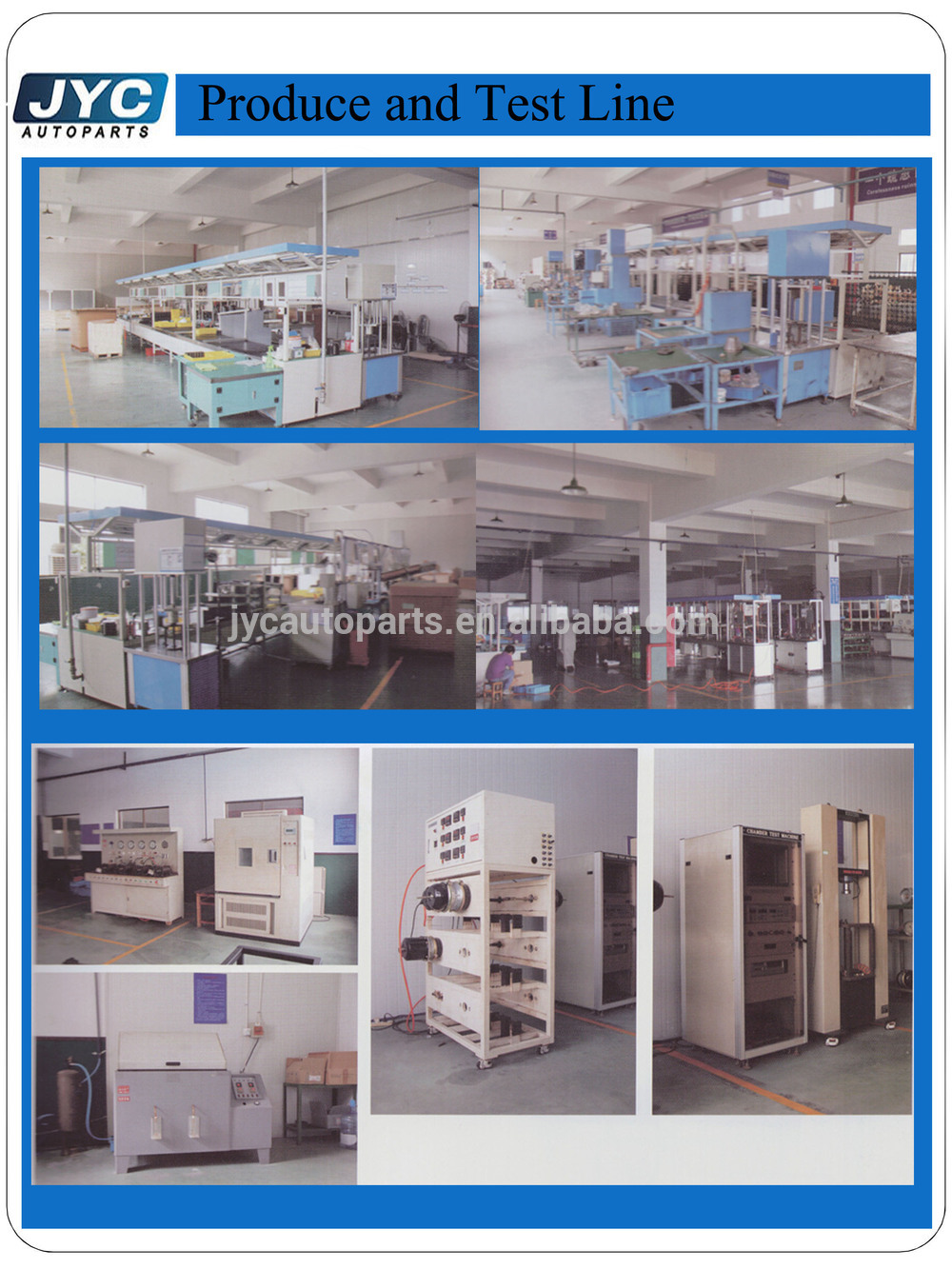

Production Flow
Truck Parts Producing Line for radiators:
Trade Shows
Truck parts trade fair:
Certifications
Truck parts certification:

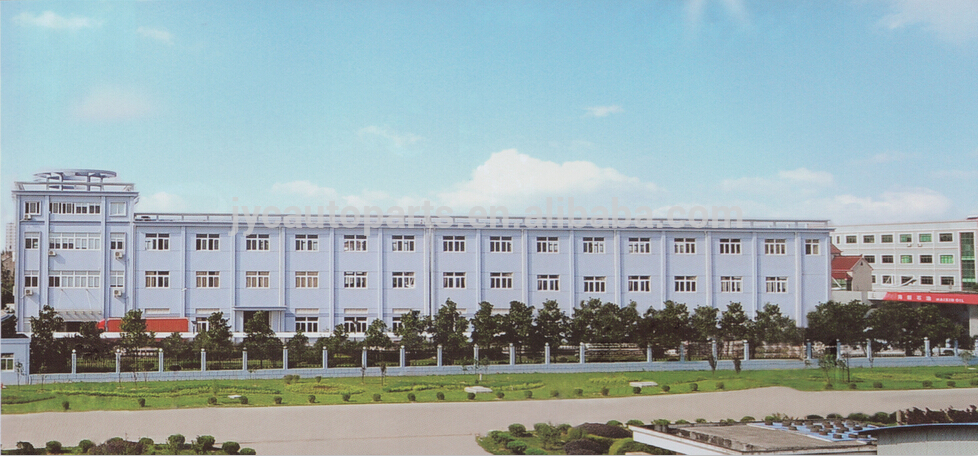

Company Information
Guangzhou JYC Auto Parts is specialized in Vehicle's spareparts since 2004.Which focus on light, medium and heavy commercial vehicle spare parts wholesaling and retailing.
Operation brands including: Commins,Perkins,Weichai,SC,YC,Sino-truck,HOWO,STR,JAC,IVECO, DONGFENG, FOTON, JMC, FAW, YUEJIN, DFAC, JMC, HAFEI, CAMC, FORLAND,
YUTONG, KINGLONG, CIMA.
OEM parts:Transmission shaft,Universal joint,Clutch,Clutch plate,Oil filter,Fuel filter,Air filter,brake disc and Etc.
The professional team, fast delivery, full product range, good quality, competitive price will be the reasons you chose to cooperate with us.
Our oversea market mainly in Algeria, Syria, Iran, Ukraine, Russia, Vietnam, Columbia, Malaysia,Philippine, South Africa, Saudi Arab,Mexico and other countries and regions.
Our Services1.Customer first,high quality Product will be offered;
2.Sample order is available;
3.Honesty and Open We are honest and open to share all ,sincerely hope long-term cooperation with you,so our price is lower than the whole market at the same qualtiy,to help you win the market in your country,hope to achieve the final goal of win-win !
4. Payment Motehods Support a wide range of payment methods,release your financial pressure!
5. Our packing is strong to protect the goods during transportation,and fast delivery after your order.
6. Professional Service Provide best service based on professional and sincerely attitude.
Packaging & Shipping
