Quick Details

• Rotating Speed r/min:

  2840

• BladeAngle:

  D1

• Place of Origin:

  China

• Samples:

  Not Available

• Delivery Time:

  5-10 Days After Your Payment

• Packing:

  Carton Box, Plastic Bags, Wooden Cases Or As Your Requirement

• Delivery Port:

  Qingdao,Ningbo,Shanghai,Shenzhen

• Max. Production Capacity:

  1000sets

• OE Experience:

  No

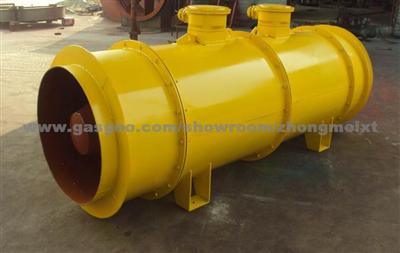

Product Name:Carpark Ventilation Fan

Carpark Ventilation Fan

Application

china coal

Product Description:

chinacoal12 m.chinacoalintl.com



16.Carpark Ventilation Fan Ventilation Fan, Carpark Ventilation Fan, Ventilation Fan
Product Introduction
carpark ventilation fan
 tunnel fan, carpark ventilation fan, wall fan
 SDS-Jet Tunnel Ventilation Fan for Construction
SDS jet flow fans is specially used for the tunnel lengthways ventilation system,
the fans is installed hanging on the top roof of tunnel or both sides, which do not effect the traffic,
noneed to build exhaust way. Low cost building , is very ideal ventilation fans.

Main Parameter
Main Parameter

Model	Motor Poles	Rotating Speed r/min	Blade Angle	blast volume  M3/min	Speed m/s	Axial  Thrust N	Motor Power KW	Thrust/ Power N/KW	Noise dB
40	2P	2840	D1	3.2	25.5	115	2.2	52.3	73
50	2P	2900	D1	6.5	33.2	285	7.5	38	75
56	2/4P	2930/1400	D1	8.6/4.1	35.1/16.8	385/76	12.5/2.8	35/79.1	75/63
63	2P	2930	D1	11.8	37.8	540	15	36	75
		2930	D2	10.5	33.6	430	11	39.1	73
		2900	D3	9.2	29.5	330	7.5	44	71
		2900	D4	8.2	26.4	260	5.5	47.3	68
	4P	1430	D1	5.5	17.6	129	2.2	58.6	63
80	4/6P	1460/960	D1	14.8/10	29.5/19.9	550/240	15.5/5.1	36.7/60.0	75/68
90	4P	1470	D1	21.1	33.2	870	22	39.5

Shandong China Coal Industrial&Mining Supplies Group Co.,Ltd (hereinafter referred to as china coal) is a group company, which is a collection of e-commerce, machinery manufacturing, software, research and development, modern logistics of large diversified industrial group. The group has 100 ...[Read More]
